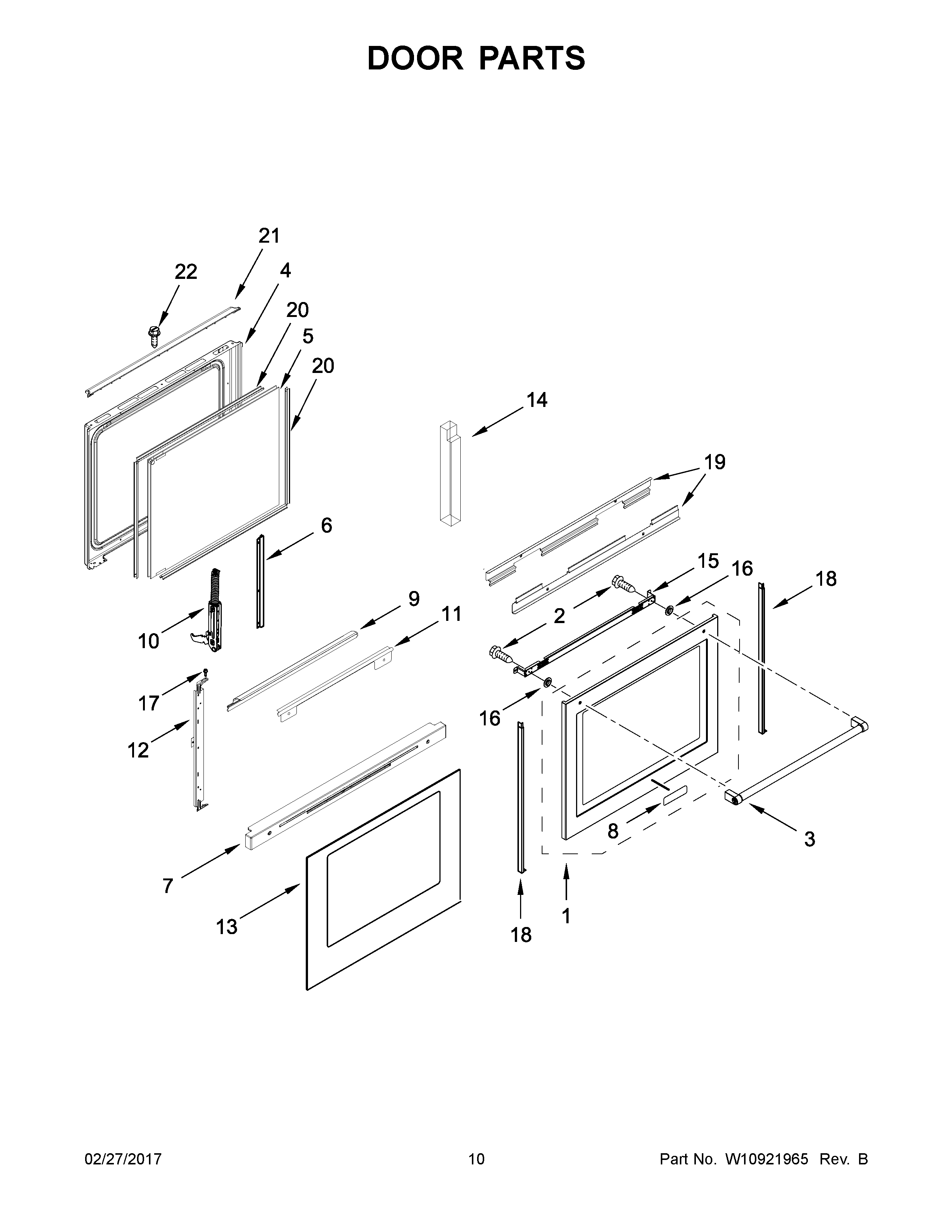

KFGG500EWH2 06 – DOOR PARTS

Products

Position	Product
1	W10906445 Whirlpool Door Glass
2	WPW10317886 Whirlpool Screw
3	W11104399 Whirlpool Door Handle
4	WPW10297318 Whirlpool Door Liner
4A	W10902192 Whirlpool Door Liner
5A	W11339500 Whirlpool Door Glass
5	WPW10300487 Whirlpool Door Glass
6A	WPW10333990 Whirlpool Glass Bracket
6	W10334031 Whirlpool Glass Bracket
7	W10294855 Whirlpool Vent Trim
7A	WPW10335331 Whirlpool Trim Vent
8	W10839793 Whirlpool Refrigerator Nameplate
9	W10294853 Whirlpool Mounting Bracket
10A	W11162113 Whirlpool Door Hinge
10	WPW10440013 Whirlpool Door Hinge
11	W10334004 Whirlpool Door Trim
11A	W10334003 Whirlpool Door Trim
12	W11116956 Whirlpool Support Bracket
13	W10804365 Whirlpool Outer Door Glass
13A	WPW10495962 Whirlpool Door Panel
14	W11688565 Whirlpool Insulation
14A	INSULATION, DOOR (STAINLESS MODELS)
14B	W11025151 Whirlpool Insulation
15	W10541911 Whirlpool Mounting Bracket
16	W11676355 Whirlpool Washer
17	WP355214 Whirlpool Screw
18	W11744483 Whirlpool Support
19	W10813140 Whirlpool Glass Bracket
20	W11673273 Whirlpool Spacer Glass
21	W10675397 Whirlpool Door Trim
22	W11245710 Whirlpool Refrigerator Screw
