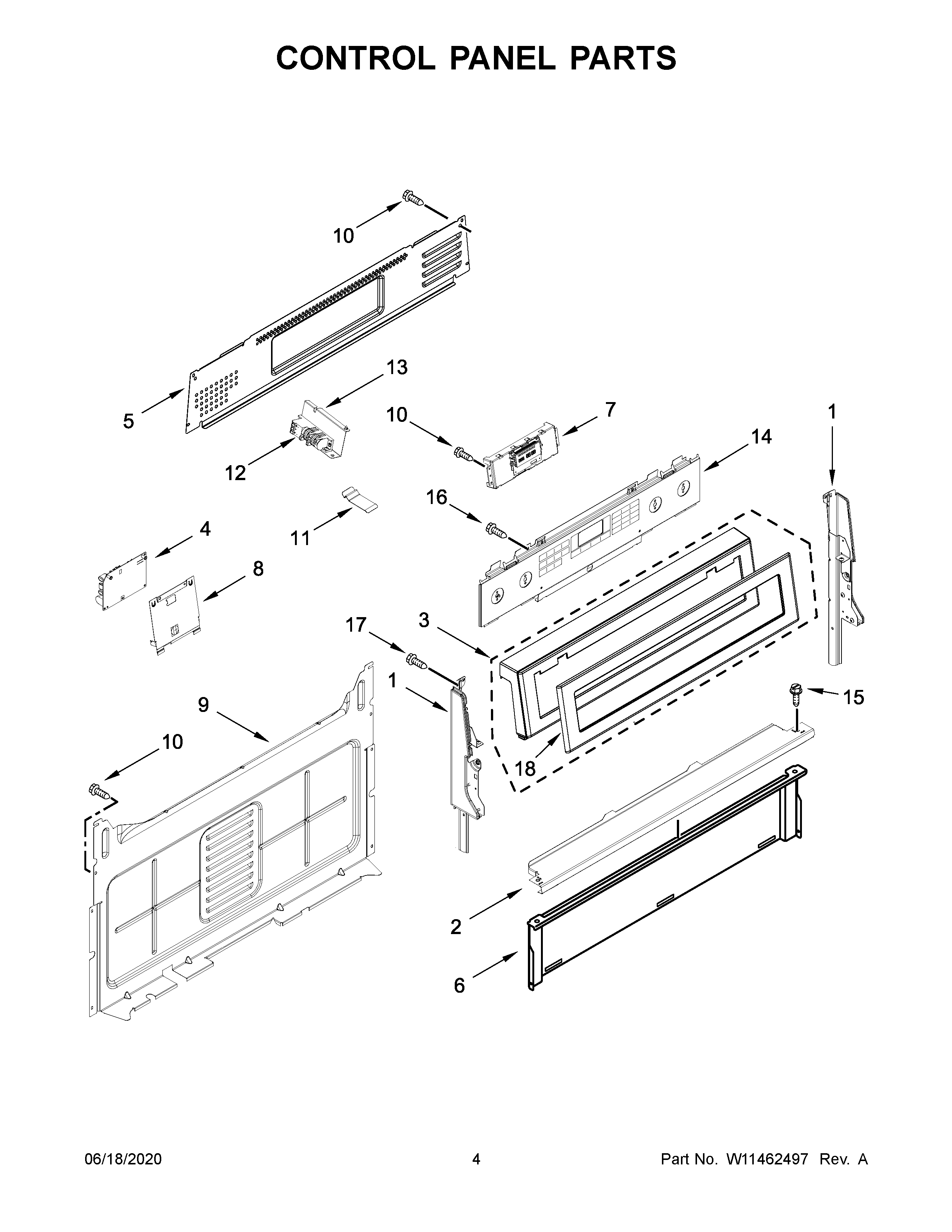

KFGG504KPS0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	W10516123 Whirlpool Mounting Bracket
3	W11132197 Whirlpool Control Panel
4	W11162730 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	W11088878-includeCORE Whirlpool W11088878 Refrigerator Electronic Control Board + Core
8	W10762981 Whirlpool Mounting Bracket Assembly
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	WPW10551614 Whirlpool Clip
12	WPW10475149 Whirlpool Spark Module
13	W10901176 Whirlpool Bracket Assembly
14	W11675300 Whirlpool Membrane Switch
15	WP3196175 Whirlpool Screw
16	W11245710 Whirlpool Refrigerator Screw
17	SCREW
18	CABINET (NOT A SERVICEABLE PART)
