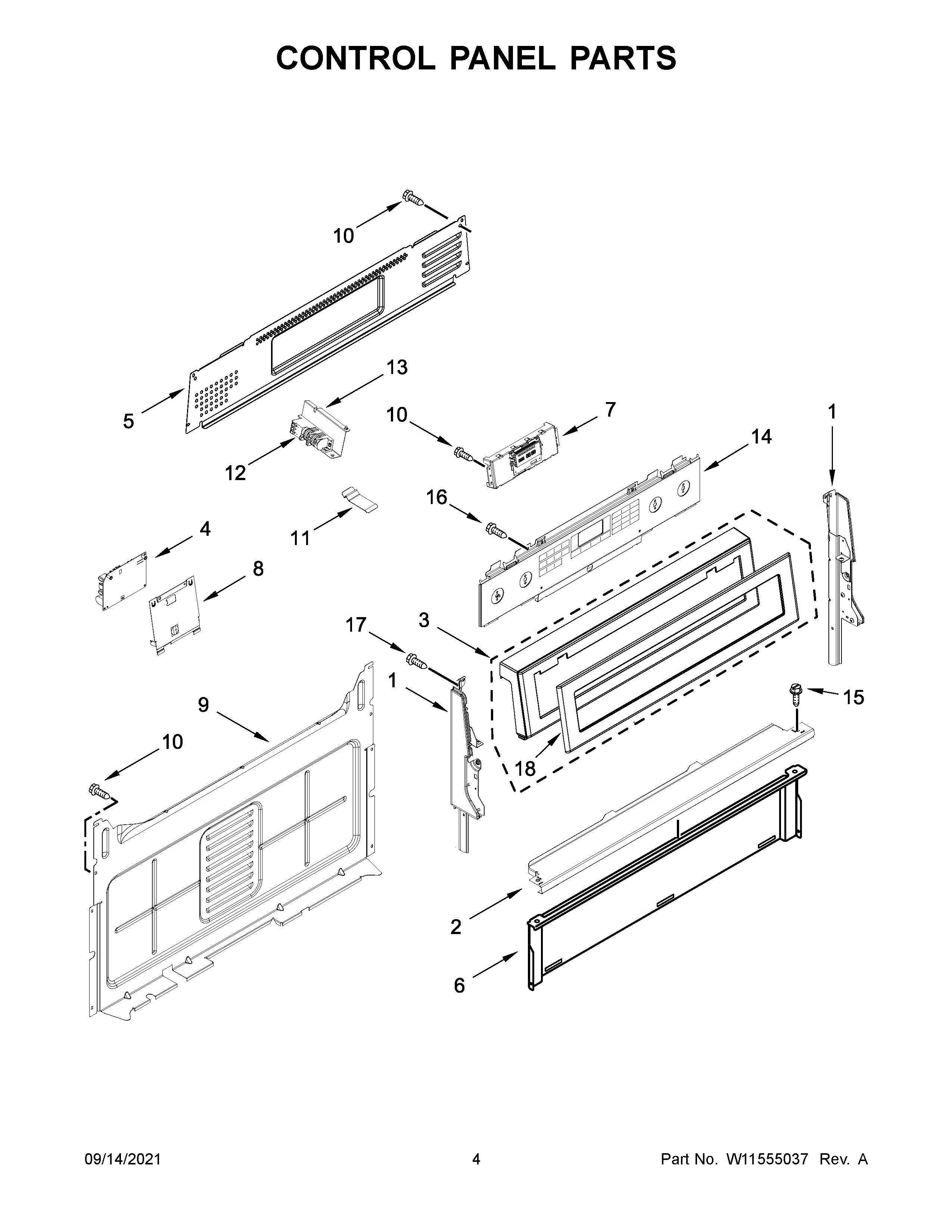

KFGG504KPS1 03 – CONTROL PANEL PARTS

KFGG504KPS1 03 – CONTROL PANEL PARTS

Written by

in

KFGG504KPS1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W10516123 Whirlpool Mounting Bracket
3W11132197 Whirlpool Control Panel
4W11162730 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7W11088878-includeCORE Whirlpool W11088878 Refrigerator Electronic Control Board + Core
8W10762981 Whirlpool Mounting Bracket Assembly
9W10184251 Whirlpool Rear Cover
10SCREW
11WPW10551614 Whirlpool Clip
12WPW10475149 Whirlpool Spark Module
13W10901176 Whirlpool Bracket Assembly
14W11675300 Whirlpool Membrane Switch
15WP3196175 Whirlpool Screw
16W11245710 Whirlpool Refrigerator Screw
17SCREW
18CABINET (NOT A SERVICEABLE PART)
