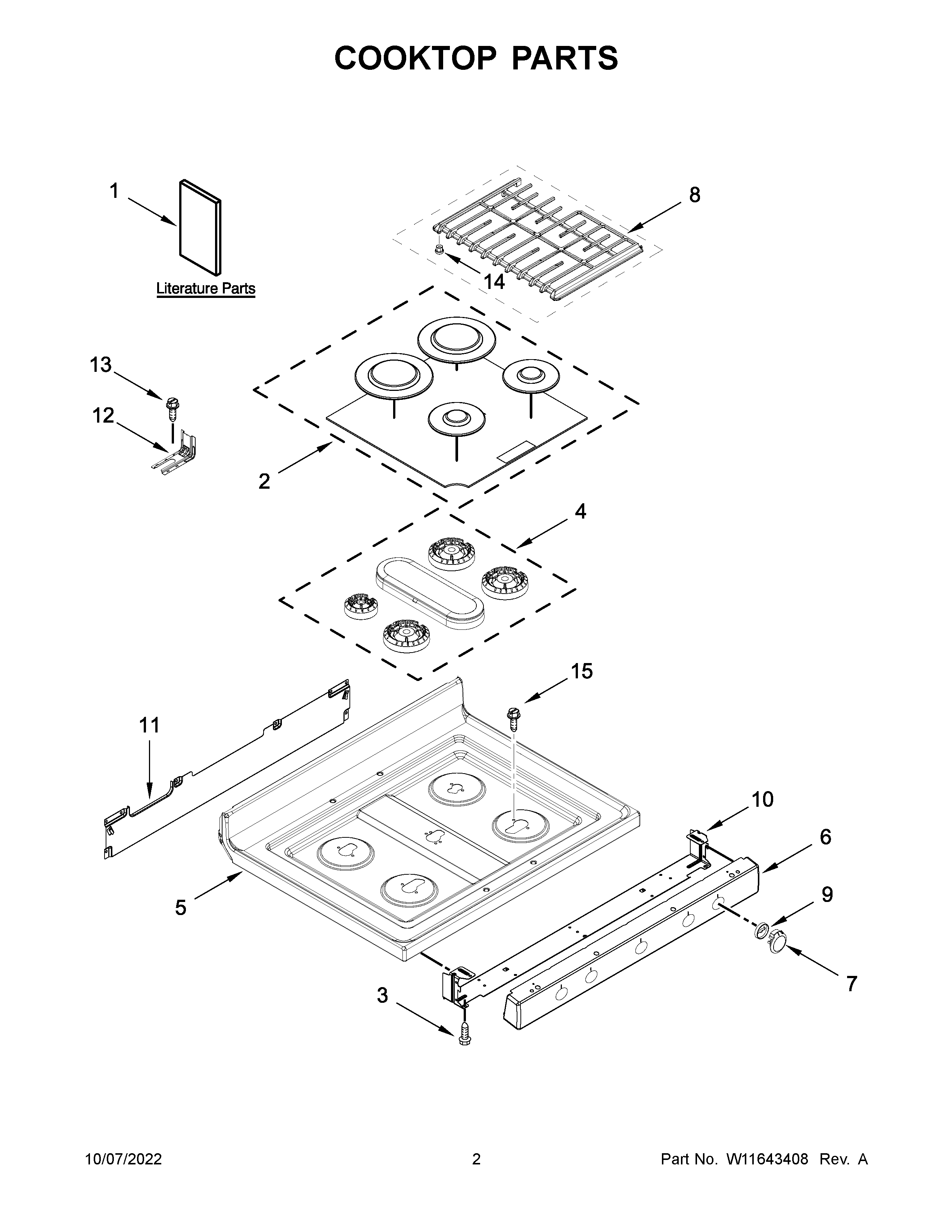

KFGG504KPS3 02 – COOKTOP PARTS
Written by
in
KFGG504KPS3 02 – COOKTOP PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11645866 Whirlpool Wire Harness
NI
W10334923 Whirlpool Clip
NI
3196896 Whirlpool Clip
NI
W11461074 Whirlpool Wire Harness
NI
3400964 Whirlpool Oven Clip
NI
16515 Whirlpool Clip
1B
QUICK START GUIDE
1
OWNERS MANUAL
1A
TECH SHEET
2
W11605759 Whirlpool Burner Cap
3
WPW10067840 Whirlpool Screw
4
W11662402 Whirlpool Range Burner Head
5
W11454367 Whirlpool Cooktop
6
W11028196 Whirlpool Manifold Panel
7
W11030413 Whirlpool Knob
8
W11381340 Whirlpool Grate Kit
9
W10814133 Whirlpool Knob Bezel
10
MANIFOLD PANEL BRACKET
11
REAR GAS COOKTOP BRACKET
12
W11447673 Whirlpool Range Tip Anchor
13
SCREW, ANTI-TIP KIT
14
W10919249 Whirlpool Burner Grate Foot
15
W11241230 Whirlpool Screw
←
