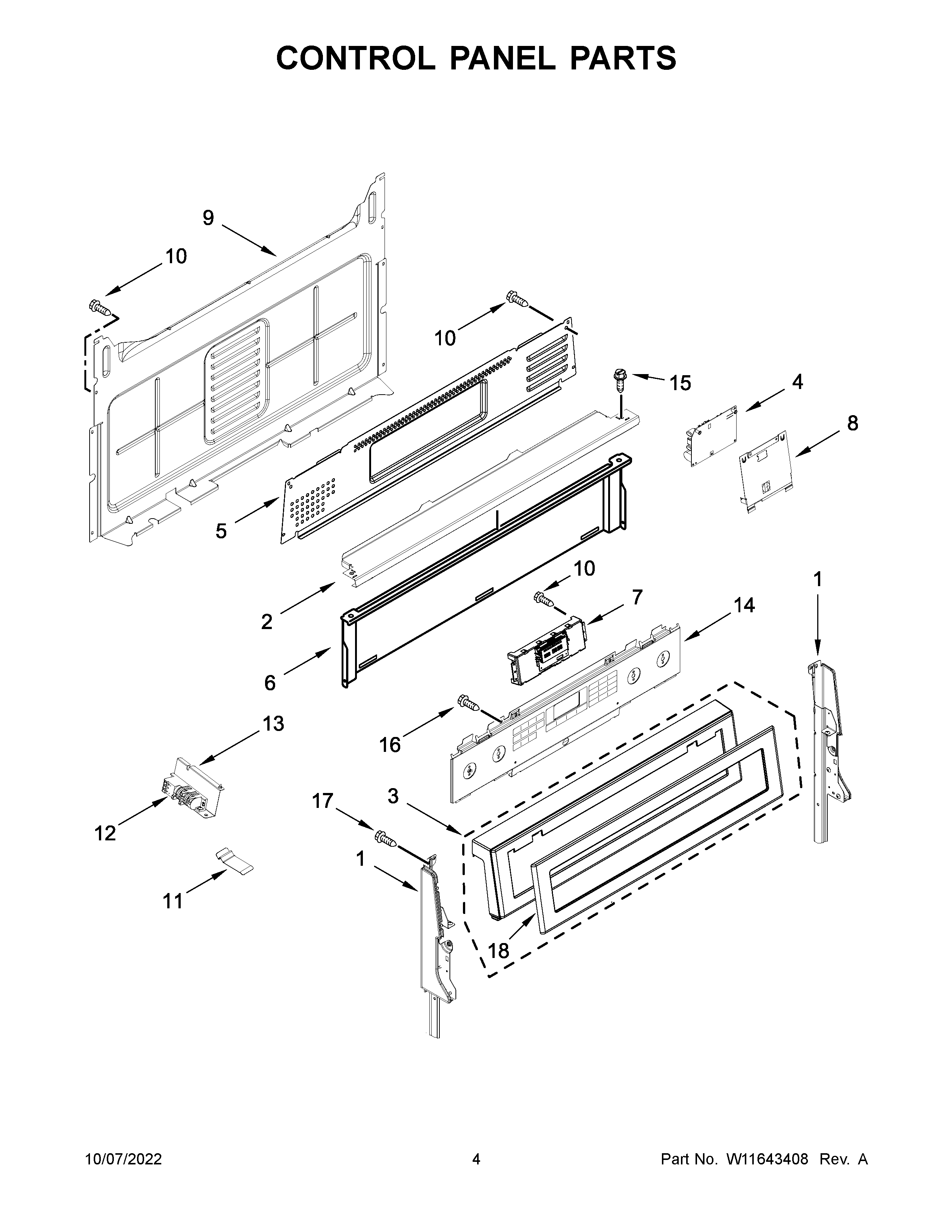

KFGG504KPS3 03 – CONTROL PANEL PARTS
Written by
in
KFGG504KPS3 03 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219664 Whirlpool Endcap Panel
1A
W11219665 Whirlpool Panel Endcap
2
W10516123 Whirlpool Mounting Bracket
3
W11132197 Whirlpool Control Panel
4
W11162730 Whirlpool Spark Module
5
W10198745 Whirlpool Rear Cover
6
W10192841 Whirlpool Heat Shield
7
W11652041 Whirlpool Electronic Control Board with Core
8
W10762981 Whirlpool Mounting Bracket Assembly
9
W10184251 Whirlpool Rear Cover
10
SCREW
11
WPW10551614 Whirlpool Clip
12
WPW10475149 Whirlpool Spark Module
13
W10901176 Whirlpool Bracket Assembly
14
W11675300 Whirlpool Membrane Switch
15
WP3196175 Whirlpool Screw
16
W11245710 Whirlpool Refrigerator Screw
17
SCREW
18
CABINET (NOT A SERVICEABLE PART)
←
