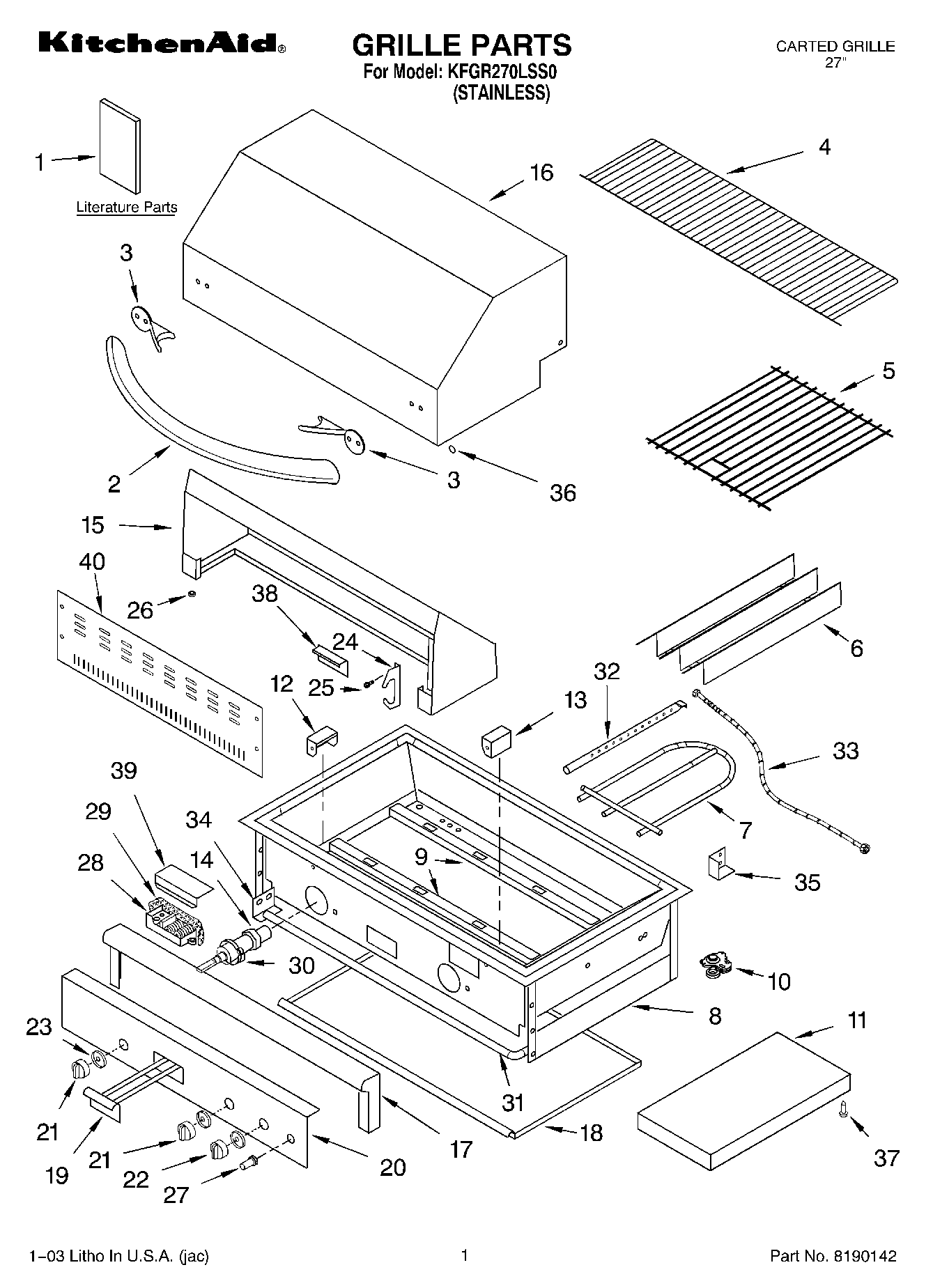

KFGR270LSS0 01 – GRILLE PARTS

Products

Position	Product
1	Literature Parts (U & C Guide / Instructions, Installation)
2	Handle, Hood
3	Insulator, Handle
4	Shelf, Warmer
5	Grate (2)
6	Plate, Sear (2)
7	Burner, Main (2)
8	Fire Box Asy (Not Serviced)
9	Hanger, Burner (2)
10	Regulator w/Hose
11	Shelf, Side (2)
12	Left Collector Box
13	Right Collectr Box
14	Orifice (Main Burner (2))
14	Orifice (Smoker)
15	Hood Asy, Rear
16	Hood Asy, Front
17	Bullnose Asy
18	Tray, Drip
19	Tray Asy, Smoker
20	Panel, Front
21	Knob, Burner (4)
22	Knob, Smoker/IR
23	Bezel (6)
24	Saddle, Spit (2)
25	WPW10068250 Whirlpool Dishwasher Screw
26	Spacer, Hood (2)
27	Switch, Igniter
28	Module, Spark (4 Spark)
29	Insulation, Module
30	Valve, Burner (Smoker / IR)
30	Valve, Burner (Main (4))
31	Manifold
32	Burner, Smoker
33	Flex Tube, Smoker
34	Bracket, Manifold
35	Stop, Hood (Left)
35	Stop, Hood (Right)
36	Plug, Hole (4)
37	Bumper (6)
38	Cover, Rear
39	Shield, Igniter
40	W/O Brake
40	WPL 8190164
40	WPL 8190132
40	WPL ARI87143A7
40	WPL ARI87144A5
40	WPL 8190133
40	WPL 8190453
40	Handle, Door (2)
40	Screw – Casters
40	WPL 8190372
40	WP67006715 Whirlpool Refrigerator Screw
40	Tank, LP
40	W/Brake
40	WPL 8190140
40	WPW10139757 Whirlpool Nut
40	Clip, J Type 8-32
40	Logo, Kitchenaid
40	Cover, Bullnose
40	Latch-Magnetic
40	Screw 1/4-20X3/8SS
40	Screw 18X1/2 Pan
40	Nut, Combinatio
40	WPL 8190123
40	WPL 8190124
40	WPL 8190125
40	WPL 8190156
40	WPL 8190457
40	Elbow 3/8 to 1/2
40	Wire, Battery
40	WP2004333 Whirlpool Refrigerator Nut
