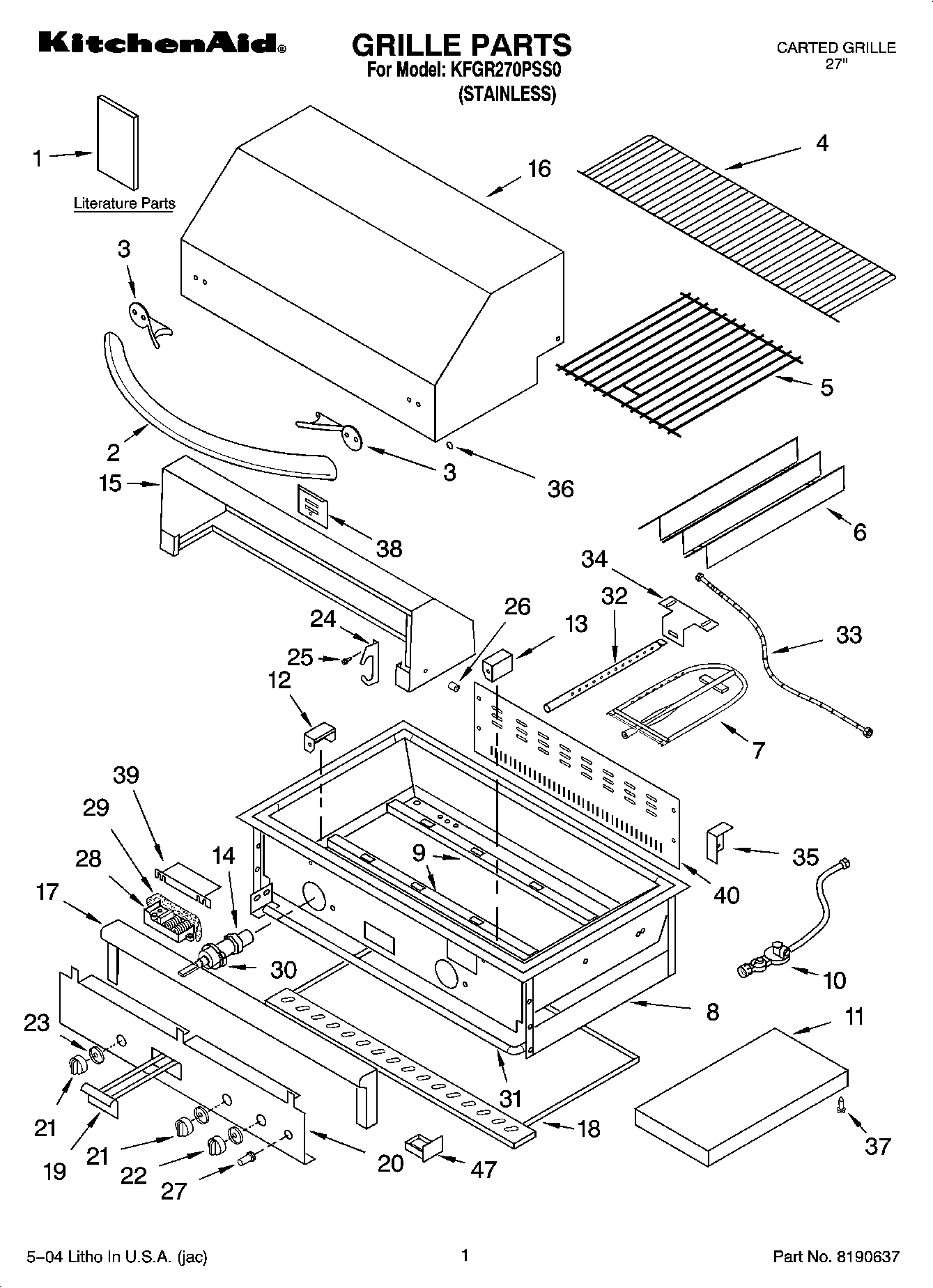

KFGR270PSS0 01 – GRILLE PARTS

Products

Position	Product
1	U & C Guide / Instructions, Installation (KBGN292PSS0)
2	Handle, Hood
3	Insulator, Handle
4	Shelf, Warmer
5	Grate (2)
6	Plate, Sear (2)
7	Burner, Main (2)
8	Fire Box Asy (Not Serviced)
9	Hanger, Burner (2)
10	Regulator w/Hose
11	Shelf, Side (2)
12	Left Collector Box
13	Right Collectr Box
14	Orifice (Main Burner (2))
14	Orifice (Smoker)
15	Hood Asy, Rear
16	Hood Asy, Front
17	Bullnose Asy
18	Tray, Drip
19	Tray Asy, Smoker
20	Panel, Front
21	Knob, Burner (4)
22	Knob, Smoker/IR
23	Bezel (6)
24	Saddle, Spit (2)
25	WPW10068250 Whirlpool Dishwasher Screw
26	Spacer, Hood (2)
27	Switch, Igniter
28	Module, Spark (4 Spark)
29	Insulation, Module
30	Valve, Burner (Main (4))
30	Valve, Burner (Smoker / IR)
31	Manifold
32	Burner, Smoker
33	Flex Tube, Smoker
34	WPL 8190454
35	Stop, Hood (Right)
35	Stop, Hood (Left)
36	Plug, Hole (4)
37	Bumper (6)
38	Cover, Rear
39	Shield, Igniter
40	WPL 8190164
47	WP67006715 Whirlpool Refrigerator Screw
47	Elbow 3/8 to 1/2
47	WPL 8190133
47	WPL 8190132
47	W/Brake
47	Clip, J Type 8-32
47	WPW10139757 Whirlpool Nut
47	WP2004333 Whirlpool Refrigerator Nut
47	WPL 8190628
47	WPL ARI87146A7
47	WPL ARI87147A6
47	WP8281196 Whirlpool Screw
47	WP488130 Whirlpool Air Conditioner Nut
47	W/O Brake
47	Screw – Casters
47	Handle, Door (2)
47	WPL 8190457
47	WPL 8190125
47	WPL 8190124
47	WPL 8190123
47	Tray, Battery
47	Wire, Battery
47	WPL 8190140
47	Nut, Combinatio
47	Screw 18X1/2 Pan
47	Screw 1/4-20X3/8SS
47	Latch-Magnetic
47	Cover, Bullnose
47	Logo, Kitchenaid
47	WPL 8190453
