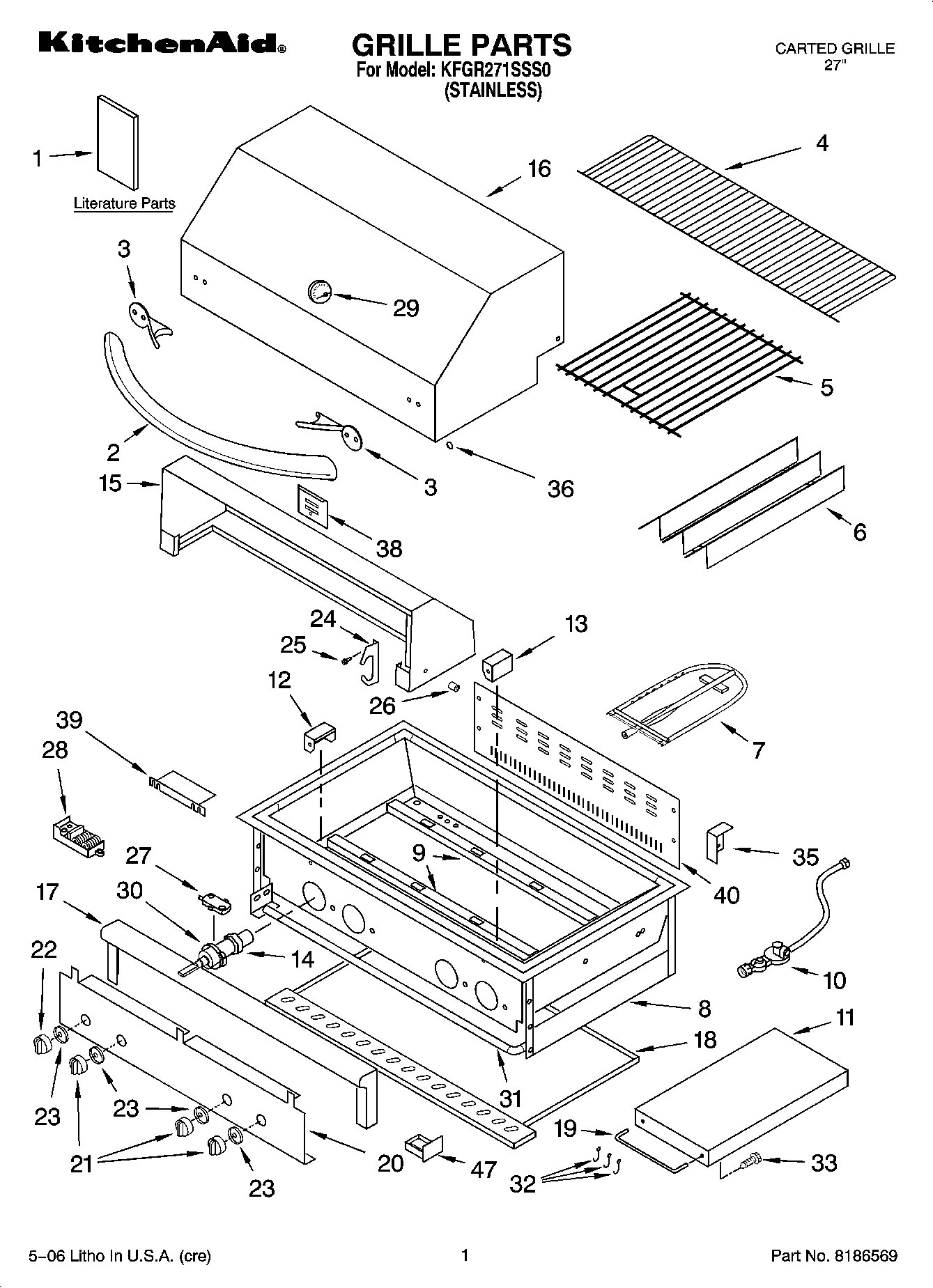

KFGR271SSS0 01 – GRILLE PARTS

Products

Position	Product
1	U & C Guide / Instructions, Installation
2	Handle, Hood
3	Insulator, Handle
4	Shelf, Warmer
5	Grate (2)
6	Plate, Sear (2)
7	Burner, Main (2)
8	Fire Box Asy (Not Serviced)
9	Hanger, Burner (2)
10	Regulator w/Hose
11	Shelf, Side (Left)
11	Shelf, Side (Right)
12	Left Collector Box
13	Right Collectr Box
14	Orifice (Main Burner (3))
15	Hood Asy, Rear
16	Hood Asy, Front
17	Bullnose Asy
18	Tray, Drip
19	Bar, Tool
20	Panel, Front
21	Knob, Burner (2)
22	Knob, Rotisserie
23	Bezel (3)
24	Saddle, Spit (2)
25	WPW10068250 Whirlpool Dishwasher Screw
26	Spacer, Hood (2)
28	Module, Spark
29	Thermostat
30	Valve, Burner (Rotisserie/IR)
30	Valve, Burner (Main (2))
31	MANIFOLD
32	Hook
35	Stop, Hood (Right)
35	Stop, Hood (Left)
36	Plug, Hole (4)
38	Cover, Rear
39	Shield, Igniter
40	Panel, Access
47	Tray, Battery Assy
47	WPL 8190132
47	Handle, Door (2)
47	WPL ARI87149A7
47	W/O Brake
47	Screw - Casters
47	W/Brake
47	Cover, Bullnose
47	WPL 8190133
47	Electrode Kit
47	WPL 8190140
47	WP8281196 Whirlpool Screw
47	WP2004333 Whirlpool Refrigerator Nut
47	WPW10139757 Whirlpool Nut
47	Clip, J Type 8-32
47	Latch-Magnetic
47	Screw 18X1/2 Pan
47	Nut, Combinatio
47	WPL 8190123
47	WPL 8190124
47	WPL 8190125
47	WPL 8190457
47	WP67006715 Whirlpool Refrigerator Screw
47	Logo, Kitchenaid
47	Washer, Hood Hndle
47	Elbow 3/8 to 1/2
47	Screw 1/4-20X3/8SS
47	WP488130 Whirlpool Air Conditioner Nut
