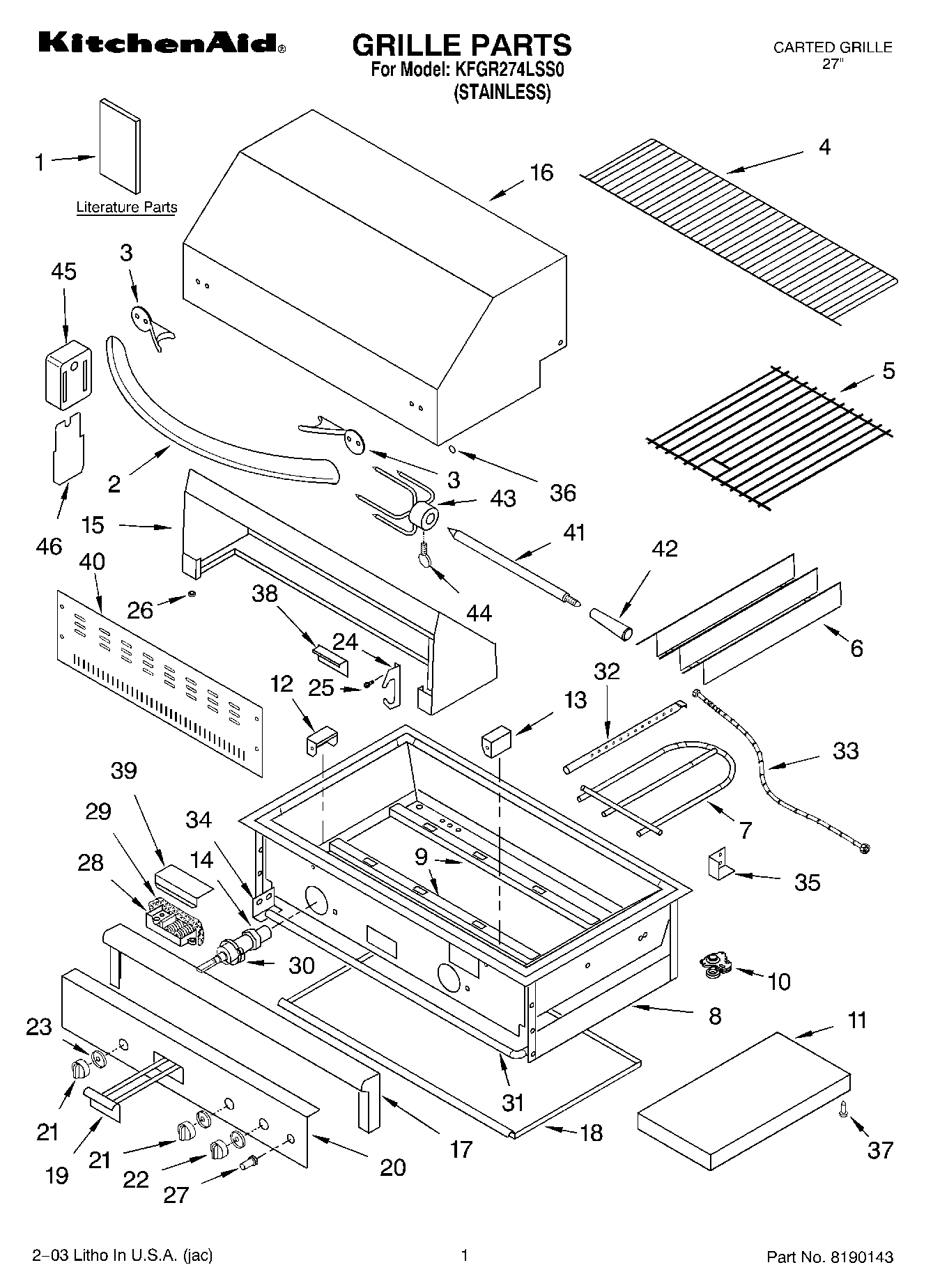

KFGR274LSS0 01 – GRILLE PARTS

Products

Position	Product
1	Literature Parts (U & C Guide / Instructions, Installation)
2	Handle, Hood
3	Insulator, Handle
4	Shelf, Warmer
5	Grate (2)
6	Plate, Sear (2)
7	Burner, Main (2)
8	Fire Box Asy (Not Serviced)
9	Hanger, Burner (2)
10	Regulator w/Hose
11	Shelf, Side (2)
12	Left Collector Box
13	Right Collectr Box
14	Orifice (Smoker)
14	Orifice (Infared)
14	Orifice (Main Burner (2))
15	Hood Asy, Rear
16	Hood Asy, Front
17	Bullnose Asy
18	Tray, Drip
19	Tray Asy, Smoker
20	Panel, Front
21	Knob, Burner (4)
22	Knob, Smoker/IR
23	Bezel (6)
24	Saddle, Spit (2)
25	WPW10068250 Whirlpool Dishwasher Screw
26	Spacer, Hood (2)
27	Switch, Igniter
28	Module, Spark (4 Spark)
29	Insulation, Module
30	Valve, Burner (Main (4))
30	Valve, Burner (Smoker / IR)
31	Manifold
32	Burner, Smoker
33	Flex Tube, Smoker
34	Bracket, Manifold
35	Stop, Hood (Right)
35	Stop, Hood (Left)
36	Plug, Hole (4)
37	Bumper (6)
38	Cover, Rear
39	Shield, Igniter
40	WPL 8190164
41	Rod, Spit
42	Handle, Rotisserie
43	Skewer (2)
44	Screw, Thumb (2)
45	Motor, Rotisserie
46	Cover, Bullnose
46	WPL 8190166
46	WPL ARI87152A6
46	Screw 1/4-20X3/8SS
46	Logo, Kitchenaid
46	Latch-Magnetic
46	WP2004333 Whirlpool Refrigerator Nut
46	Clip, J Type 8-32
46	WPL 8190133
46	WPL 8190132
46	Tank, LP
46	W/Brake
46	W/O Brake
46	Screw – Casters
46	Handle, Door (2)
46	WPL 8190453
46	WPL ARI87151A5
46	WPW10139757 Whirlpool Nut
46	Electrode Kit
46	Screw 18X1/2 Pan
46	WPL 8190125
46	WPL 8190156
46	WP67006715 Whirlpool Refrigerator Screw
46	WPL 8190158
46	WPL 8190161
46	WPL 8190162
46	WPL 8190165
46	WPL 8190457
46	WPL 8190167
46	Elbow 3/8 to 1/2
46	WPL 8190124
46	Nut, Combinatio
46	WPL 8190123
46	WPL 8190174
46	Thermocouple, IR
46	WPL 8190140
46	Wire, Battery
46	Bracket, Motor
46	WPL 8190178
46	WPL 8190173
46	WPL 8190169
