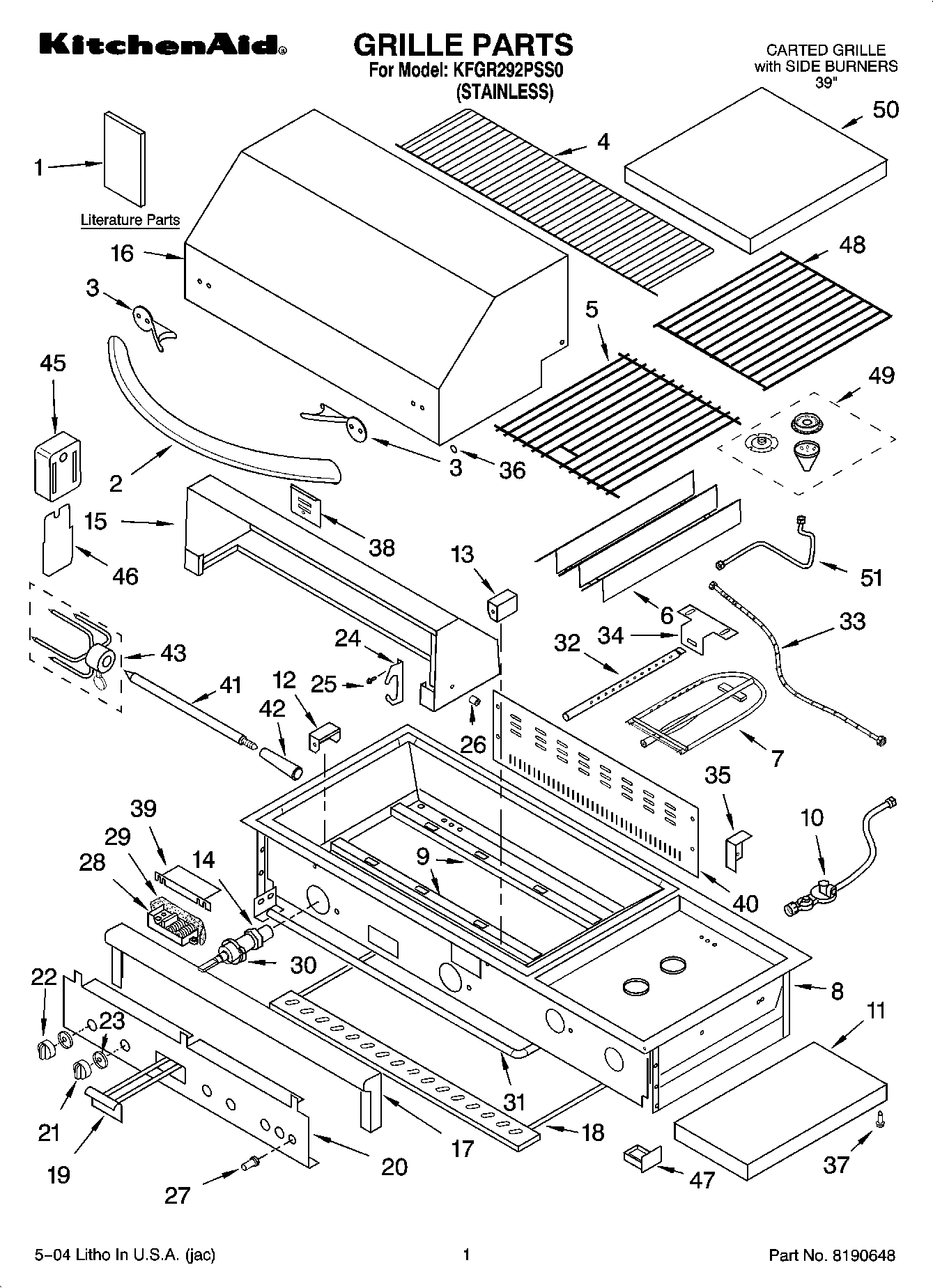

KFGR292PSS0 01 – GRILLE PARTS

Products

Position	Product
1	U & C Guide / Instructions, Installation (KBGN292PSS0)
2	Handle, Hood
3	Insulator, Handle
4	Shelf, Warmer
5	Grate (2)
6	Plate, Sear (2)
7	Burner, Main (2)
8	Fire Box Asy (Not Serviced)
9	Hanger, Burner (2)
10	Regulator w/Hose
11	Shelf, Side (2)
12	Left Collector Box
13	Right Collectr Box
14	Orifices – LP Kit
15	Hood Asy, Rear
16	Hood Asy, Front
17	Bullnose Asy
18	Tray, Drip
19	Tray Asy, Smoker
20	Panel, Front
21	Knob, Burner (4)
22	Knob, Smoker/IR
23	Bezel (6)
24	Saddle, Spit (2)
25	WPW10068250 Whirlpool Dishwasher Screw
26	Spacer, Hood (2)
27	Switch, Igniter (Main)
27	Switch, Igniter (SideBurner)
28	Module, Spark (4 Spark)
28	Module, Spark (2 Spark)
29	Insulation, Module
30	Valve, Burner (Main (4))
30	Valve, Burner (SideBurner (2))
30	Valve, Burner (Smoker / IR)
31	MANIFOLD
32	Burner, Smoker
33	Flex Tube, Smoker
34	WPL 8190454
35	Stop, Hood (Right)
35	Stop, Hood (Left)
36	Plug, Hole (4)
37	Bumper (6)
38	Cover, Rear
39	Shield, Igniter
40	Panel, Access
41	Rod, Spit
42	Handle, Rotisserie
43	Skewer (2)
45	Motor, Rotisserie
46	Bracket, Motor
47	Tray, Battery
48	Grate, SideBurner
49	Burner Assembly (2)
50	Cover, SideBurner
51	Handle, Door (2)
51	Nut, Combinatio
51	WP3400814 Whirlpool Screw
51	Thermocouple, IR
51	WP2004333 Whirlpool Refrigerator Nut
51	WP8281196 Whirlpool Screw
51	WPL ARI87161A3
51	WP488130 Whirlpool Air Conditioner Nut
51	WP308685 Whirlpool Microwave Screw
51	WPL ARI87160A2
51	WPL 8190488
51	WPL 8190487
51	W/Brake
51	W/O Brake
51	Screw – Casters
51	Cover, Bullnose
51	WPW10139757 Whirlpool Nut
51	Clip, J Type 8-32
51	WPL 8190460
51	WPL 8190158
51	WPL 8190457
51	WPL 8190161
51	WPL 8190162
51	WPL 8190431
51	WPL 8190165
51	WPL 8190629
51	WPL 8190167
51	WPL 8190178
51	WPL 8190644
51	WPL 8190125
51	WP67006715 Whirlpool Refrigerator Screw
51	Logo, Kitchenaid
51	Latch-Magnetic
51	Screw 1/4-20X3/8SS
51	Screw 18X1/2 Pan
51	Elbow 3/8 to 1/2
51	WPL 8190123
51	WPL 8190528
51	WPL 8190124
51	WPL 8190525
51	WPL 8190517
51	WPL 8190516
51	WPL 8190169
