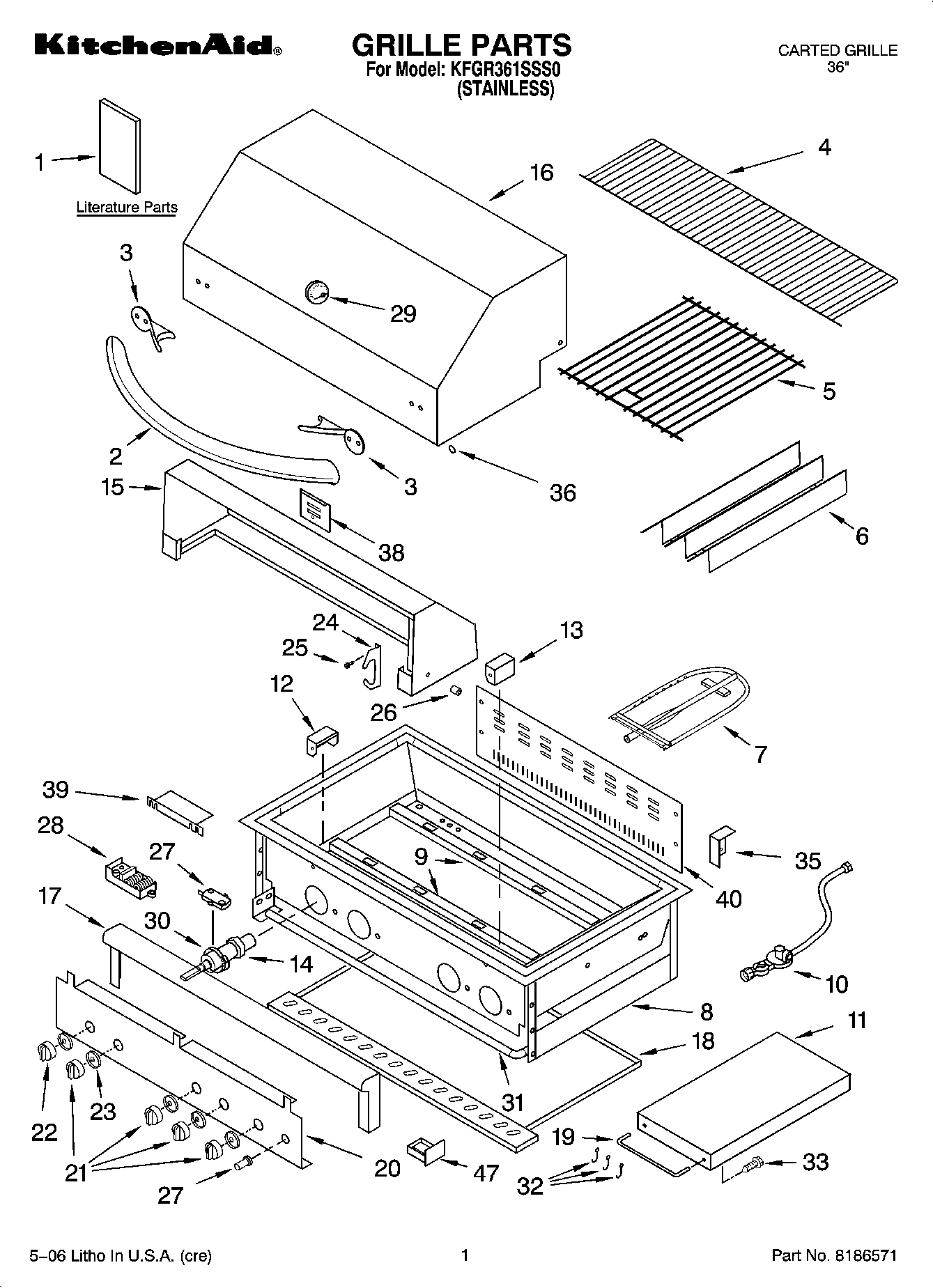

KFGR361SSS0 01 – GRILLE PARTS

KFGR361SSS0 01 – GRILLE PARTS

Written by

in

KFGR361SSS0 01 – GRILLE PARTS

Products

Position	Product
1	U & C Guide / Instructions, Installation
2	Handle, Hood
3	Insulator, Handle
4	Shelf, Warmer
5	Grate (2)
6	Plate, Sear (2)
7	Burner, Main (2)
8	Fire Box Asy (Not Serviced)
9	Hanger, Burner (2)
10	Regulator w/Hose
11	Shelf, Side (Right)
11	Shelf, Side (Left)
12	Left Collector Box
13	Right Collectr Box
14	Orifice (Main Burner (3))
14	Orifice (IR)
15	Hood Asy, Rear
16	Hood Asy, Front
17	Bullnose Asy
18	Tray, Drip
19	Bar, Tool
20	Panel, Front
21	Knob, Burner (2)
22	Knob, Rotisserie
23	Bezel (3)
24	Saddle, Spit (2)
25	WPW10068250 Whirlpool Dishwasher Screw
26	Spacer, Hood (2)
27	Switch, Igniter
28	Module, Spark
29	Thermostat
30	Valve, Burner (Rotisserie/IR)
30	Valve, Burner (Main (2))
31	MANIFOLD
32	Hook
35	Stop, Hood (Right)
35	Stop, Hood (Left)
36	Plug, Hole (4)
38	Cover, Rear
39	Shield, Igniter
40	Panel, Access
47	W/O Brake
47	Electrode/Wire Kit
47	Cabinet Door-Right
47	WPL ARI87163A1
47	Infared Weld Asy
47	Screw – Casters
47	Cabinet Door-Left
47	Handle, Door (2)
47	W/Brake
47	Elbow 3/8 to 1/2
47	Tray, Battery Assy
47	Cover, Bullnose
47	WPL 8190124
47	WPL 8190123
47	Nut, Combinatio
47	Screw 18X1/2 Pan
47	Latch-Magnetic
47	Clip, J Type 8-32
47	WPW10139757 Whirlpool Nut
47	WP2004333 Whirlpool Refrigerator Nut
47	WP8281196 Whirlpool Screw
47	WP120393 Whirlpool Washer Assembly
47	WP488130 Whirlpool Air Conditioner Nut
47	WPL 8190125
47	WPL 8190158
47	WPL 8190169
47	WPL 8190174
47	WPL 8190140
47	Screw 1/4-20X3/8SS
47	WPL 8190173
47	Thermocouple, IR
47	Elbow, Orifice (W/O Hood & Pin)
47	Cover, IR Igntr
47	Bracket, IR Igntr
47	Washer, Hood Hndle
47	Logo, Kitchenaid
47	WPL 8190178
47	WP67006715 Whirlpool Refrigerator Screw
