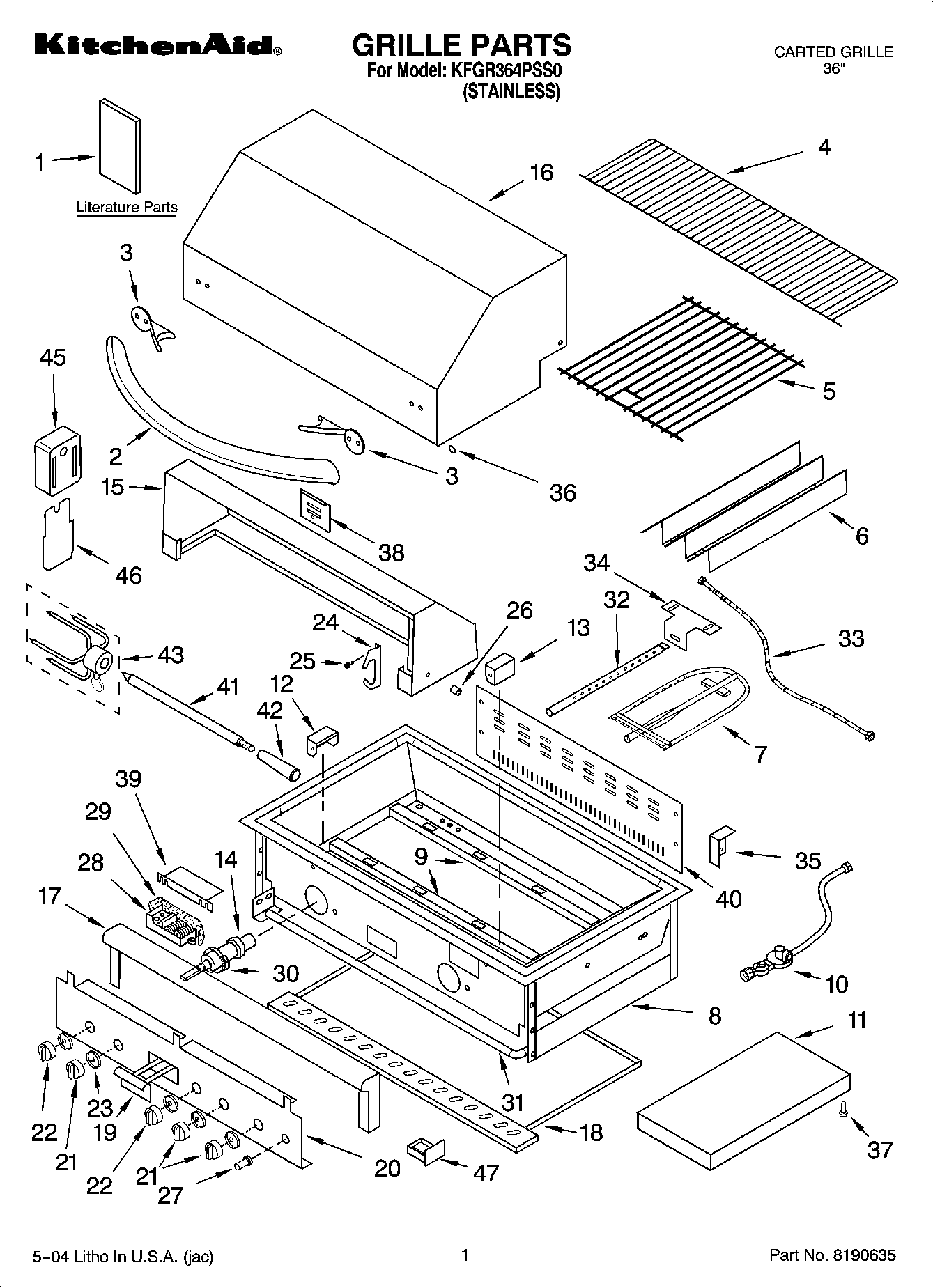

KFGR364PSS0 01 – GRILLE PARTS

KFGR364PSS0 01 – GRILLE PARTS

Written by

in

KFGR364PSS0 01 – GRILLE PARTS

Products

PositionProduct
1U & C Guide / Instructions, Installation (KBGN292PSS0)
2Handle, Hood
3Insulator, Handle
4Shelf, Warmer
5Grate (2)
6Plate, Sear (2)
7Burner, Main (2)
8Fire Box Asy (Not Serviced)
9Hanger, Burner (2)
10Regulator w/Hose
11Shelf, Side (2)
12Left Collector Box
13Right Collectr Box
14Orifice (Smoker)
14Orifice (Main Burner (3))
14Orifice (Infared)
15Hood Asy, Rear
16Hood Asy, Front
17Bullnose Asy
18Tray, Drip
19Tray Asy, Smoker
20Panel, Front
21Knob, Burner (4)
22Knob, Smoker/IR
23Bezel (6)
24Saddle, Spit (2)
25WPW10068250 Whirlpool Dishwasher Screw
26Spacer, Hood (2)
27Switch, Igniter
28Module, Spark (2 Spark)
28Module, Spark (4 Spark)
29Insulation, Module
30Valve, Burner (Smoker / IR)
30Valve, Burner (Main (4))
31MANIFOLD
32Burner, Smoker
33Flex Tube, Smoker
34WPL 8190454
35Stop, Hood (Left)
35Stop, Hood (Right)
36Plug, Hole (4)
37Bumper (6)
38Cover, Rear
39Shield, Igniter
40Panel, Access
41Rod, Spit
42Handle, Rotisserie
43Skewer (2)
45Motor, Rotisserie
46Bracket, Motor
47Latch-Magnetic
47Cabinet Door-Right
47Screw 1/4-20X3/8SS
47WPW10139757 Whirlpool Nut
47Cover, Bullnose
47Logo, Kitchenaid
47Clip, J Type 8-32
47WP2004333 Whirlpool Refrigerator Nut
47Handle, Door (2)
47Screw – Casters
47W/O Brake
47W/Brake
47Cabinet Door-Left
47WP8281196 Whirlpool Screw
47WP488130 Whirlpool Air Conditioner Nut
47WPL ARI87168A5
47WPL ARI87169A8
47Screw 18X1/2 Pan
47Nut, Combinatio
47WPL 8190123
47WPL 8190178
47WPL 8190169
47WPL 8190167
47WPL 8190173
47Tray, Battery
47Wire, Battery
47WPL 8190140
47Thermocouple, IR
47WPL 8190174
47WPL 8190165
47WPL 8190162
47WPL 8190192
47WPL 8190640
47WPL 8190158
47WP67006715 Whirlpool Refrigerator Screw
47WPL 8190125
47WPL 8190124
47Elbow 3/8 to 1/2
