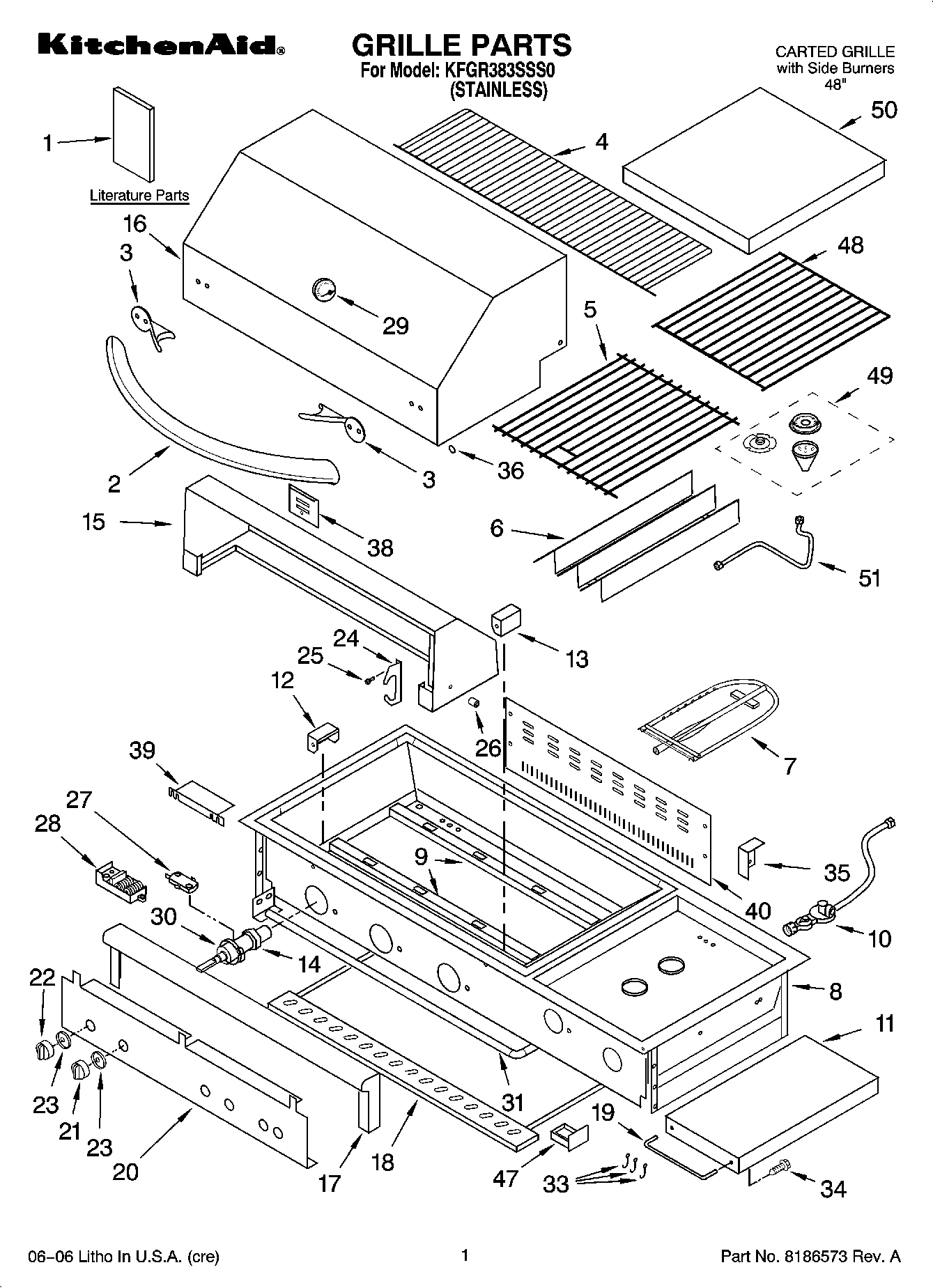

KFGR383SSS0 01 – GRILLE PARTS

Products

Position	Product
1	U & C Guide / Instructions, Installation
2	Handle, Hood
3	Insulator, Handle
4	Shelf, Warmer
5	Grate (2)
6	Plate, Sear (2)
7	Burner, Main (2)
8	Fire Box Asy (Not Serviced)
9	Hanger, Burner (2)
10	Regulator w/Hose
11	Shelf, Side (Right)
11	Shelf, Side (Left)
12	Left Collector Box
13	Right Collectr Box
14	Orifice (IR)
14	Orifice (Main Burner (3))
15	Hood Asy, Rear
16	Hood Asy, Front
17	Bullnose Asy
18	Tray, Drip
19	Bar, Tool
20	Panel, Front
21	Knob, Burner (2)
22	Knob, Rotisserie
23	Bezel (3)
24	Saddle, Spit (2)
25	WPW10068250 Whirlpool Dishwasher Screw
26	Spacer, Hood (2)
27	Switch, Igniter (SideBurner)
27	Switch, Igniter
28	Module, Spark
28	Module, Spark
29	Thermostat
30	Valve, Burner (Main (2))
30	Valve, Burner (Rotisserie/IR)
31	Manifold
33	Hook
35	Stop, Hood (Right)
35	Stop, Hood (Left)
36	Plug, Hole (4)
38	Cover, Rear
39	Shield, Igniter
40	Panel, Access
47	Tray, Battery Assy
48	Grate, SideBurner
49	Burner Assembly (2)
50	Cover, SideBurner
51	WPL 8190589
51	Screw - Casters
51	Handle, Door (2)
51	W/O Brake
51	Main Burner
51	WPL ARI87178A1
51	W/Brake
51	Infared Weld Asy
51	Cover, Bullnose
51	WPL 8190588
51	Cover, IR Igntr
51	WPL 8190158
51	WPL 8190125
51	WPL 8190124
51	WPL 8190123
51	Nut, Combinatio
51	Latch-Magnetic
51	Clip, J Type 8-32
51	WPW10139757 Whirlpool Nut
51	WP3400814 Whirlpool Screw
51	WP2004333 Whirlpool Refrigerator Nut
51	WP8281196 Whirlpool Screw
51	WP308685 Whirlpool Microwave Screw
51	WP120393 Whirlpool Washer Assembly
51	WP488130 Whirlpool Air Conditioner Nut
51	WPL 8190644
51	WPL 8190169
51	WPL 8190178
51	Screw 1/4-20X3/8SS
51	WPL 8190173
51	Elbow 3/8 to 1/2
51	Thermocouple, IR
51	Elbow, Orifice (W/O Hood & Pin)
51	WPL 8190528
51	Bracket, IR Igntr
51	WPL 8190517
51	WPL 8190516
51	Washer, Hood Hndle
51	WPL 8190460
51	Logo, Kitchenaid
51	WPL 8190457
51	WPL 8190431
51	WP67006715 Whirlpool Refrigerator Screw
