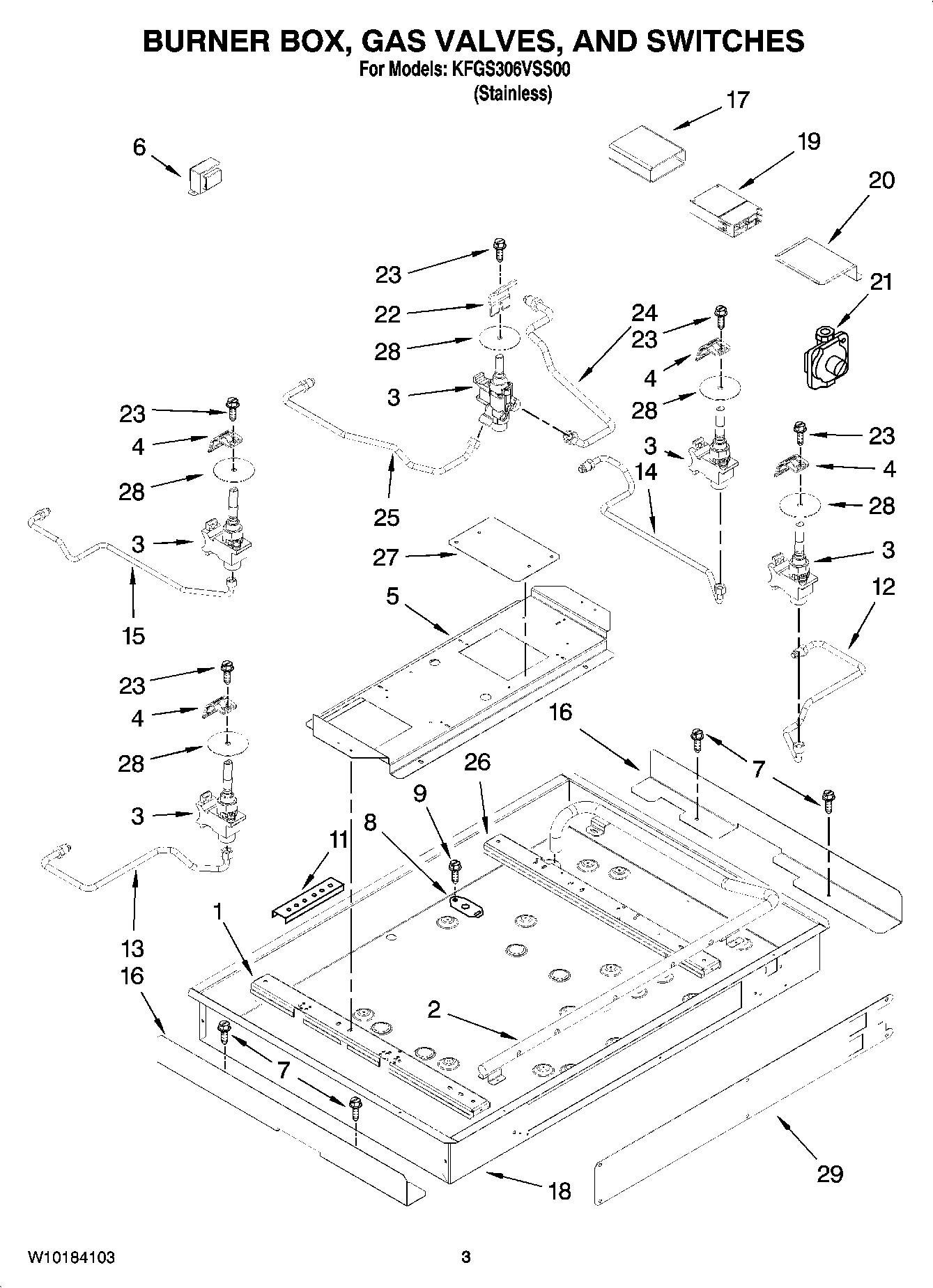

KFGS306VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	8287106 Whirlpool Clip Assembly
	Insulation, Cktp
	Following Parts Not Illustrated
	Miscellaneous
	WIRING HARNESS PARTS
	GASKET, RUBBER (1608 MM)
	Gasket, Rubber 930mm
	8286698 Whirlpool Oven Wire Harness
	WP3177991 Whirlpool Screw
	W10392003 Whirlpool Power Cord
	Spud Kit
1	RAIL, BURNER (LEFT)
2	W10475135 Whirlpool Manifold Assembly
3	8286916 Whirlpool Gas Valve
3	WP8286917 Whirlpool Burner Valve
3	VALVE, SINGLE (LEFT FRONT)
3	8286919 Whirlpool Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	Rail, Center
6	Transformer
7	W11676349 Whirlpool Screw
8	8286858 Whirlpool Cover Plate
9	W10491985 Whirlpool Screw
11	8186533 Whirlpool Hardware
12	Tubing, Gas Burner (RF)
13	Tubing, Gas Burner (LF)
14	Tubing, Gas Burner (RR)
15	Tubing, Gas Burner (LR)
16	SHIELD, HEAT
17	Insulation, Reignition Module
18	Burner Box
19	WP8286828 Whirlpool Spark Module
20	Cover, Reignition Module
21	W11087445 Whirlpool Pressure Regulator
22	8287056 Whirlpool Oven Mounting Bracket
23	8287057 Whirlpool Oven Screw
24	Tubing, External Crown
25	Tubing, Inner Crown
26	RAIL, BURNER (RIGHT)
27	Plate, Center Brnr
28	W10140571 Whirlpool Seal Switch
29	COVER, PLATE
