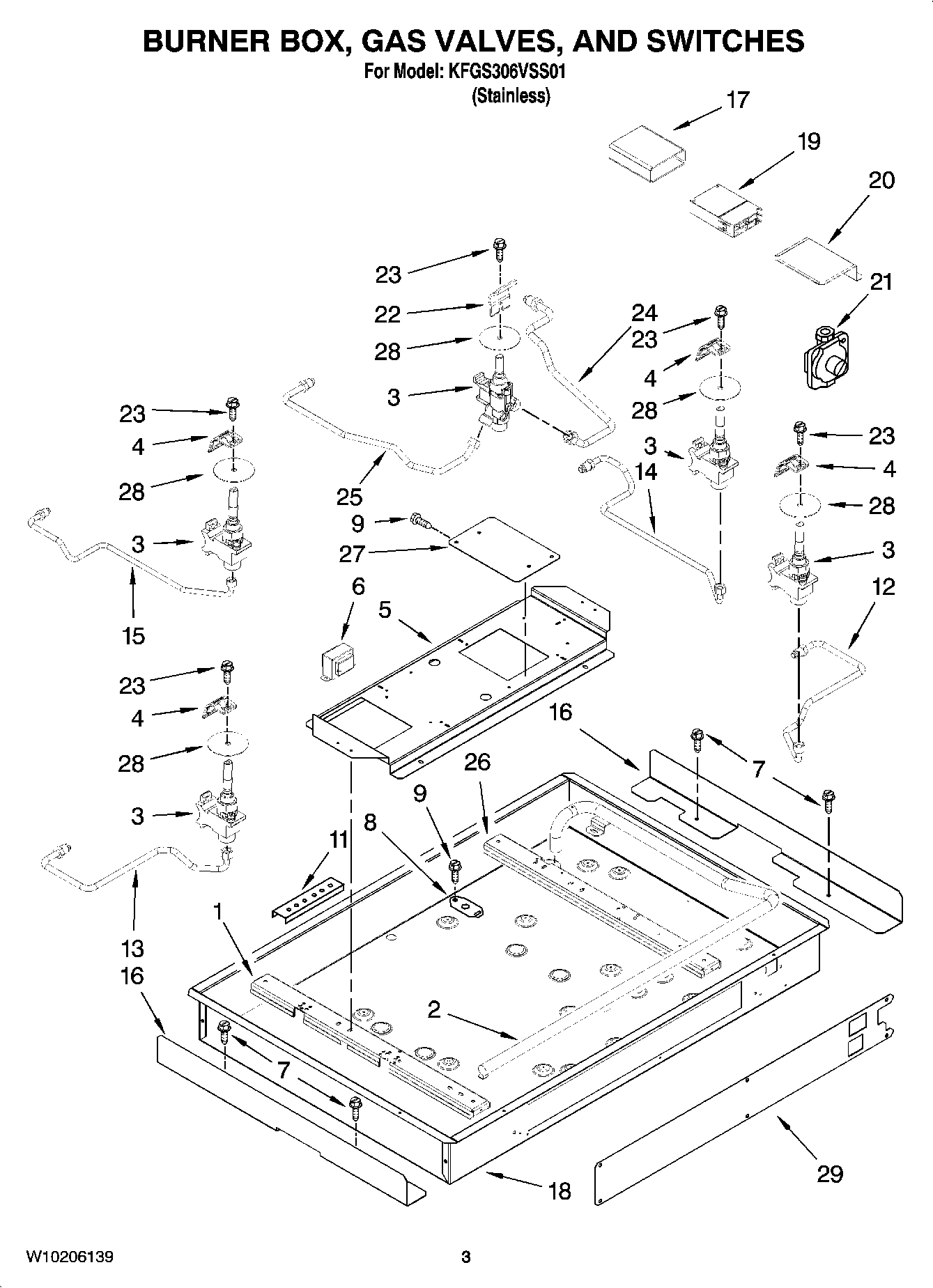

KFGS306VSS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

KFGS306VSS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KFGS306VSS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WIRING HARNESS PARTS
GASKET, RUBBER (1608 MM)
8286698 Whirlpool Oven Wire Harness
Gasket, Rubber 930mm
Insulation, Cktp
WPL W10136725
WP3177991 Whirlpool Screw
Switch Harness
Following Parts Not Illustrated
W10392003 Whirlpool Power Cord
Miscellaneous
1RAIL, BURNER (LEFT)
2W10475135 Whirlpool Manifold Assembly
38286919 Whirlpool Gas Valve
3VALVE, SINGLE (LEFT FRONT)
3WP8286917 Whirlpool Burner Valve
38286916 Whirlpool Gas Valve
48287055 Whirlpool Oven Mounting Bracket
5Rail, Center
6Transformer
7W11676349 Whirlpool Screw
88286858 Whirlpool Cover Plate
9W10491985 Whirlpool Screw
118186533 Whirlpool Hardware
12Tubing, Gas Burner (RF)
13Tubing, Gas Burner (LF)
14Tubing, Gas Burner (RR)
15Tubing, Gas Burner (LR)
16SHIELD, HEAT
17Insulation, Reignition Module
18BOX, BURNER
19WP8286828 Whirlpool Spark Module
20COVER, REIGNITION MODULE
21W11087445 Whirlpool Pressure Regulator
228287056 Whirlpool Oven Mounting Bracket
238287057 Whirlpool Oven Screw
24Tubing, External Crown
25Tubing, Inner Crown
26RAIL, BURNER (RIGHT)
27Plate, Center Brnr
28W10140571 Whirlpool Seal Switch
29COVER, PLATE
