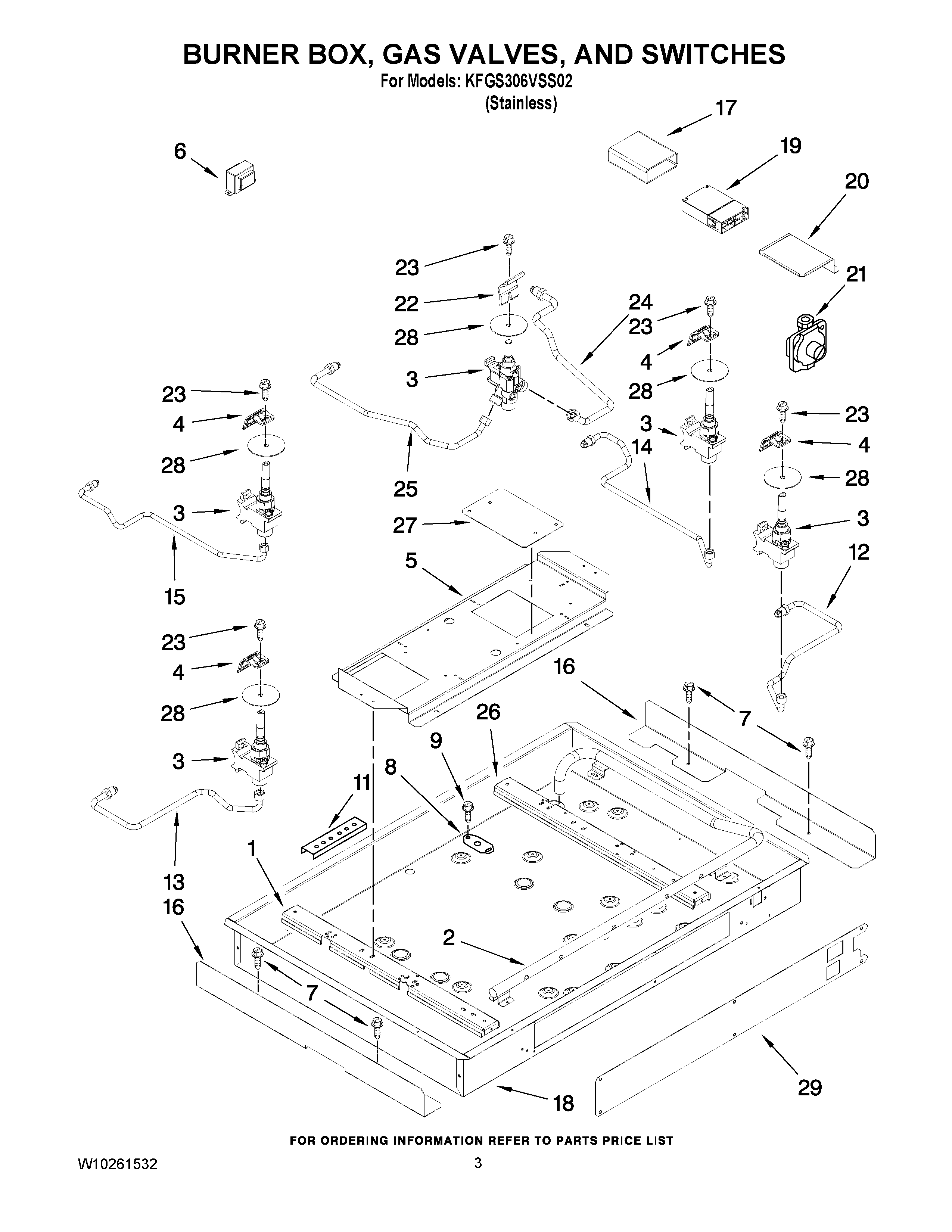

KFGS306VSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1RAIL, BURNER (LEFT)
2W10475135 Whirlpool Manifold Assembly
3WP8286917 Whirlpool Burner Valve
3VALVE, SINGLE (LEFT FRONT)
38286919 Whirlpool Gas Valve
38286916 Whirlpool Gas Valve
48287055 Whirlpool Oven Mounting Bracket
5Rail, Center
6Transformer
7W11676349 Whirlpool Screw
88286858 Whirlpool Cover Plate
9W10491985 Whirlpool Screw
118186533 Whirlpool Hardware
12Tubing, Gas Burner (RF)
13Tubing, Gas Burner (LF)
14Tubing, Gas Burner (RR)
15Tubing, Gas Burner (LR)
16SHIELD, HEAT
17Insulation, Reignition Module
18BOX, BURNER
19REIGNITION MODULE
20COVER, REIGNITION MODULE
21W11087445 Whirlpool Pressure Regulator
228287056 Whirlpool Oven Mounting Bracket
238287057 Whirlpool Oven Screw
24TUBING, EXTERNAL CROWN
25TUBING, INNER CROWN
26RAIL, BURNER (RIGHT)
27Plate, Center Brnr
28W10140571 Whirlpool Seal Switch
29COVER, PLATE
