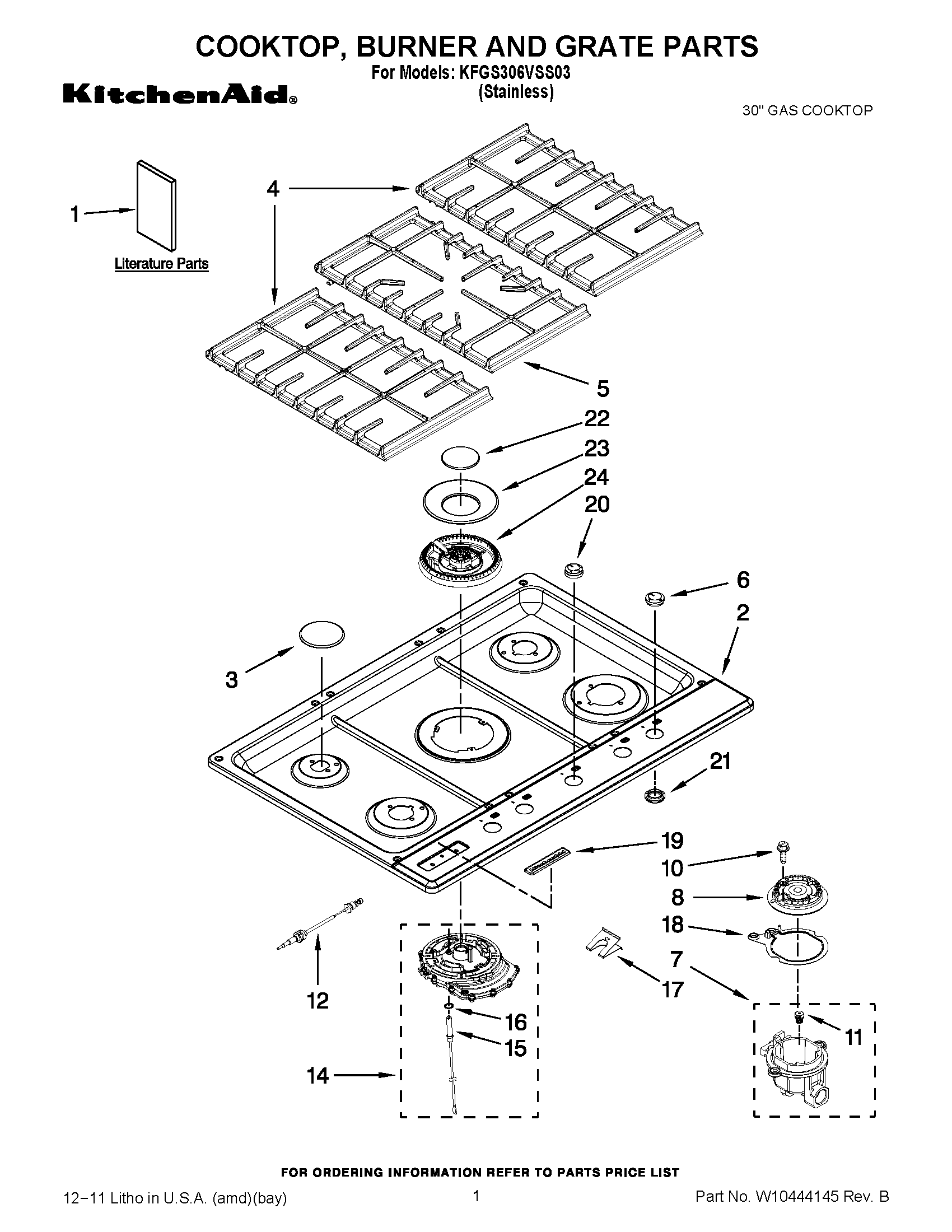

KFGS306VSS03 01 – COOKTOP, BURNER AND GRATE PARTS

KFGS306VSS03 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KFGS306VSS03 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1LP CONVERSION INSTRUCTIONS
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1Installation Instructions (Undercounter Oven)
1Safer Cooking Tips (French)
2COOKTOP
3WP8286818 Whirlpool Burner Cap
3WP8286817 Whirlpool Burner Cap
3WP8286816 Whirlpool Burner Cap
4GRATE (LEFT)
4WP8286661 Whirlpool Burner Grate
5GRATE (CENTER)
6WPW10132192 Whirlpool Knob
7W10140570 Whirlpool Orifice Holder
78286820 Whirlpool Oven Orifice Holder
78286821 Whirlpool Oven Orifice Holder
7W10140569 Whirlpool Orifice Holder
8WP8286815 Whirlpool Burner Head
8WP8286813 Whirlpool Burner Head
8WP8286814 Whirlpool Burner Head
10WP8287059 Whirlpool Screw
11W10791072 Whirlpool Orifice Spud
11W10791076 Whirlpool Spud Orifice
11W10791614 Whirlpool Orifice Spud
11W10151350 Whirlpool Spud Orifice
12WPL 8286724
12WPW10560001 Whirlpool Surface Igniter
12W10854967 Whirlpool Surface Igniter
128286723 Whirlpool Surface Igniter
14WPW10617292 Whirlpool Orifice Holder
15WPW10398577 Whirlpool Surface Igniter
16W10416057 Whirlpool Ring Assembly
178286863 Whirlpool Oven Clip
188286930 Whirlpool Oven Gasket
18WPL 8286931
188286932 Whirlpool Gasket
19WPW10243391 Whirlpool Refrigerator Nameplate
20W10132191 Whirlpool Knob
21KNOB, GROMMET
22WPW10398575 Whirlpool Burner Cap
23W10846732 Whirlpool Burner Cap
24W10836409 Whirlpool Burner Head
