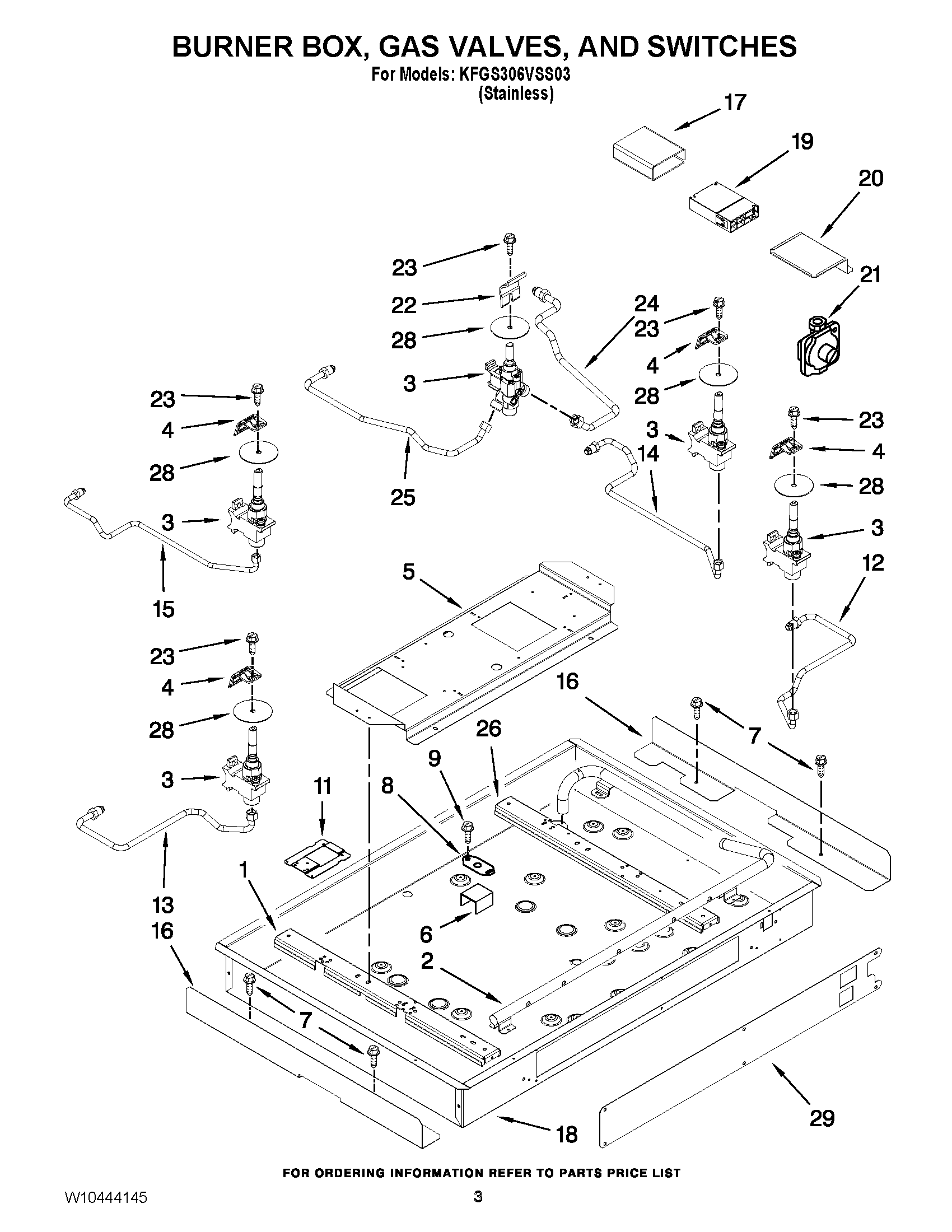

KFGS306VSS03 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1RAIL, BURNER (LEFT)
2W10475135 Whirlpool Manifold Assembly
38286919 Whirlpool Gas Valve
3VALVE, SINGLE (LEFT FRONT)
38286916 Whirlpool Gas Valve
3WP8286917 Whirlpool Burner Valve
48287055 Whirlpool Oven Mounting Bracket
5RAIL, CENTER
6Transformer
7W11676349 Whirlpool Screw
8INSULATION, TRANSFORMER
9W10491985 Whirlpool Screw
11BRACKET, MOUNTING DUAL RING BURNER
12WPW10323081 Whirlpool Gas Tubing
13TUBING, GAS BURNER (LEFT FRONT)
14TUBING, GAS BURNER (RIGHT REAR)
15WPW10323080 Whirlpool Gas Turbine
16SHIELD, HEAT
17Insulation, Reignition Module
18BOX, BURNER
19REIGNITION MODULE
20COVER, REIGNITION MODULE
21W11087445 Whirlpool Pressure Regulator
228287056 Whirlpool Oven Mounting Bracket
238287057 Whirlpool Oven Screw
24TUBE, OUTER DUAL CROWN
25TUBE, INNER DUAL CROWN
26RAIL, BURNER (RIGHT)
28W10140571 Whirlpool Seal Switch
29COVER, PLATE
