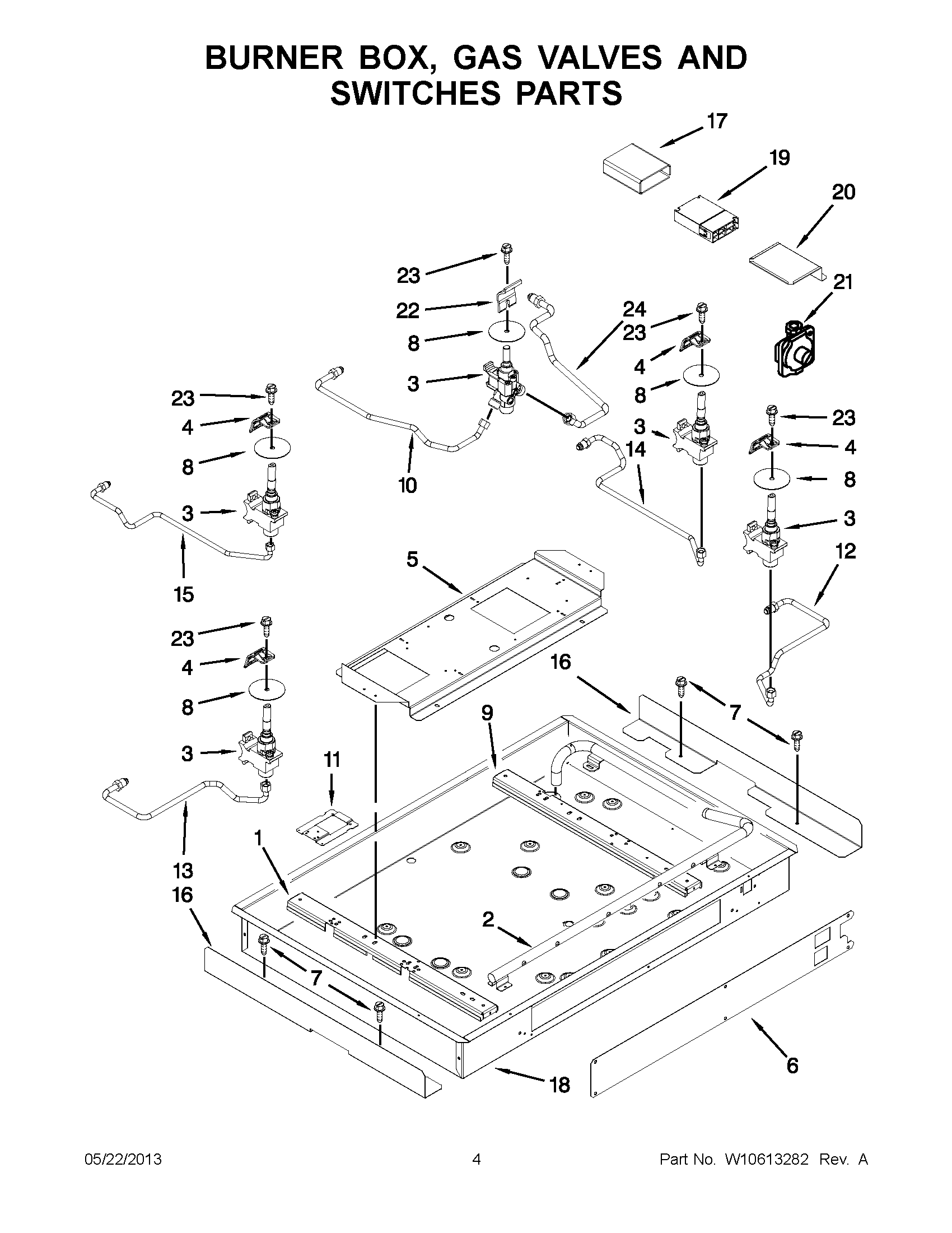

KFGS306VSS04 02 – BURNER BOX, GAS VALVES AND SWITCHES PARTS

Products

PositionProduct
1RAIL, BURNER (LEFT)
2W10475135 Whirlpool Manifold Assembly
3VALVE, SINGLE (LEFT FRONT)
3WP8286917 Whirlpool Burner Valve
38286919 Whirlpool Gas Valve
38286916 Whirlpool Gas Valve
48287055 Whirlpool Oven Mounting Bracket
5RAIL, CENTER
6COVER, PLATE
7W11676349 Whirlpool Screw
8W10140571 Whirlpool Seal Switch
9RAIL, BURNER (RIGHT)
10TUBE, INNER CROWN (CENTER)
11BRACKET, MOUNTING DUAL RING BURNER
12TUBING, GAS BURNER (RIGHT FRONT)
13TUBING, GAS BURNER (LEFT FRONT)
14TUBING, GAS BURNER (RIGHT REAR)
15TUBING, GAS BURNER (LEFT REAR)
16SHIELD, HEAT
17Insulation, Reignition Module
18BOX, BURNER
19WPW10475150 Whirlpool Spark Module
20COVER, REIGNITION MODULE
21W11087445 Whirlpool Pressure Regulator
228287056 Whirlpool Oven Mounting Bracket
238287057 Whirlpool Oven Screw
24TUBE, OUTER CROWN (CENTER)
