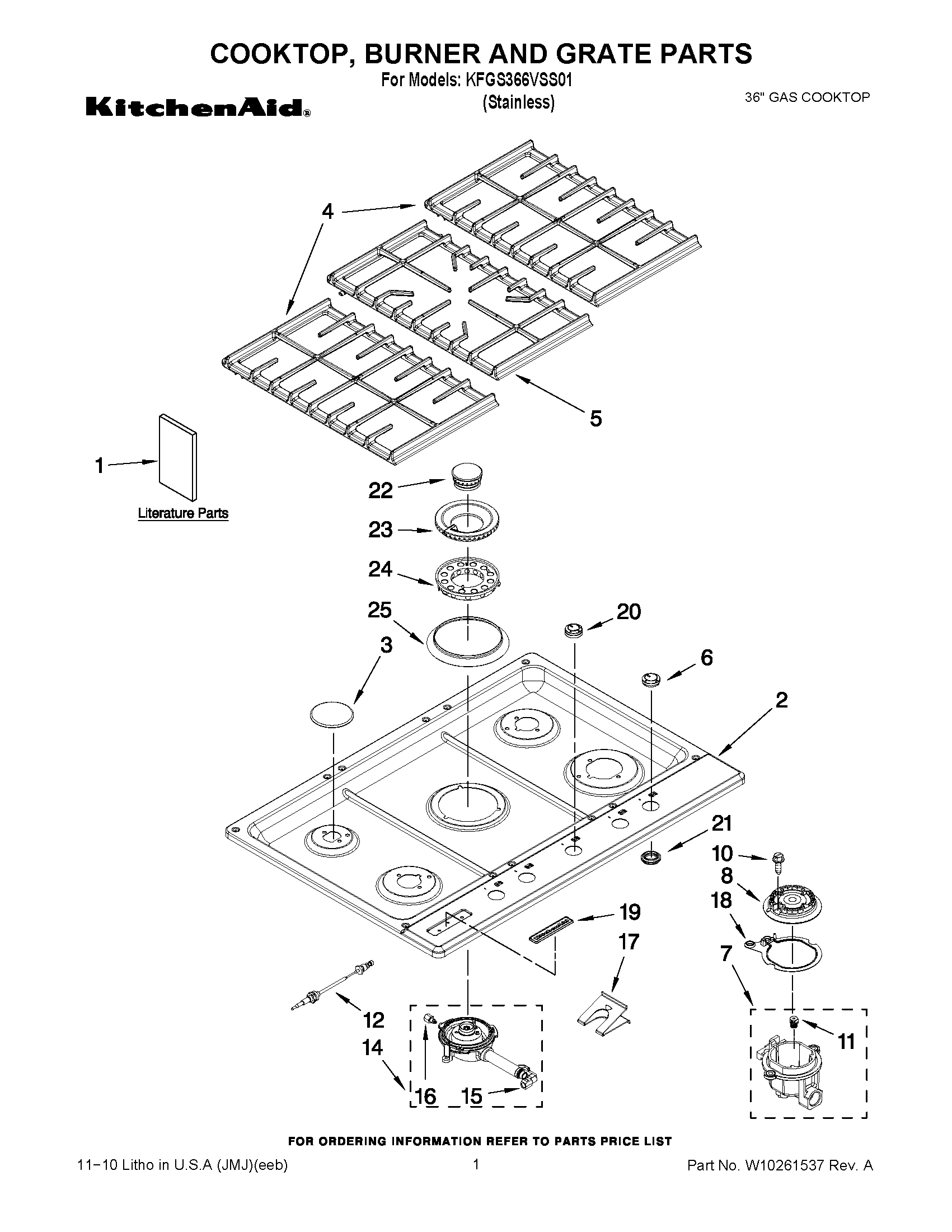

KFGS366VSS01 01 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
KFGS366VSS01 01 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
1
SAFER COOKING TIPS (ENGLISH
1
Safer Cooking Tips (French)
1
Use & Care Guide
1
Installation Instructions
1
WPL W10136725
1
Installation Instructions (Undercounter Oven)
2
Cooktop
3
WP8286817 Whirlpool Burner Cap
3
WP8286816 Whirlpool Burner Cap
3
WP8286818 Whirlpool Burner Cap
4
Grate, Burner (Right)
4
WP8287314 Whirlpool Burner Grate
5
Grate, Center
6
WPW10132192 Whirlpool Knob
7
W10140570 Whirlpool Orifice Holder
7
8286820 Whirlpool Oven Orifice Holder
7
W10140569 Whirlpool Orifice Holder
8
WP8286814 Whirlpool Burner Head
8
WP8286813 Whirlpool Burner Head
8
WP8286815 Whirlpool Burner Head
10
WP8287059 Whirlpool Screw
11
W10791072 Whirlpool Orifice Spud
11
W10151350 Whirlpool Spud Orifice
11
W10791614 Whirlpool Orifice Spud
12
WPW10560001 Whirlpool Surface Igniter
12
W10854967 Whirlpool Surface Igniter
12
8286723 Whirlpool Surface Igniter
12
WPL 8286724
14
Assembly, Burner Base
15
W10137305 Whirlpool Orifice Spud
16
WPW10137303 Whirlpool Spud Orifice
17
8286863 Whirlpool Oven Clip
18
8286930 Whirlpool Oven Gasket
18
WPL 8286931
18
8286932 Whirlpool Gasket
19
Badge (Stainless)
20
W10132191 Whirlpool Knob
21
KNOB, GROMMET
22
WPW10163407 Whirlpool Burner Head
23
WPW10153033 Whirlpool Head Burner
24
WP8287072 Whirlpool Burner Base
25
Beauty Ring, Ctr Brn
←
