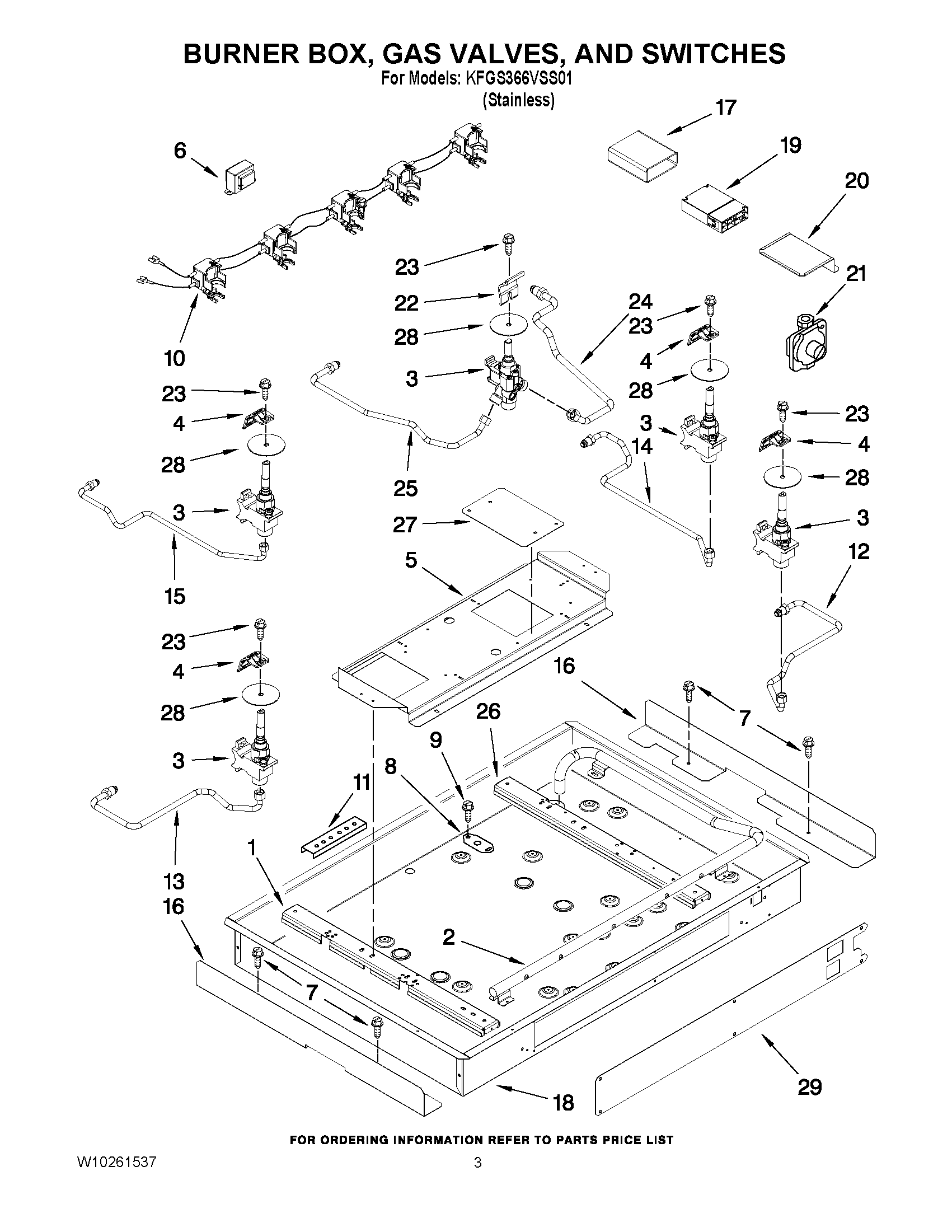

KFGS366VSS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1RAIL, BURNER (LEFT)
28287310 Whirlpool Oven Manifold
3VALVE, SINGLE (LEFT FRONT)
38286916 Whirlpool Gas Valve
38286919 Whirlpool Gas Valve
3WP8286917 Whirlpool Burner Valve
48287055 Whirlpool Oven Mounting Bracket
5Rail, Center
6Transformer
7W11676349 Whirlpool Screw
88286858 Whirlpool Cover Plate
9W10491985 Whirlpool Screw
10Switch Harness
118186533 Whirlpool Hardware
12Tubing, Gas Burner (RF)
13Tubing, Gas Burner (LF)
14Tubing, Gas Burner (RR)
15Tubing, Gas Burner (LR)
16SHIELD, HEAT
17Insulation, Reignition Module
18Burner Box
19REIGNITION MODULE
20COVER, REIGNITION MODULE
21W11087445 Whirlpool Pressure Regulator
228287056 Whirlpool Oven Mounting Bracket
238287057 Whirlpool Oven Screw
24TUBING, EXTERNAL CROWN
25TUBING, INNER CROWN
26RAIL, BURNER (RIGHT)
27Plate, Center Brnr
28W10140571 Whirlpool Seal Switch
29COVER, PLATE
