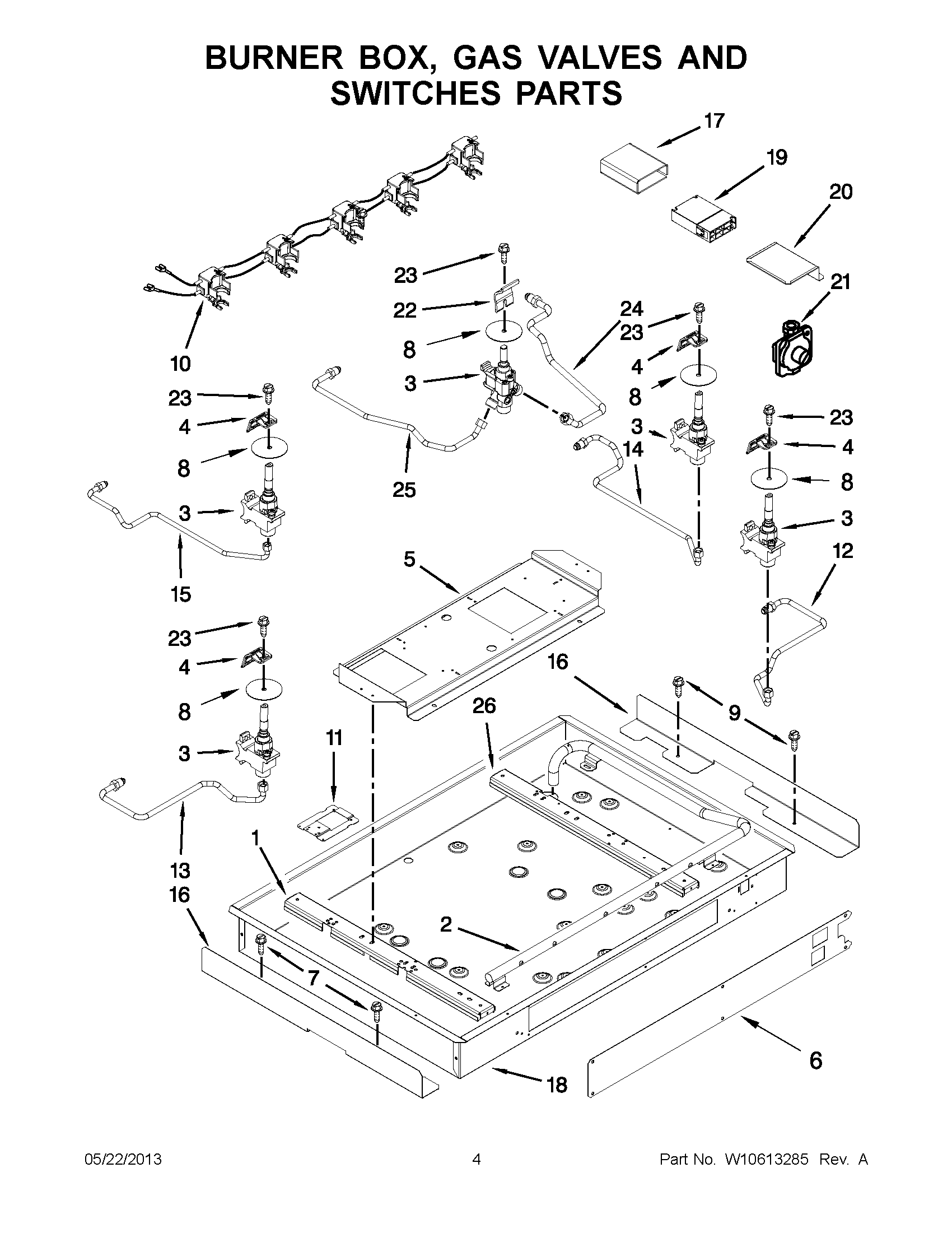

KFGS366VSS03 02 – BURNER BOX, GAS VALVES AND SWITCHES PARTS

Products

PositionProduct
1RAIL, BURNER (LEFT)
2W10475133 Whirlpool Manifold Assembly
3WP8286917 Whirlpool Burner Valve
3VALVE, SINGLE (LEFT FRONT)
38286919 Whirlpool Gas Valve
38286916 Whirlpool Gas Valve
48287055 Whirlpool Oven Mounting Bracket
5RAIL, CENTER
6COVER, PLATE
7W11676349 Whirlpool Screw
8W10140571 Whirlpool Seal Switch
9W10491985 Whirlpool Screw
10Switch Harness
11BRACKET, MOUNTING DUAL RING BURNER
12TUBING, GAS BURNER (RIGHT FRONT)
13TUBING, GAS BURNER (LEFT FRONT)
14TUBING, GAS BURNER (RIGHT REAR)
15TUBING, GAS BURNER (LEFT REAR)
16SHIELD, HEAT
17Insulation, Reignition Module
18Burner Box
19WPW10475150 Whirlpool Spark Module
20COVER, REIGNITION MODULE
21W11087445 Whirlpool Pressure Regulator
228287056 Whirlpool Oven Mounting Bracket
238287057 Whirlpool Oven Screw
24TUBE, OUTER CROWN (CENTER)
25TUBE, INNER CROWN (CENTER)
26RAIL, BURNER (RIGHT)
