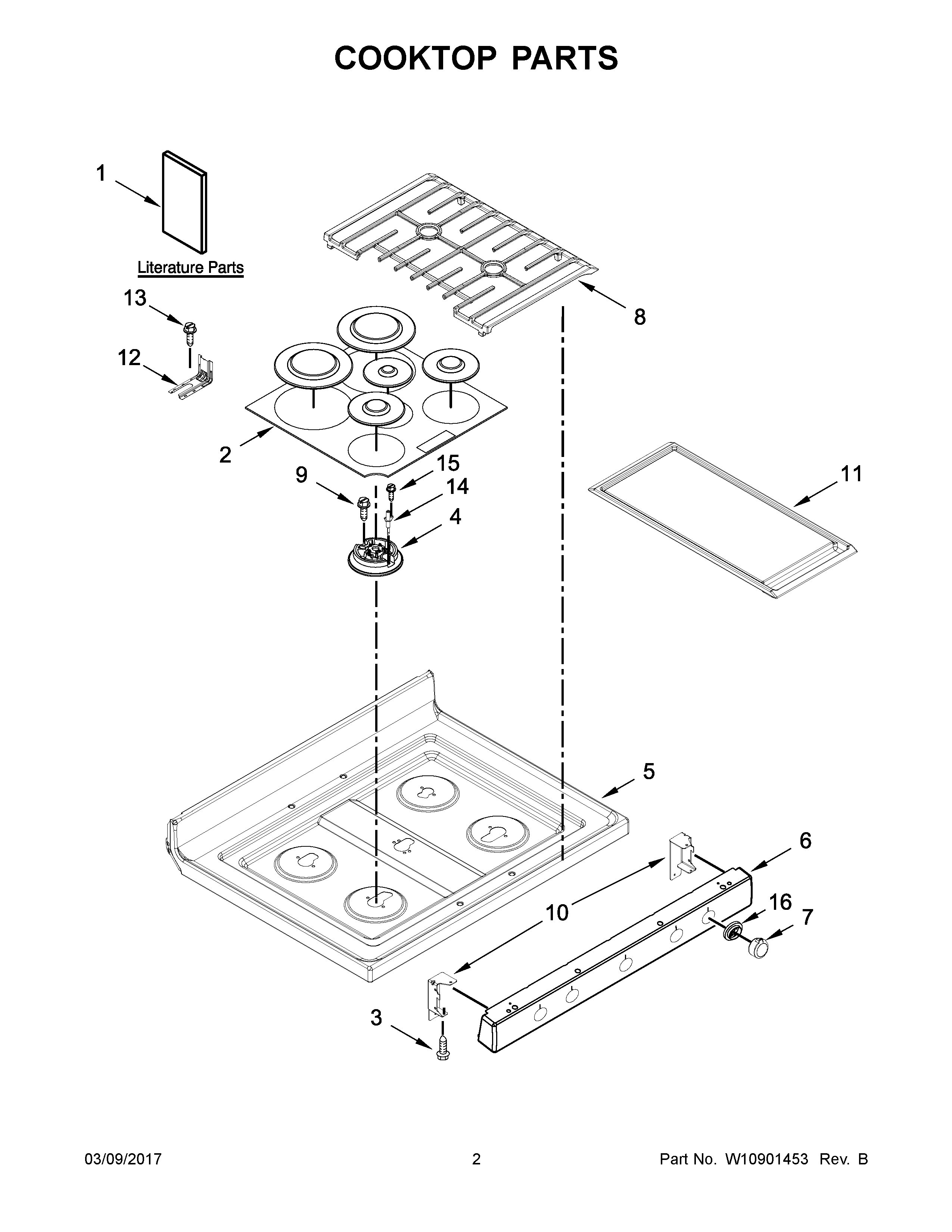

KFGS530ESS1 02 – COOKTOP PARTS

Products

PositionProduct
NIW10324946 Whirlpool Wire Harness
NIW11161843 Whirlpool Wire Harness
NIWPW10551614 Whirlpool Clip
NIW10738993 Whirlpool Wire Harness
NIW10519940 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NICABINET (NOT A SERVICEABLE PART)
NIW10519920 Whirlpool Wire Harness
1INSTRUCTIONS, INSTALLATION
1BSHEET, TECH (ENGLISH)
1CSHEET, TECH (FRENCH)
1AGUIDE, USE & CARE
1FGUIDE, QUICK START
1DSAFER COOKING TIPS (ENGLISH
1ESafer Cooking Tips (French)
2WPW10183374 Whirlpool Burner Cap
3WPW10067840 Whirlpool Screw
4WPW10515455 Whirlpool Burner Head
4BWPW10515453 Whirlpool Burner Head
4AWPW10515454 Whirlpool Burner Head
5W11241183 Whirlpool Cooktop
6W10724442 Whirlpool Manifold Panel
7W11030413 Whirlpool Knob
8W11199168 Whirlpool Grate Kit
9WP3368921 Whirlpool Screw
10AW10106419 Whirlpool Support Bracket
10W10289096 Whirlpool Bracket Support
11W10432544 Whirlpool Range Griddle
12W11447673 Whirlpool Range Tip Anchor
13SCREW, ANTI-TIP KIT
14WPW10515459 Whirlpool Surface Igniter
15WP8273062 Whirlpool Screw
16W10814133 Whirlpool Knob Bezel
