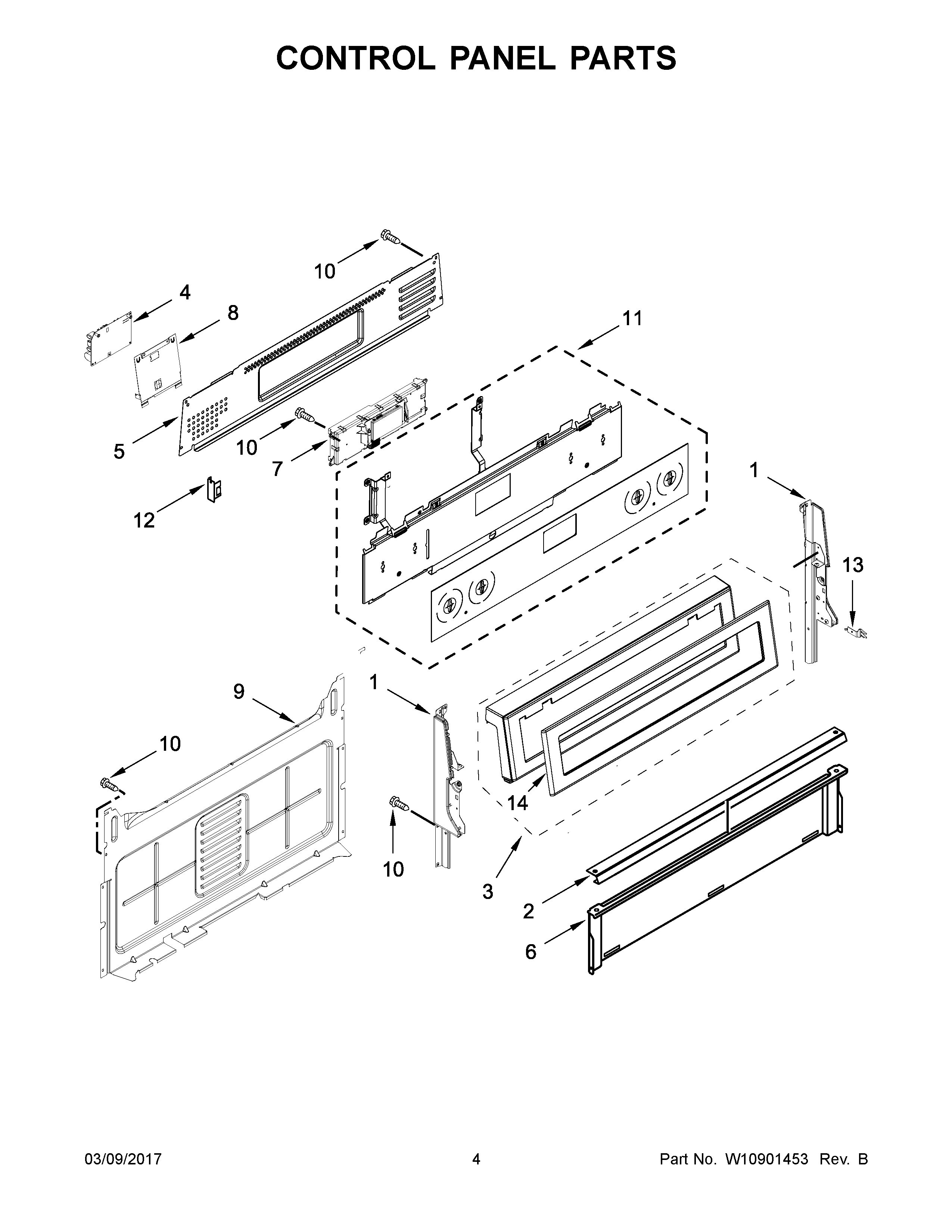

KFGS530ESS1 03 – CONTROL PANEL PARTS

KFGS530ESS1 03 – CONTROL PANEL PARTS

Written by

in

KFGS530ESS1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW10409003 Whirlpool Endcap Panel
1W11404310 Whirlpool Panel Endcap
2W10516123 Whirlpool Mounting Bracket
4WPW10511278 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7W11088879 Whirlpool Electronic Control Board + Core
8W10762981 Whirlpool Mounting Bracket Assembly
9W10184251 Whirlpool Rear Cover
10SCREW
11W10692153 Whirlpool Membrane Switch
12WPW10475149 Whirlpool Spark Module
138523412 Whirlpool Mounting Bracket
14W11164063 Whirlpool Control Panel
