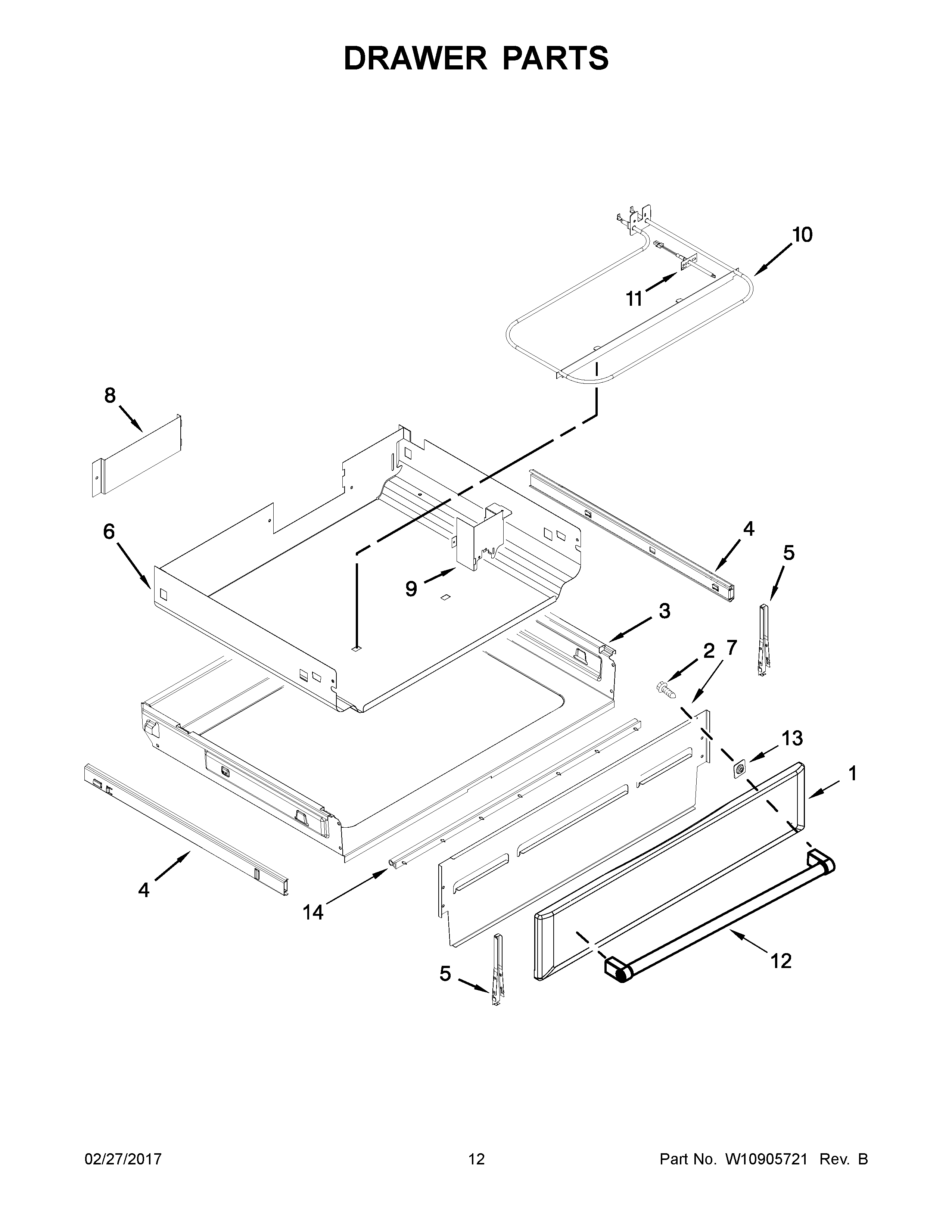

KFGS530ESS2 07 – DRAWER PARTS

KFGS530ESS2 07 – DRAWER PARTS

Written by

in

KFGS530ESS2 07 – DRAWER PARTS

Products

PositionProduct
1W10859916 Whirlpool Drawer Panel
2WP3196557 Whirlpool Screw
3W10813962 Whirlpool Utility Drawer
4AWPW10441805 Whirlpool Slide Drawer
4WPW10441804 Whirlpool Drawer Slide
5WPW10318026 Whirlpool Mounting Bracket
6W10634260 Whirlpool Utility Drawer
7W10748082 Whirlpool Drawer Panel
8W10325438 Whirlpool Cover Panel
9W10634259 Whirlpool Wire Cover
10WPW10323181 Whirlpool Surface Element
11WPW10131827 Whirlpool Sensor
12W11104399 Whirlpool Door Handle
13SPACER, HANDLE
14W10752976 Whirlpool Seal
