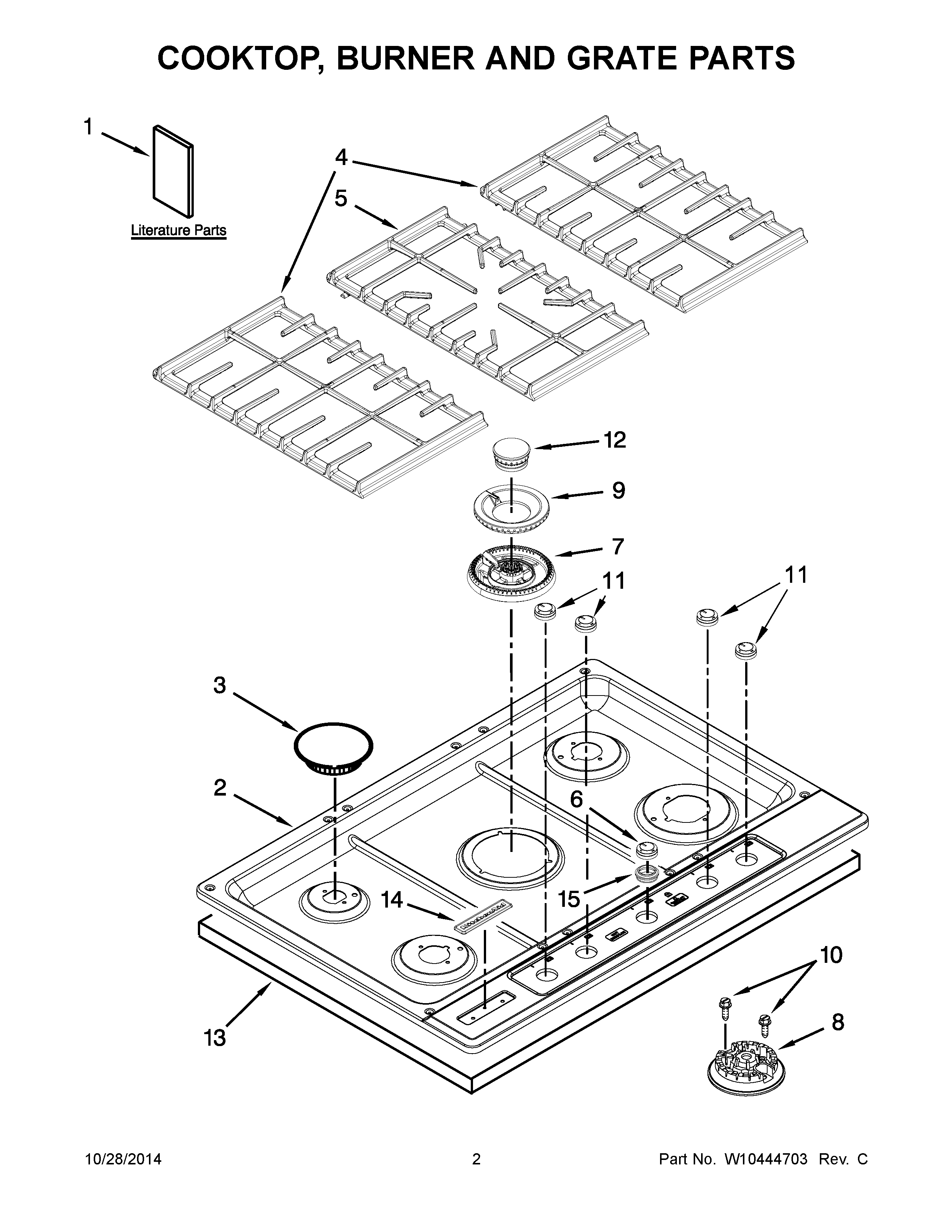

KFGU706VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

KFGU706VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KFGU706VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NI8186533 Whirlpool Hardware
NI8286987 Whirlpool Oven Wire Harness
NIW10515666 Whirlpool Wire Harness
NI8287106 Whirlpool Clip Assembly
NIW10392003 Whirlpool Power Cord
NICABINET (NOT A SERVICEABLE PART)
1CTECH SHEET
1BUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1ESafer Cooking Tips (French)
1AInstallation Instructions (Undercounter Oven)
1DSAFER COOKING TIPS (ENGLISH
2W10505943 Whirlpool Cooktop
3WP8286818 Whirlpool Burner Cap
3AWP8286816 Whirlpool Burner Cap
3BWP8286817 Whirlpool Burner Cap
4AWP8286661 Whirlpool Burner Grate
4GRATE (LEFT)
5GRATE (CENTER)
6W10132191 Whirlpool Knob
7W10836409 Whirlpool Burner Head
8BWP8286814 Whirlpool Burner Head
8WP8286815 Whirlpool Burner Head
8AWP8286813 Whirlpool Burner Head
9W10846732 Whirlpool Burner Cap
10WP8287059 Whirlpool Screw
11WPW10132192 Whirlpool Knob
12WPW10398575 Whirlpool Burner Cap
13INSULATION, COOKTOP
14WPW10243391 Whirlpool Refrigerator Nameplate
158286854 Whirlpool Oven Grommet
