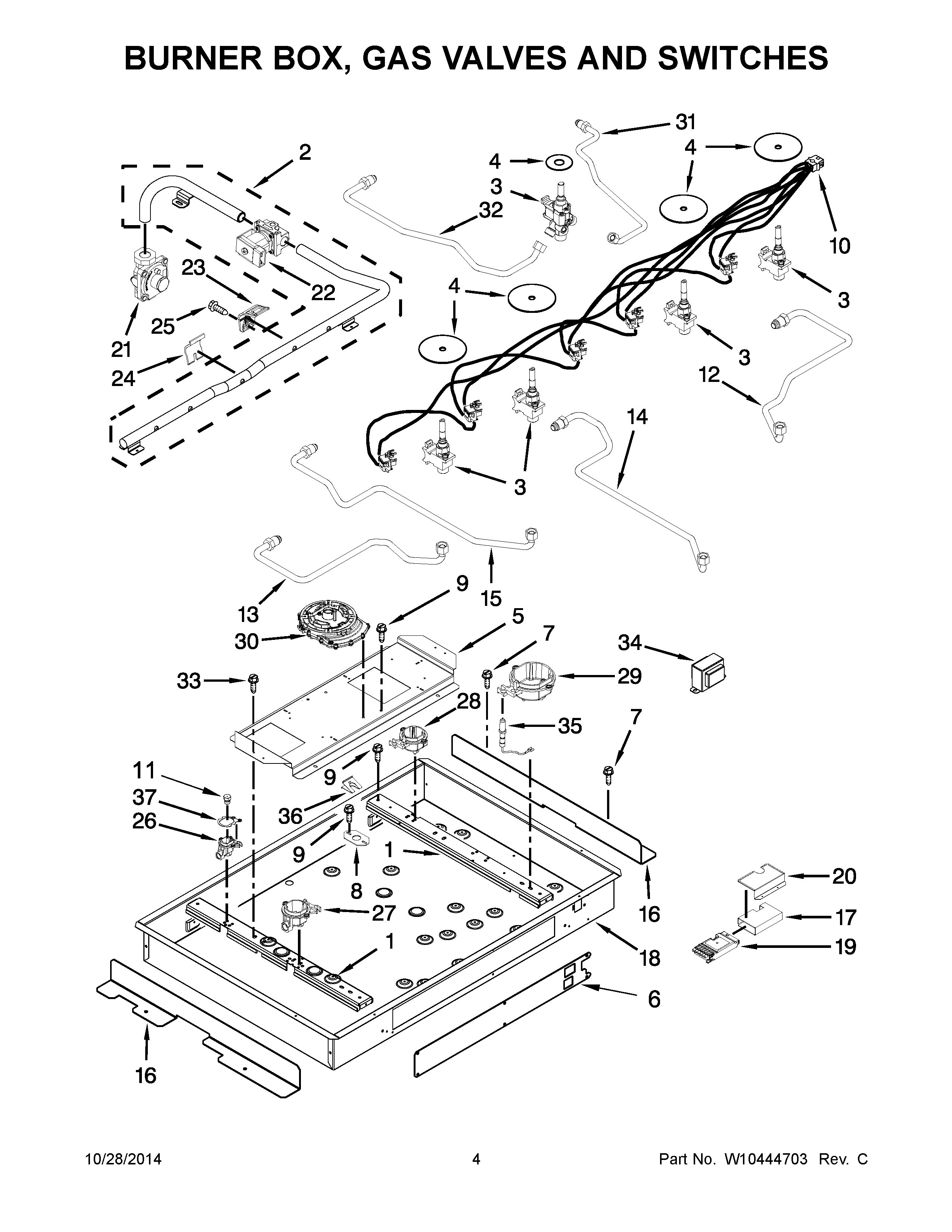

KFGU706VSS02 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
1RAIL, BURNER (LEFT)
1ARAIL, BURNER (RIGHT)
2PIPE, MANIFOLD
38286916 Whirlpool Gas Valve
3A8286919 Whirlpool Gas Valve
3BVALVE, SINGLE (LEFT FRONT)
3CWP8287058 Whirlpool Gas Valve
4W10140571 Whirlpool Seal Switch
4AW10140577 Whirlpool Switch Seal
5RAIL, CENTER
6COVER, PLATE
7WP3196557 Whirlpool Screw
88286858 Whirlpool Cover Plate
9W10491985 Whirlpool Screw
10HARNESS, SWITCH
11CW10791081 Whirlpool Orifice Spud
11DW10791070 Whirlpool Orifice Spud
11BW10791072 Whirlpool Orifice Spud
11AW10151350 Whirlpool Spud Orifice
11W10791614 Whirlpool Orifice Spud
11EW10791079 Whirlpool Orifice Spud
12WPW10323081 Whirlpool Gas Tubing
13TUBING, GAS BURNER (LEFT FRONT)
14TUBING, GAS BURNER (RIGHT REAR)
15WPW10323080 Whirlpool Gas Turbine
16SHIELD, HEAT
17MODULE, REIGNITION
18BOX, BURNER
19INSULATION, REIGNITION MODULE
20COVER, REIGNITION MODULE
21W11087445 Whirlpool Pressure Regulator
22W10368615 Whirlpool Solenoid Valve
238287055 Whirlpool Oven Mounting Bracket
248287056 Whirlpool Oven Mounting Bracket
258287057 Whirlpool Oven Screw
268286820 Whirlpool Oven Orifice Holder
278286821 Whirlpool Oven Orifice Holder
28W10140569 Whirlpool Orifice Holder
29HOLDER, ORIFICE (12K) (RIGHT FRONT)
30WPW10617292 Whirlpool Orifice Holder
31TUBE, OUTER CROWN (CENTER)
32TUBE, INNER CROWN (CENTER)
33W11676349 Whirlpool Screw
34TRANSFORMER
35A8286723 Whirlpool Surface Igniter
35WPW10560001 Whirlpool Surface Igniter
35DWPW10398577 Whirlpool Surface Igniter
35CW10854967 Whirlpool Surface Igniter
35BWPL 8286724
368286863 Whirlpool Oven Clip
378286930 Whirlpool Oven Gasket
37AWPL 8286931
37B8286932 Whirlpool Gasket
