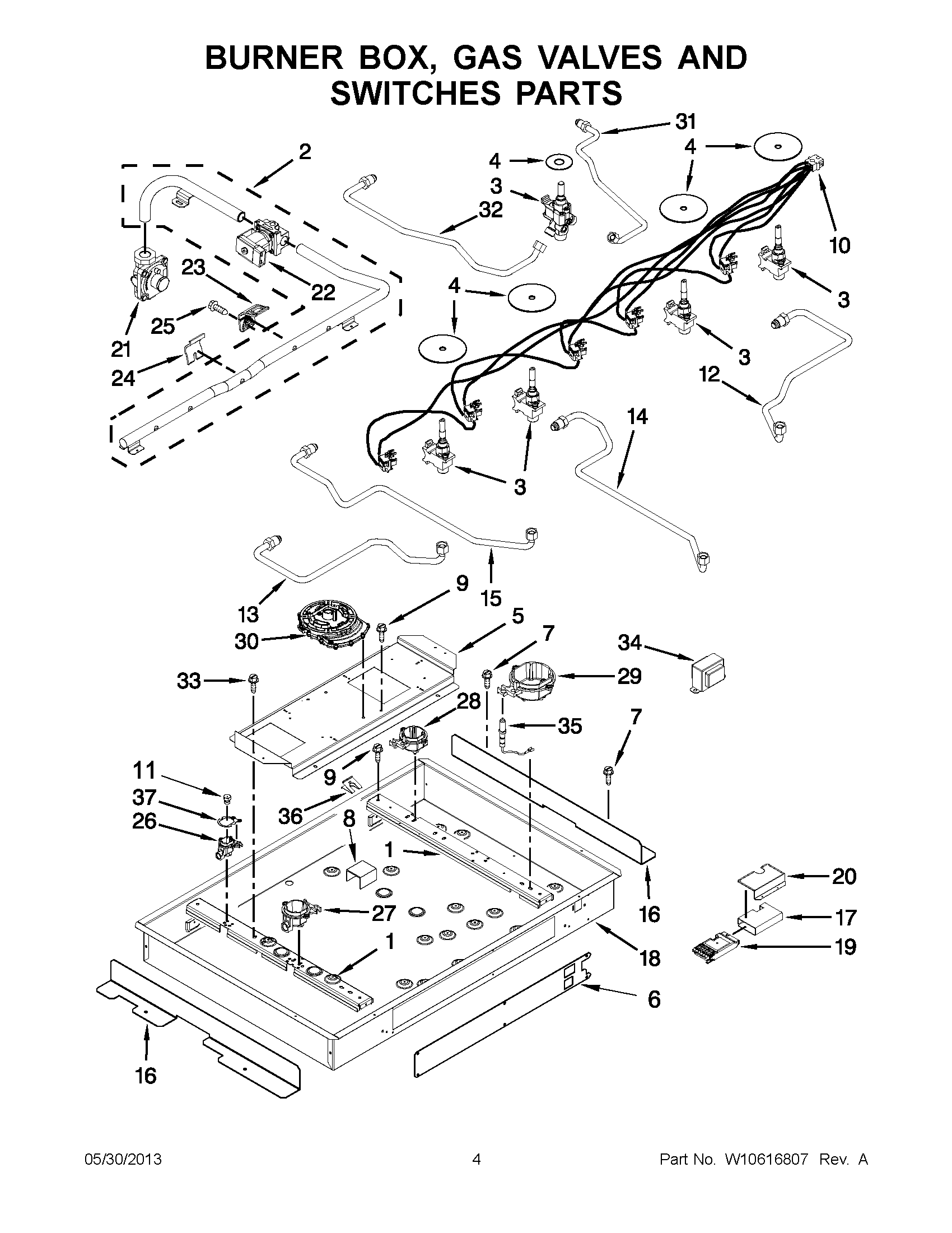

KFGU706VSS03 02 – BURNER BOX, GAS VALVES AND SWITCHES PARTS

Products

PositionProduct
1RAIL, BURNER (RIGHT)
1RAIL, BURNER (LEFT)
2W10475136 Whirlpool Manifold Assembly
38286916 Whirlpool Gas Valve
3WP8287058 Whirlpool Gas Valve
3VALVE, SINGLE (LEFT FRONT)
38286919 Whirlpool Gas Valve
4W10140571 Whirlpool Seal Switch
4W10140577 Whirlpool Switch Seal
5RAIL, CENTER
6COVER, PLATE
7WP3196557 Whirlpool Screw
8INSULATION, TRANSFORMER
9W10491985 Whirlpool Screw
10HARNESS, SWITCH
11W10791614 Whirlpool Orifice Spud
11W10151350 Whirlpool Spud Orifice
11W10791081 Whirlpool Orifice Spud
11W10791076 Whirlpool Spud Orifice
12TUBING, GAS BURNER (RIGHT FRONT)
13TUBING, GAS BURNER (LEFT FRONT)
14TUBING, GAS BURNER (RIGHT REAR)
15TUBING, GAS BURNER (LEFT REAR)
16SHIELD, HEAT
17MODULE, REIGNITION
18BOX, BURNER
19INSULATION, REIGNITION MODULE
20COVER, REIGNITION MODULE
21W11087445 Whirlpool Pressure Regulator
22W10368615 Whirlpool Solenoid Valve
238287055 Whirlpool Oven Mounting Bracket
248287056 Whirlpool Oven Mounting Bracket
258287057 Whirlpool Oven Screw
268286820 Whirlpool Oven Orifice Holder
278286821 Whirlpool Oven Orifice Holder
28W10140569 Whirlpool Orifice Holder
29HOLDER, ORIFICE (12K) (RIGHT FRONT)
30WPW10617292 Whirlpool Orifice Holder
31TUBE, OUTER CROWN (CENTER)
32TUBE, INNER CROWN (CENTER)
33W11676349 Whirlpool Screw
34TRANSFORMER
35WPL 8286724
35WPW10560001 Whirlpool Surface Igniter
35W10854967 Whirlpool Surface Igniter
358286723 Whirlpool Surface Igniter
368286863 Whirlpool Oven Clip
37WPL 8286931
378286930 Whirlpool Oven Gasket
378286932 Whirlpool Gasket
