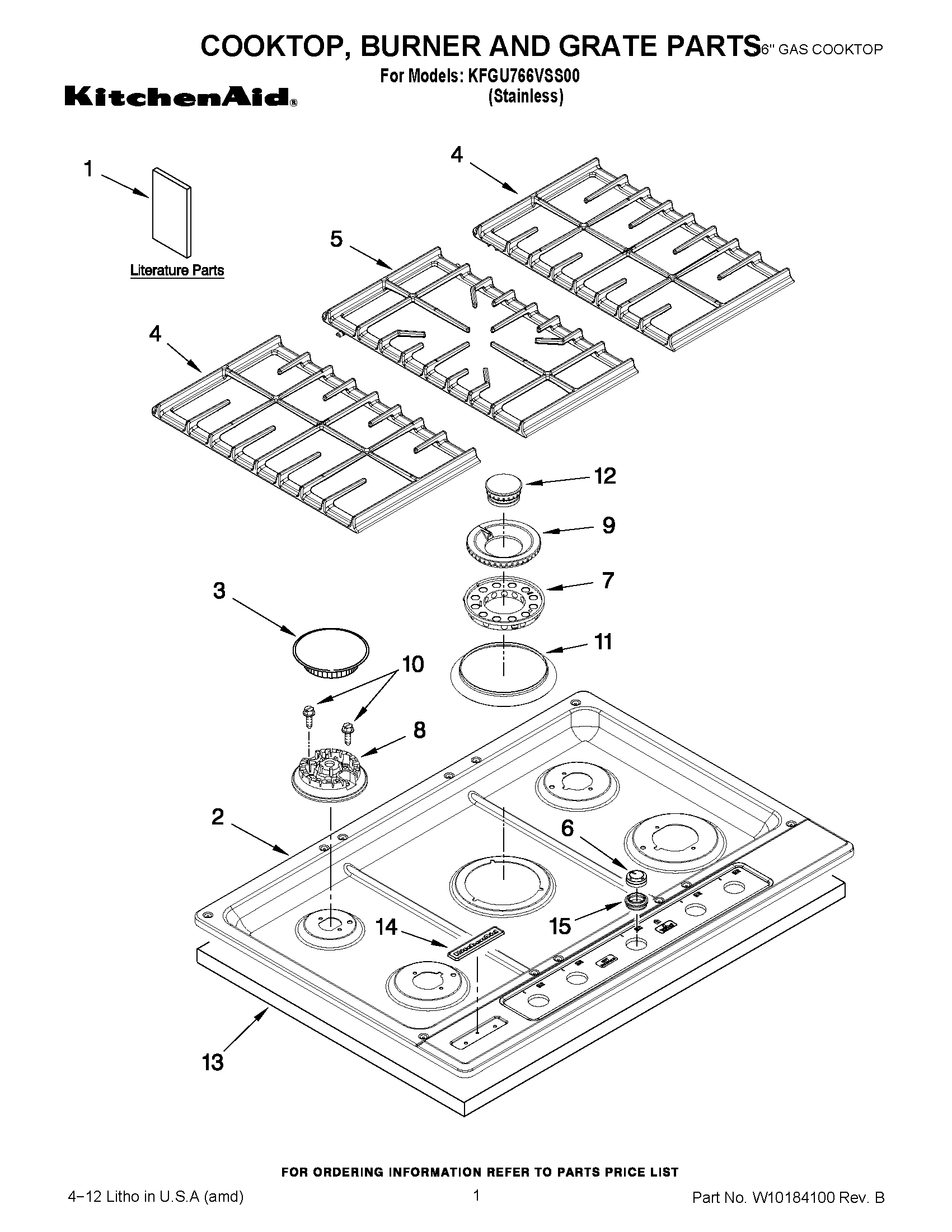

KFGU766VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

KFGU766VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KFGU766VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Safe Cooking Tips
1TECH SHEET
1LP Conversion Instructions
1Use & Care Guide
1Installation Instructions
1Installation Instructions (Undercounter Oven)
1Safe Cooking Tips (French)
2Cooktop
3WP8286816 Whirlpool Burner Cap
3WP8286817 Whirlpool Burner Cap
3WP8286818 Whirlpool Burner Cap
4WP8287314 Whirlpool Burner Grate
4Grate, Burner (Right)
5Grate, Center
6WPW10132192 Whirlpool Knob
6W10132191 Whirlpool Knob
7WP8287072 Whirlpool Burner Base
8WP8286814 Whirlpool Burner Head
8WP8286815 Whirlpool Burner Head
8WP8286813 Whirlpool Burner Head
9WPW10153033 Whirlpool Head Burner
10WP8287059 Whirlpool Screw
11Beauty Ring, Ctr Brn
12WPW10163407 Whirlpool Burner Head
13Insulation
14Badge (Stainless)
158286854 Whirlpool Oven Grommet
