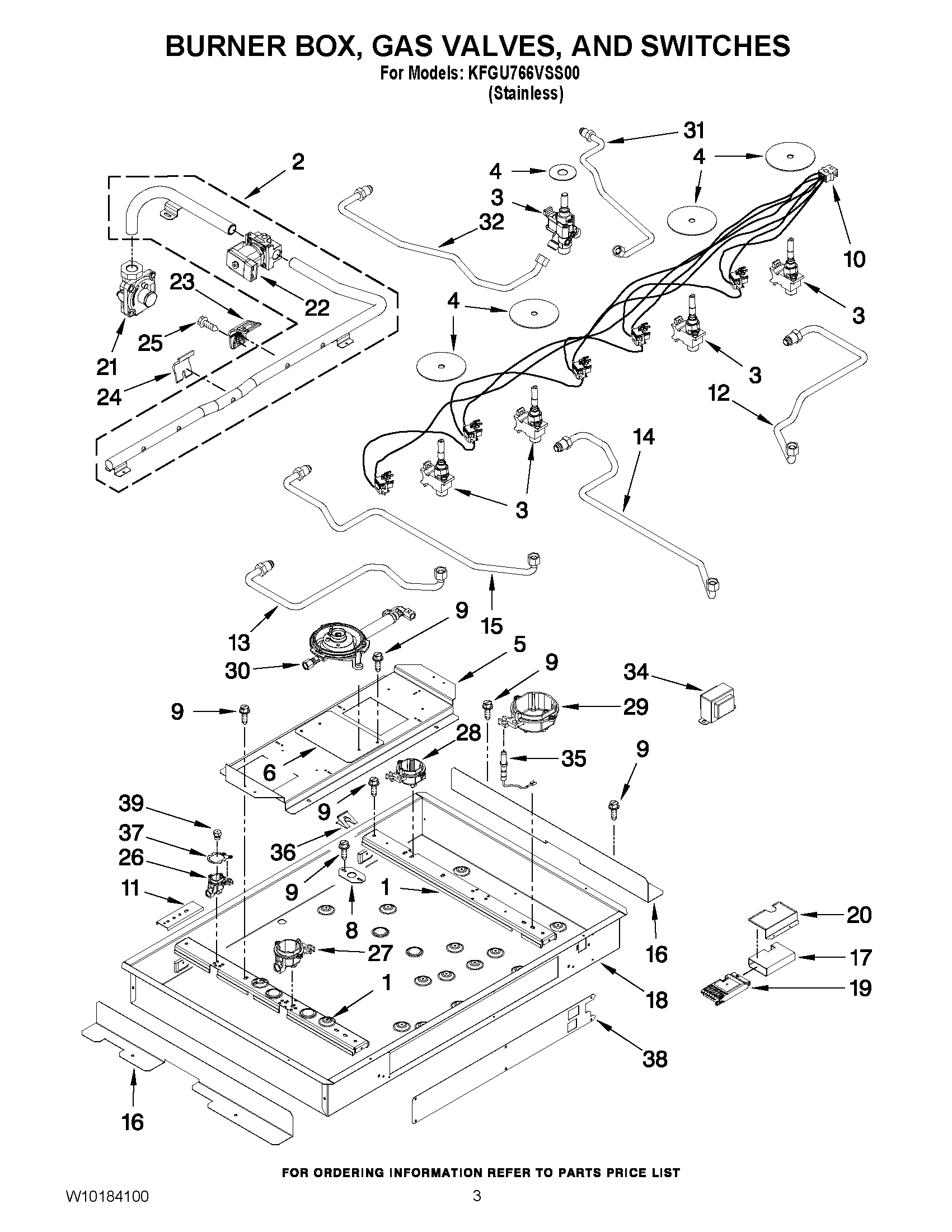

KFGU766VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1RAIL, BURNER (RIGHT)
1RAIL, BURNER (LEFT)
2Pipe, Manifold
38286916 Whirlpool Gas Valve
38286919 Whirlpool Gas Valve
3VALVE, SINGLE (LEFT FRONT)
3WP8287058 Whirlpool Gas Valve
4W10140577 Whirlpool Switch Seal
4W10140571 Whirlpool Seal Switch
5Rail, Center
6Plate, Center Brnr
88286858 Whirlpool Cover Plate
9W10491985 Whirlpool Screw
10HARNESS, SWITCH
118186533 Whirlpool Hardware
12Tubing, Gas Burner (RF)
13Tubing, Gas Burner (LF)
14Tubing, Gas Burner (RR)
15Tubing, Gas Burner (LR)
16SHIELD, HEAT
17MODULE, REIGNITION
18Burner Box
19INSULATION, REIGNITION MODULE
20COVER,REIGNIT.MDL.
21W11087445 Whirlpool Pressure Regulator
22W10368615 Whirlpool Solenoid Valve
238287055 Whirlpool Oven Mounting Bracket
248287056 Whirlpool Oven Mounting Bracket
258287057 Whirlpool Oven Screw
268286820 Whirlpool Oven Orifice Holder
27W10140569 Whirlpool Orifice Holder
28W10140570 Whirlpool Orifice Holder
29HOLDER, ORIFICE (12K) (RIGHT FRONT)
30Orific Hld 20K Ctr
31PIPE,EXT. CROWN
32PIPE,INT. CROWN
34TRANSFORMER
35WPW10560001 Whirlpool Surface Igniter
35WPL 8286724
35W10854967 Whirlpool Surface Igniter
358286723 Whirlpool Surface Igniter
368286863 Whirlpool Oven Clip
378286930 Whirlpool Oven Gasket
378286932 Whirlpool Gasket
37WPL 8286931
38COVER, PLATE
39W10791072 Whirlpool Orifice Spud
39W10791076 Whirlpool Spud Orifice
39W10791614 Whirlpool Orifice Spud
39W10151350 Whirlpool Spud Orifice
39W10791081 Whirlpool Orifice Spud
