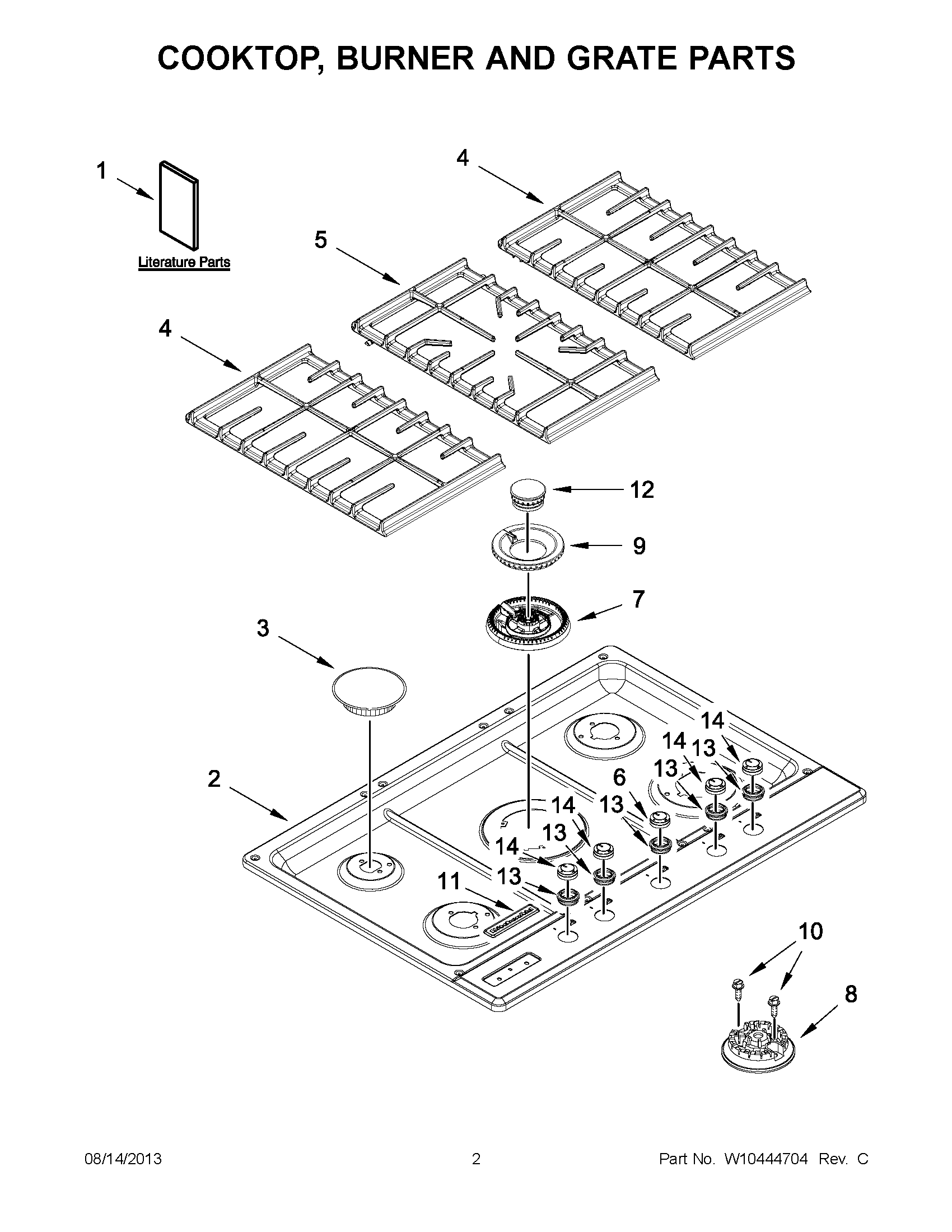

KFGU766VSS02 01 – COOKTOP, BURNER AND GRATE PARTS

KFGU766VSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KFGU766VSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2COOKTOP (STAINLESS)
3WP8286816 Whirlpool Burner Cap
3WP8286817 Whirlpool Burner Cap
3WP8286818 Whirlpool Burner Cap
4Grate, Burner (Right)
4WP8287314 Whirlpool Burner Grate
5Grate, Center
6W10132191 Whirlpool Knob
7W10836409 Whirlpool Burner Head
8WP8286814 Whirlpool Burner Head
8WP8286813 Whirlpool Burner Head
8WP8286815 Whirlpool Burner Head
9W10846732 Whirlpool Burner Cap
10WP8287059 Whirlpool Screw
11WPW10243391 Whirlpool Refrigerator Nameplate
12WPW10398575 Whirlpool Burner Cap
138286854 Whirlpool Oven Grommet
14WPW10132192 Whirlpool Knob
