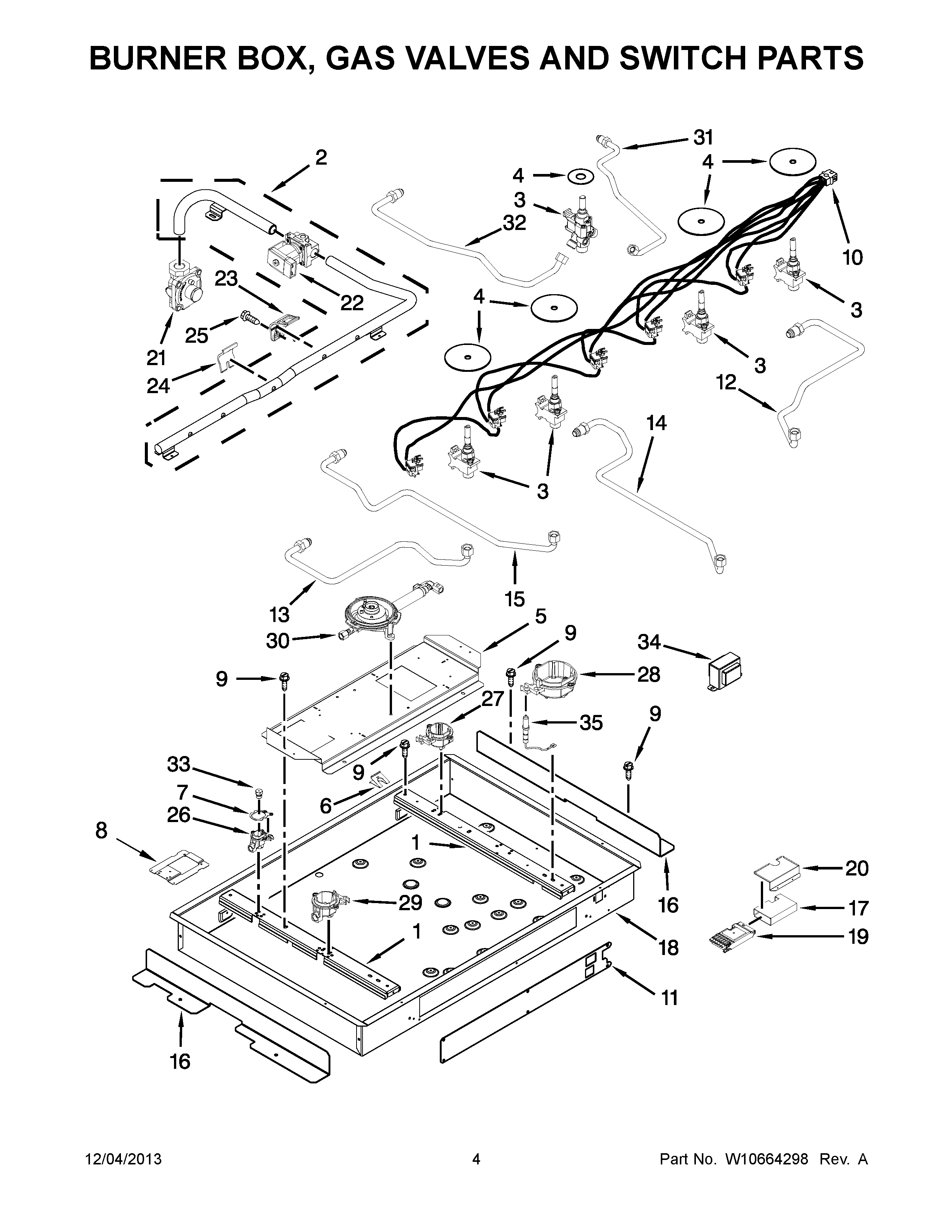

KFGU766VSS04 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

KFGU766VSS04 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

KFGU766VSS04 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
1RAIL, BURNER (LEFT)
1RAIL, BURNER (RIGHT)
2MANIFOLD
3WP8287058 Whirlpool Gas Valve
3VALVE, SINGLE (LEFT FRONT)
38286919 Whirlpool Gas Valve
38286916 Whirlpool Gas Valve
4W10140577 Whirlpool Switch Seal
4W10140571 Whirlpool Seal Switch
5RAIL, CENTER
68286863 Whirlpool Oven Clip
78286930 Whirlpool Oven Gasket
78286932 Whirlpool Gasket
7WPL 8286931
8BRACKET, MOUNTING DUAL RING BURNER
9W10491985 Whirlpool Screw
10HARNESS, SWITCH
11COVER, PLATE
12TUBING, GAS BURNER (RIGHT FRONT)
13TUBING, GAS BURNER (LEFT FRONT)
14TUBING, GAS BURNER (RIGHT REAR)
15TUBING, GAS BURNER (LEFT REAR)
16SHIELD, HEAT
17MODULE, REIGNITION
18Burner Box
19INSULATION, REIGNITION MODULE
20COVER, REIGNITION MODULE
21W11087445 Whirlpool Pressure Regulator
22W10368615 Whirlpool Solenoid Valve
238287055 Whirlpool Oven Mounting Bracket
248287056 Whirlpool Oven Mounting Bracket
258287057 Whirlpool Oven Screw
268286820 Whirlpool Oven Orifice Holder
27W10140569 Whirlpool Orifice Holder
28W10140570 Whirlpool Orifice Holder
29HOLDER, ORIFICE (12K) (RIGHT FRONT)
30W10617290 Whirlpool Orifice Holder
31TUBE, OUTER CROWN (CENTER)
32TUBE, INNER CROWN (CENTER)
33W10791614 Whirlpool Orifice Spud
33W10791072 Whirlpool Orifice Spud
33W10791081 Whirlpool Orifice Spud
33W10151350 Whirlpool Spud Orifice
34TRANSFORMER
35WPW10560001 Whirlpool Surface Igniter
35WPL 8286724
35W10854967 Whirlpool Surface Igniter
358286723 Whirlpool Surface Igniter
