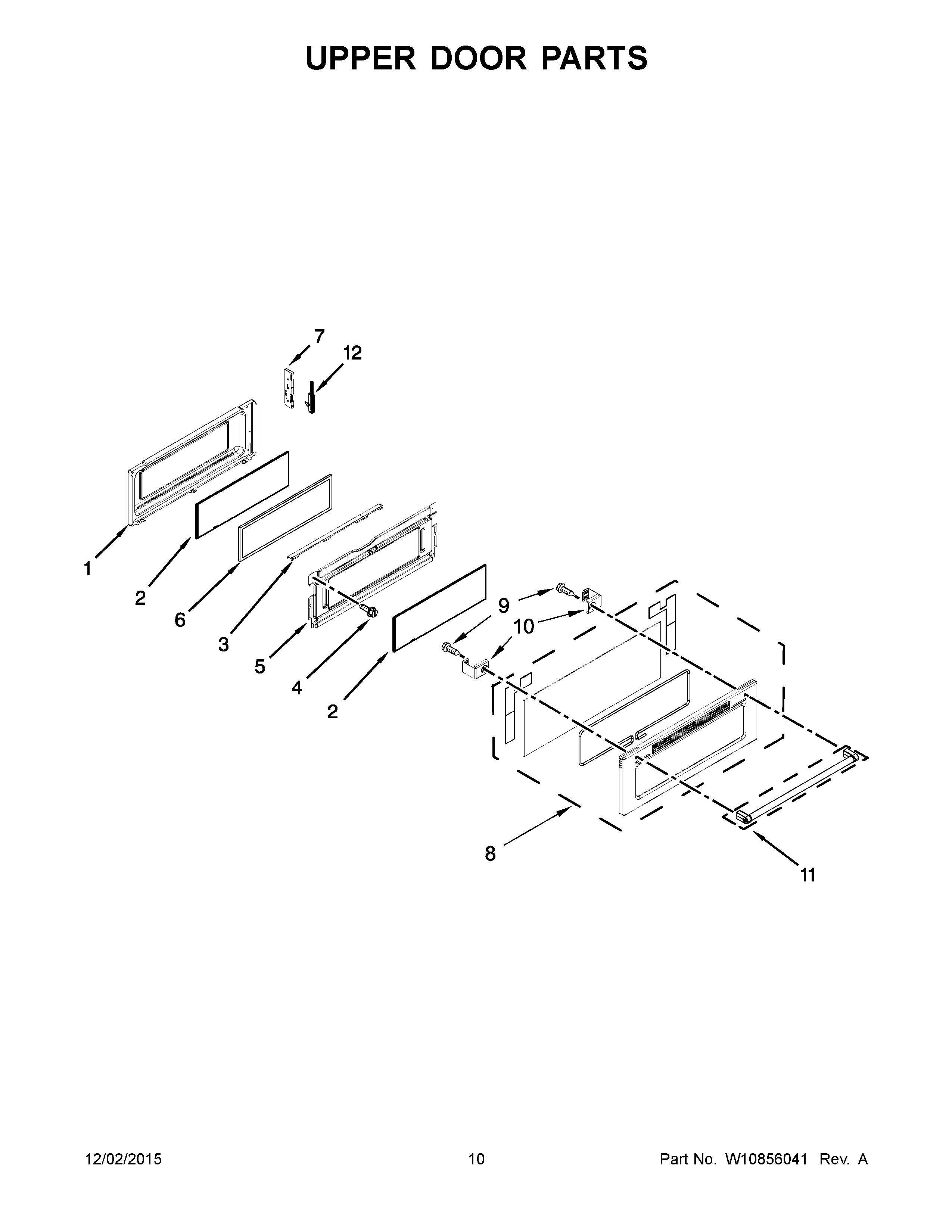

KFID500ESS01 06 – UPPER DOOR PARTS

KFID500ESS01 06 – UPPER DOOR PARTS

Written by

in

KFID500ESS01 06 – UPPER DOOR PARTS

Products

PositionProduct
1W11103615 Whirlpool Door Liner
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5W10485723 Whirlpool Retainer
6WPW10321271 Whirlpool Insulation Assembly
7W10647259 Whirlpool Hinge Receiver
8W10777615 Whirlpool Door Glass Assembly
9W10831019 Whirlpool Stove Door Screw
10W10645182 Whirlpool Mounting Bracket
11W11305108 Whirlpool Door Handle
12AWPW10485732 Whirlpool Door Hinge
12WPW10485733 Whirlpool Door Hinge
