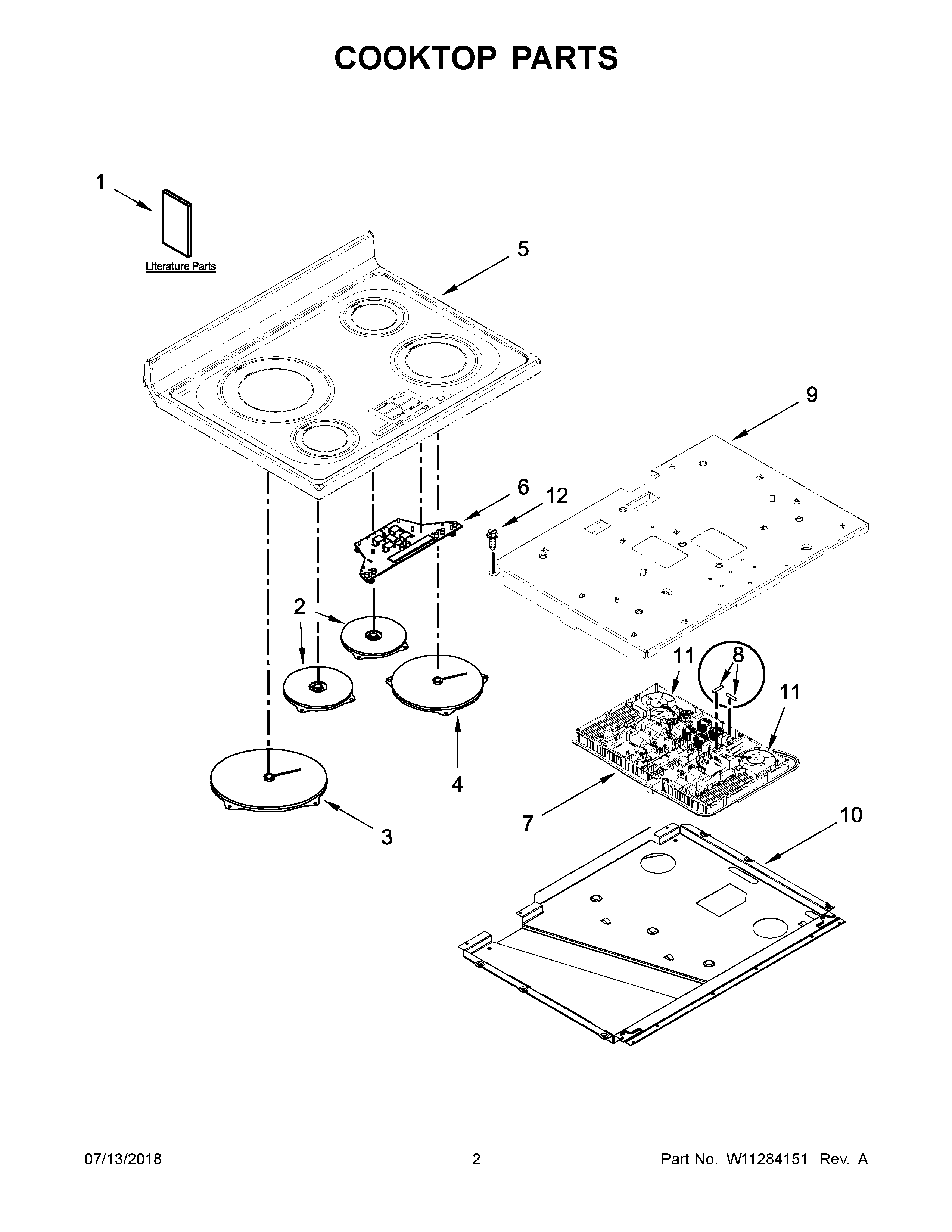

KFID500ESS02 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11172529 Whirlpool Wire Harness
NI	W11172531 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	WPL 8019P01360
NI	W11171882 Whirlpool Wire Harness
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1D	Safer Cooking Tips (French)
1	GUIDE, USE & CARE
1C	SAFER COOKING TIPS (ENGLISH
2	WPW10410580 Whirlpool Hot Plate
3	WPW10460400 Whirlpool Hot Plate
4	WPW10536262 Whirlpool Hot Plate
5	W10777613 Whirlpool Cooktop
6	W10818273 Whirlpool Display
7	W10886865 Whirlpool Module Assembly
8	WPW10328492 Whirlpool Thermal Fuse
9	W10454938 Whirlpool Plate
10	ASSEMBLY, INDUCTION PAN
11	W10328381 Whirlpool Fan Blower Assembly
11A	W10328378 Whirlpool Blower Fan Assembly
12	4450800 Whirlpool Oven Screw
