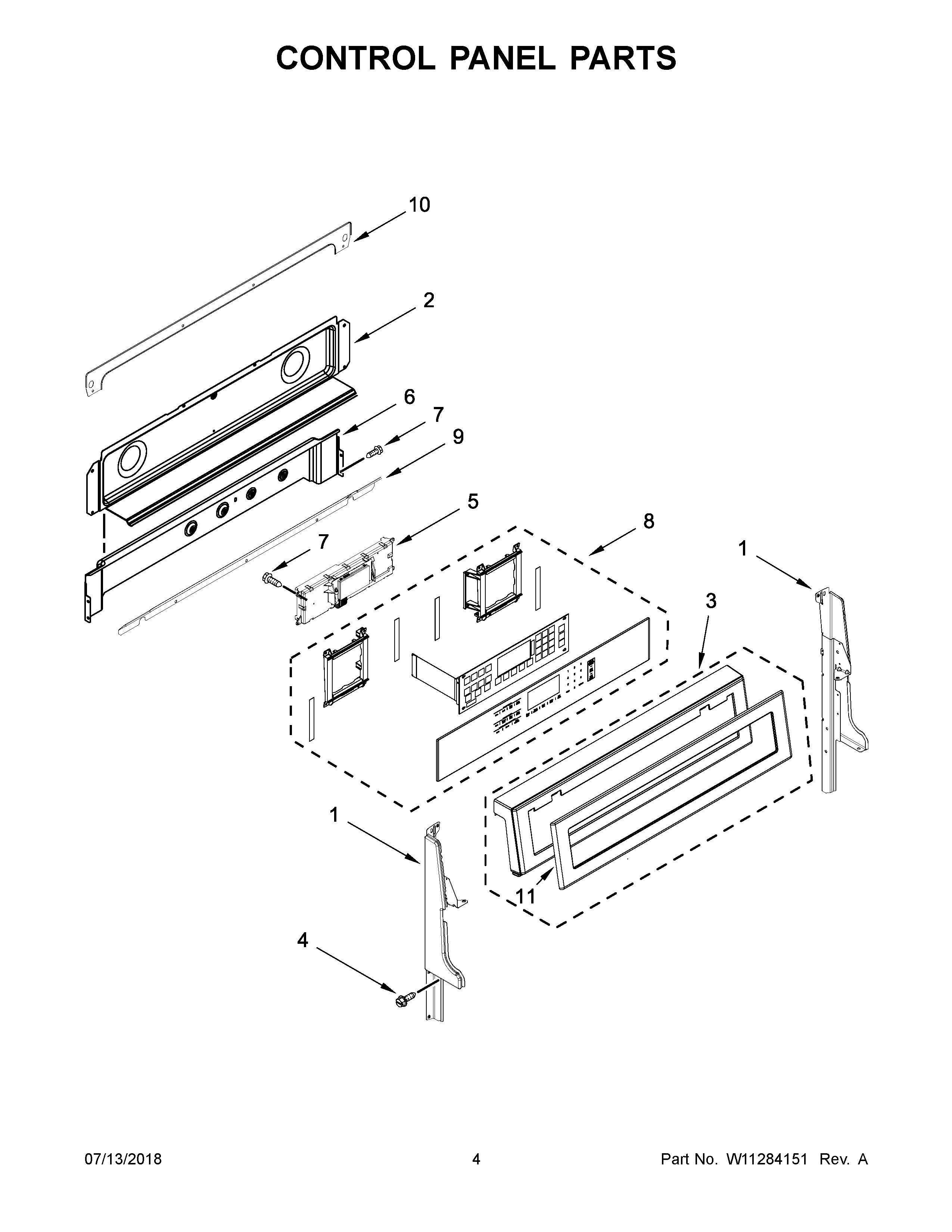

KFID500ESS02 03 – CONTROL PANEL PARTS

KFID500ESS02 03 – CONTROL PANEL PARTS

Written by

in

KFID500ESS02 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1ASUPPORT, BACK GUARD (RIGHT HAND)
2W10776098 Whirlpool Rear Cover
3W11164063 Whirlpool Control Panel
4Screw
5WPW10648866-includeCORE Whirlpool WPW10648866 Refrigerator Electronic Control Board + Core
6W10278697 Whirlpool Vent Shield Assembly
7W11245710 Whirlpool Refrigerator Screw
8W10692425 Whirlpool Membrane Switch
10WPW10292689 Whirlpool Wire Cover
11CABINET (NOT A SERVICEABLE PART)
