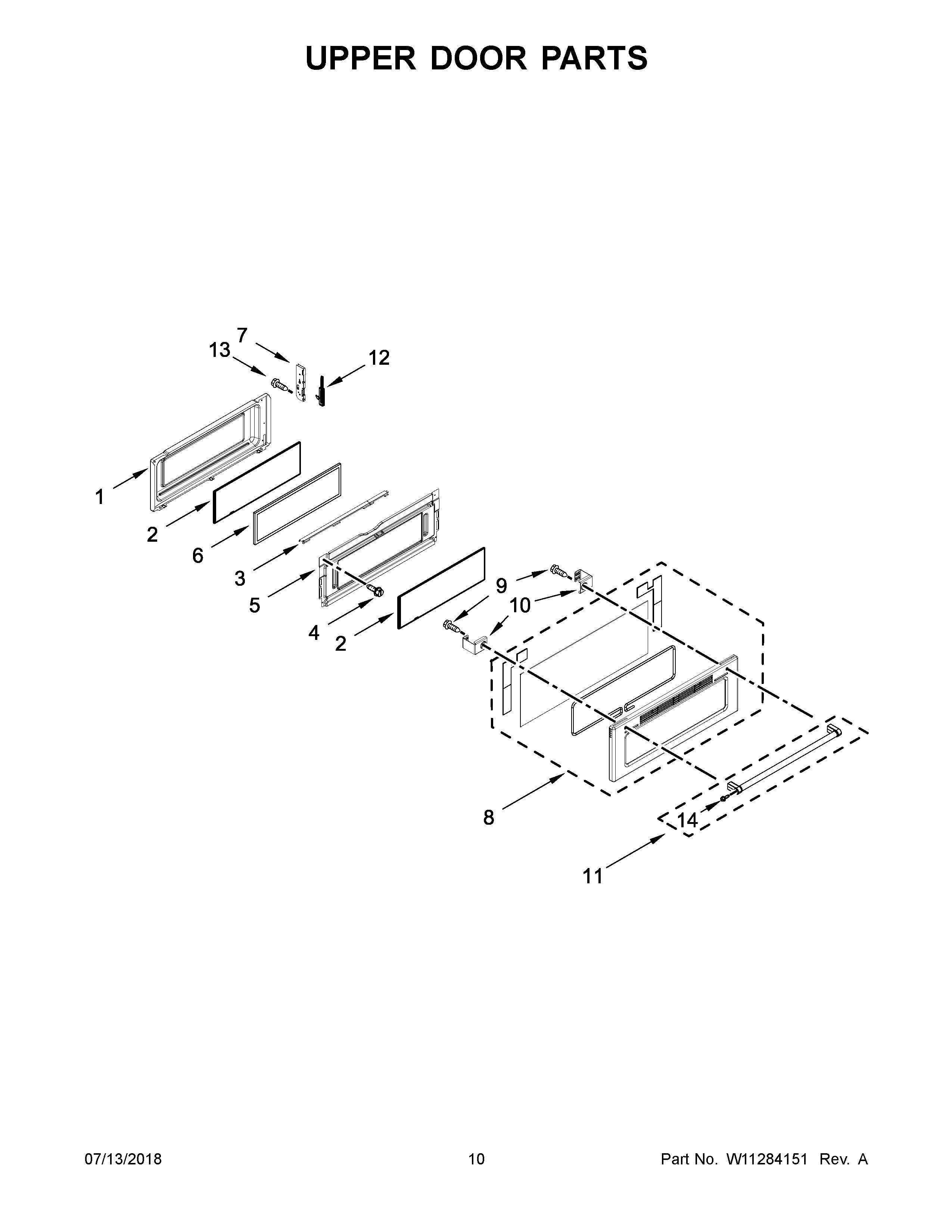

KFID500ESS02 06 – UPPER DOOR PARTS

Products

Position	Product
1	W11103615 Whirlpool Door Liner
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	W10485723 Whirlpool Retainer
6	WPW10321271 Whirlpool Insulation Assembly
7	W10647259 Whirlpool Hinge Receiver
8	W10777615 Whirlpool Door Glass Assembly
9	W10831019 Whirlpool Stove Door Screw
10	W10645182 Whirlpool Mounting Bracket
11	W11305108 Whirlpool Door Handle
12A	WPW10485732 Whirlpool Door Hinge
12	WPW10485733 Whirlpool Door Hinge
13	W10777162 Whirlpool Screw
14	W10920281 Whirlpool Screw
