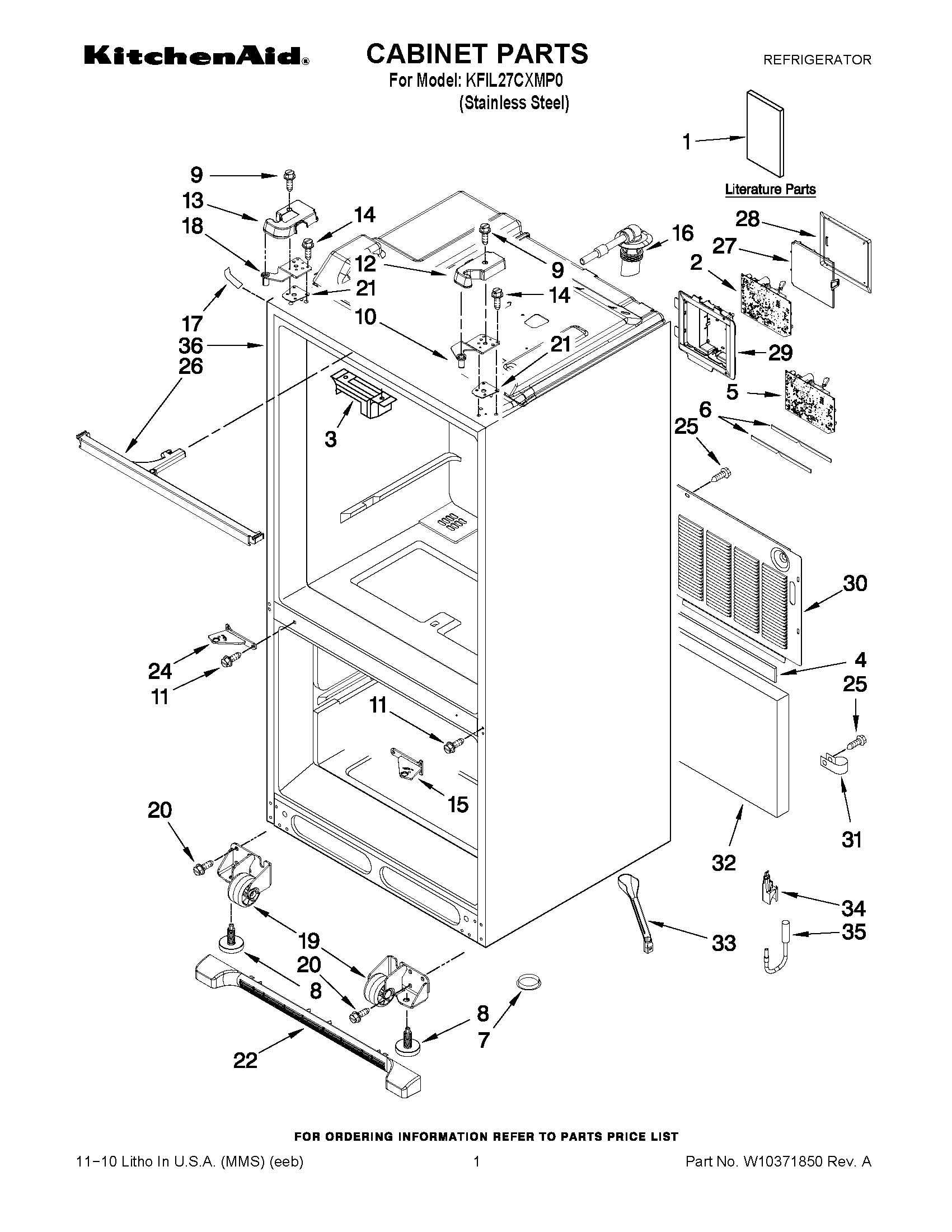

KFIL27CXMP0 01 – CABINET PARTS

Products

PositionProduct
1TAG, ENERGY
1TECH SHEET
1OWNERS MANUAL
2WPW10226427 Whirlpool Refrigerator Electronic Control Board
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10267646 Whirlpool Refrigerator Electronic Control Board
6GASKET-HV CNTRL-2
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10W11592374 Whirlpool Refrigerator Top Door Hinge
11WP67006380 Whirlpool Screw
12COVER, RIGHT HINGE (APOLLO GREY)
13COVER, LEFT HINGE (STAINLESS)
14WP489349 Whirlpool Refrigerator Screw
16FILL TUBE, ICEMAKER
17WP12587703AP Whirlpool Refrigerator Filler
18W10213415 Whirlpool Refrigerator Door Hinge
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
2112999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
24W10917988 Whirlpool Refrigerator Door Hinge
2567006425 Whirlpool Refrigerator Screw
26COVER, WATER LINE (APOLLO GREY)
27W11226688 Whirlpool Refrigerator Cover
2812961602 Whirlpool Refrigerator Wire Cover
29WPL W10159461
30WPW10270394 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32INSULATION, SOUND
33W10619951 Whirlpool Drain Tube with Grommet
34COVE
35WPL W10223786
36CABINET (NOT A SERVICEABLE PART)
