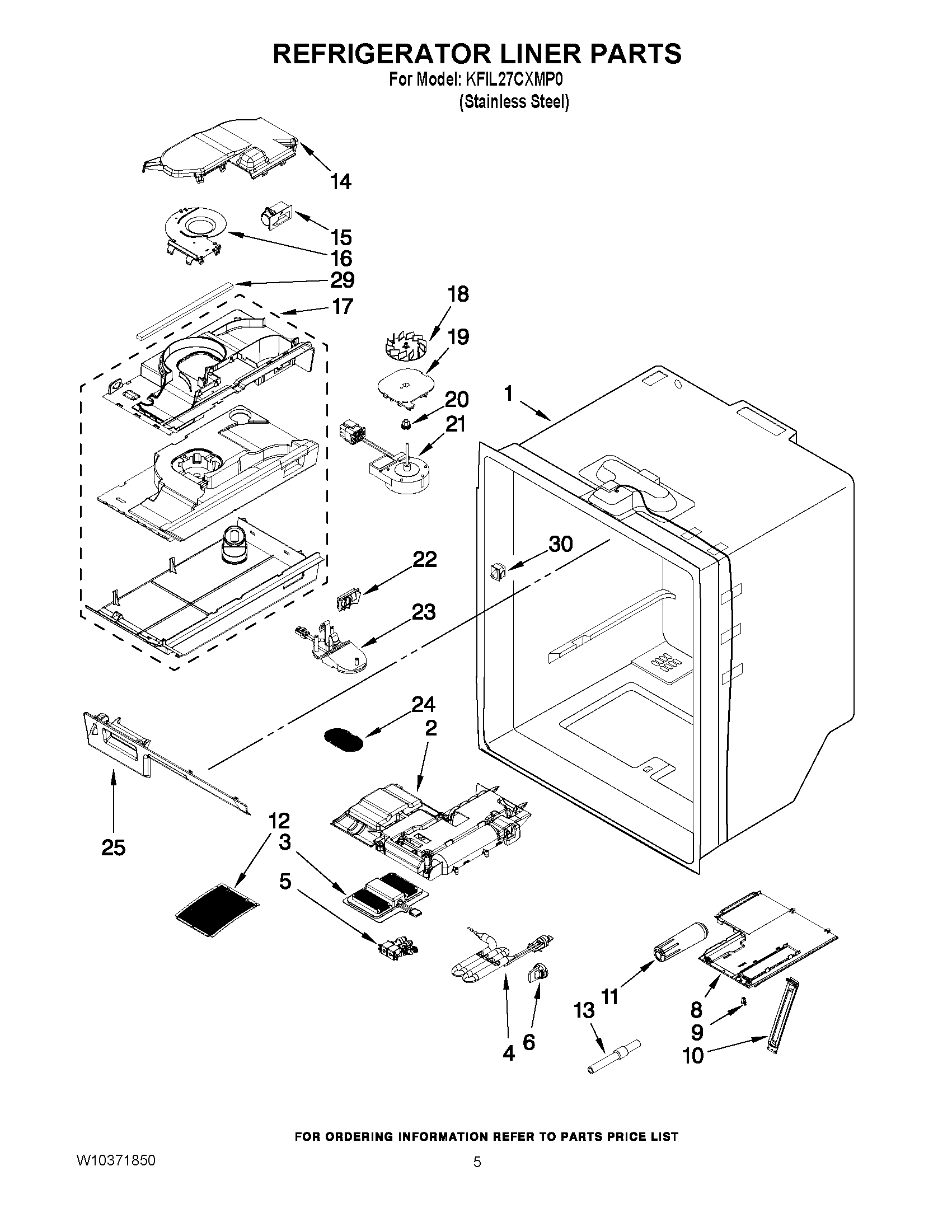

KFIL27CXMP0 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	HARNESS, RC LIGHTS (INCLUDES THERMISTOR)
2	BRACKET, WATER SYSTEM
3	W11125428 Whirlpool Electronic Control Board + Core
4	WPW10216070 Whirlpool Refrigerator Reservoir
5	WP12956105 Whirlpool Refrigerator Valve
6	W11395888 Whirlpool Refrigerator Bypass Filter Cap
8	COVER, WATER SYSTEM
9	WP2223877 Whirlpool Door Hook
10	DOOR, FILTER ACCESS
11	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
12	LENS, REFRIGERATOR LED
13	WATERLINE, VALVE TO HINGE
14	DUCT, SCROLL INLET
15	WPW10247377 Whirlpool Refrigerator Control
16	PLATE, SCROLL INLET
17	CABINET (NOT A SERVICEABLE PART)
18	WPW10123444K Whirlpool Refrigerator Wheel
19	BRACKET, MOTOR
20	WP67002780 Whirlpool Refrigerator Grommet
21	W11334745 Whirlpool Refrigerator Evaporator Fan Motor
22	GRILLE, REF AIR
23	W10679370 Whirlpool Refrigerator Module
24	W10237349 Whirlpool Refrigerator Light Lens
25	FASCIA ASSEMBLY (INCLUDES DOOR, SWITCH, & SPRING)
29	GASKET, ICEBOX (SHORT)
30	W11396033 Whirlpool Refrigerator Rocker Switch
100	ICEBOX ASSEMBLY, COMPLETE
