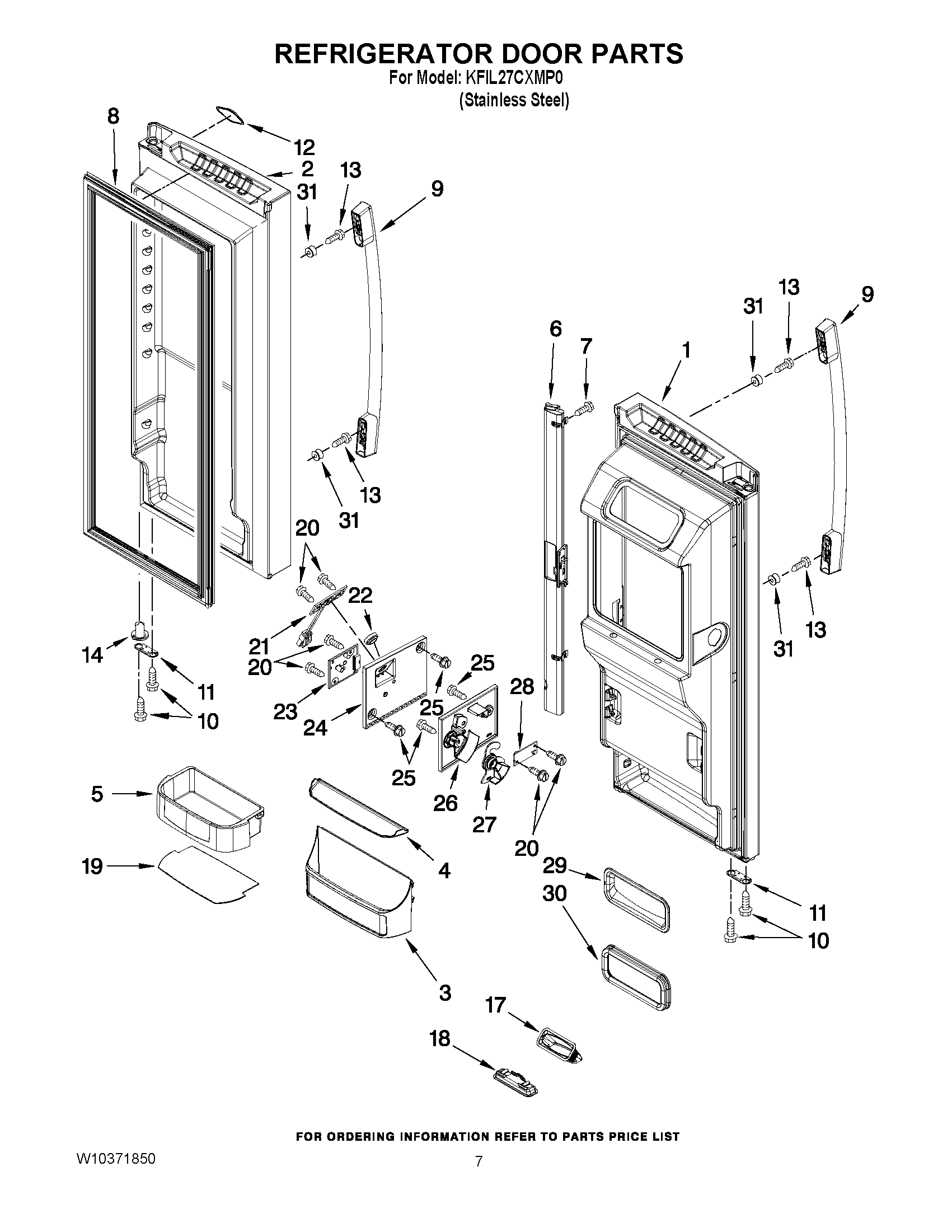

KFIL27CXMP0 04 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:33:03+00:00KFIL27CXMP0 04 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | DOOR, LEFT (STAINLESS) |
| 2 | DOOR, RIGHT (STAINLESS) |
| 3 | BUCKET, SMALL |
| 4 | GRIPPER, GALLON |
| 5 | BUCKET, DOOR GALLON (RH) (WITHOUT GRIPPER) |
| 6 | WP12722815AP Whirlpool Refrigerator Mullion Rail |
| 7 | W11311945 Whirlpool Refrigerator Screw |
| 8 | GASKET-FIP GRAY |
| 9 | WPW10319122 Whirlpool Refrigerator Handle |
| 10 | WP98165 Whirlpool Screw |
| 11 | W11703060 Whirlpool Door Stop |
| 12 | WPW10320959 Whirlpool Dishwasher Nameplate |
| 13 | SCREW |
| 14 | WP12028505AP Whirlpool Closing Cam |
| 17 | CHUTE, ICE DOOR |
| 18 | LATCH, ICE BIN |
| 19 | GRIPPER |
| 20 | 2006254 Whirlpool Refrigerator Screw |
| 21 | WPW10305123 Whirlpool Refrigerator Electronic Control Board |
| 22 | LENS, ICE BIN LED |
| 23 | BOARD, RECEIVER |
| 24 | COVER, RECEIVER |
| 25 | WP3400065 Whirlpool Refrigerator Screw |
| 26 | COVER, EMITTER |
| 27 | SHUTOFF, EMITTER |
| 28 | W10870822 Whirlpool Refrigerator Electronic Control Board |
| 29 | SEAL, ICE DOOR |
| 30 | GASKET, ICE CHUTE |
| 31 | WP67006113 Whirlpool Stud Bolt |
