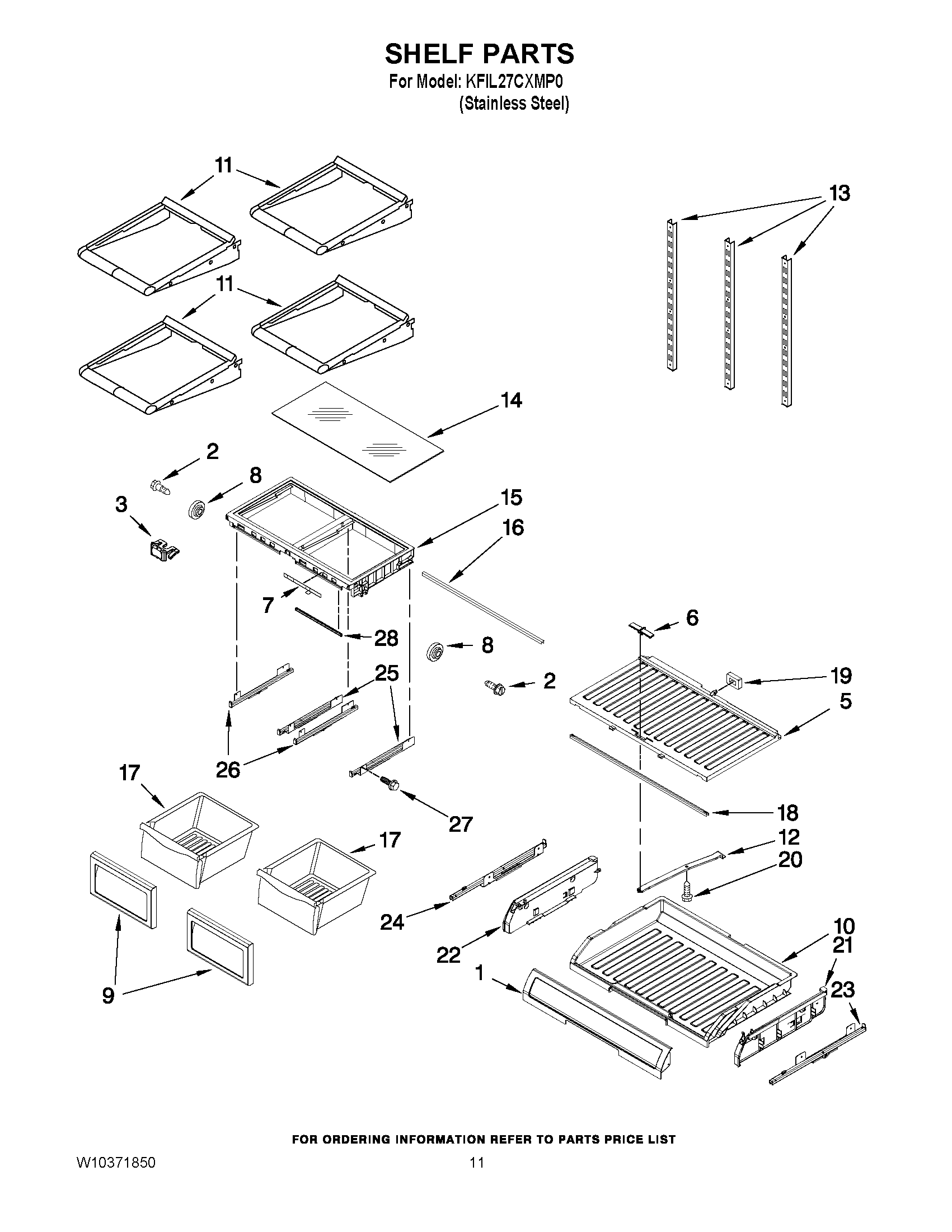

KFIL27CXMP0 06 – SHELF PARTS

Products

PositionProduct
1LID ASSEMBLY, PANTRY
267006692 Whirlpool Refrigerator Screw
3W10119222 Whirlpool Refrigerator Control Knob
5PANTRY, TOP
6KNOB, PANTRY TEMP
7W10119217 Whirlpool Refrigerator Slide
8ROLLER, CRISPER FRAME
9FRONT, CRISPER
10PAN, PANTRY
11W10205737 Whirlpool Refrigerator Glass Shelf
12ARM, PANTRY CONTROL
13LADDER (3)
14GLASS, CRISPER
15FRAME, CRISPER
16W10490807 Whirlpool Refrigerator Support
17PAN, CRISPER (2)
18WP12227305WD Whirlpool Drawer Support
19GASKET, PANTRY
20SCREW
21ENDCAP, PANTRY(RH)
22ENDCAP, PANTRY(LH)
23W10132652 Whirlpool Refrigerator Glide
24WPW10132653 Whirlpool Refrigerator Glide
25GLIDE-CRISPER-R
26GLIDE-CRISPER-L
2767006425 Whirlpool Refrigerator Screw
28GASKET-PAN COVER
