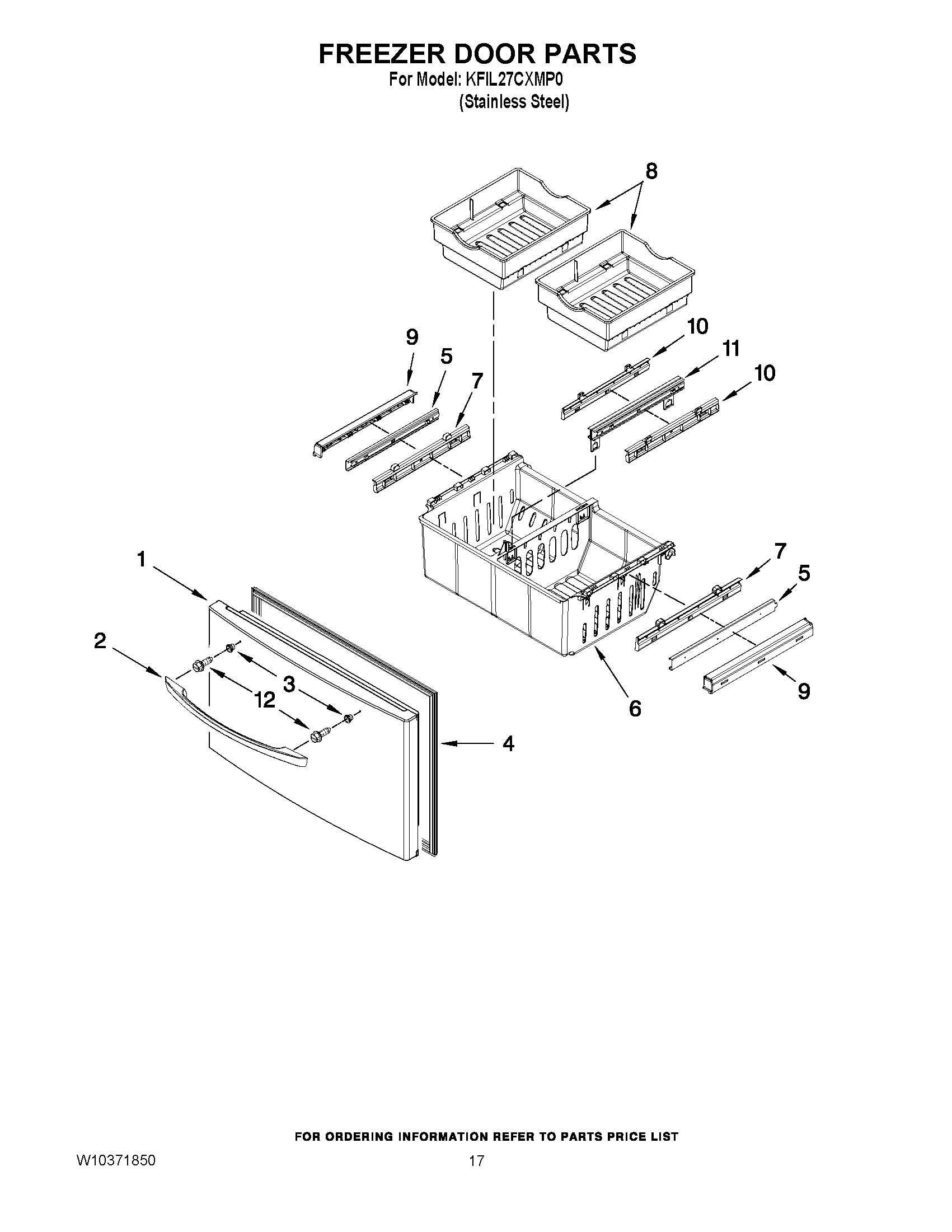

KFIL27CXMP0 09 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (STAINLESS)
2	HANDLE, DOOR (STAINLESS)
3	WP67006113 Whirlpool Stud Bolt
4	GASKET-FIP
5	WPW10235367 Whirlpool Refrigerator Glide
6	WP67006366 Whirlpool Refrigerator Lower Bin
7	W10166742 Whirlpool Refrigerator Bracket
8	WP12924903 Whirlpool Refrigerator Freezer Bin
9	WP67006368 Whirlpool Refrigerator Retainer
9	W10826788 Whirlpool Refrigerator Retainer
10	12925404SP Whirlpool Refrigerator Bracket
11	WPW10235357 Whirlpool Refrigerator Glide Assembly
12	SCREW
