KFIL27CXMS2 03 – REFRIGERATOR LINER PARTS
Written by
in

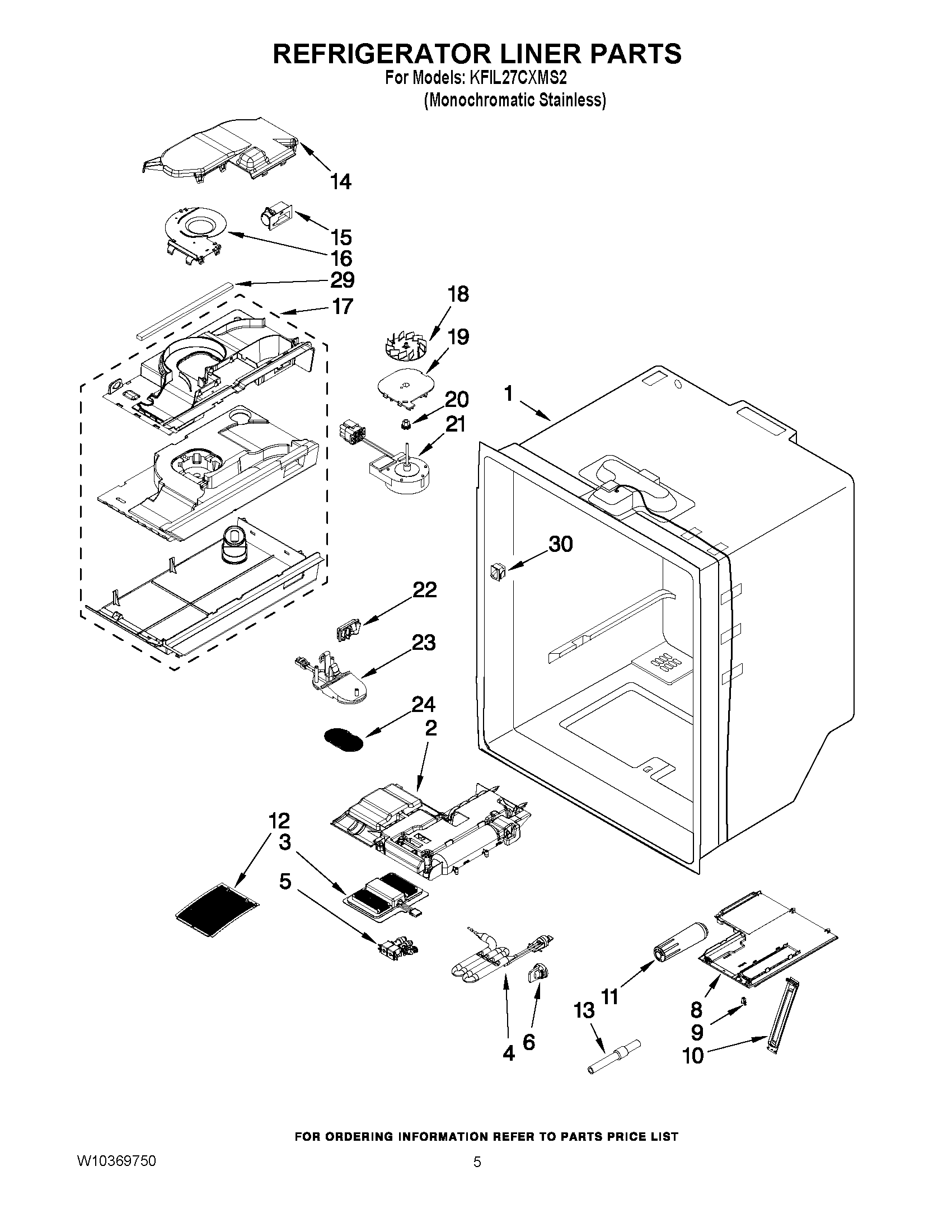

KFIL27CXMS2 03 – REFRIGERATOR LINER PARTS
Products
Position
Product
NI
HARNESS, RC LIGHTS (INCLUDES THERMISTOR)
2
BRACKET, WATER SYSTEM
3
W11125428 Whirlpool Electronic Control Board + Core
4
WPW10216070 Whirlpool Refrigerator Reservoir
5
WP12956105 Whirlpool Refrigerator Valve
6
W11395888 Whirlpool Refrigerator Bypass Filter Cap
8
COVER, WATER SYSTEM
9
WP2223877 Whirlpool Door Hook
10
DOOR, FILTER ACCESS
11
everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
12
LENS, REFRIGERATOR LED
13
WATERLINE, VALVE TO HINGE
14
DUCT, SCROLL INLET
15
WPW10247377 Whirlpool Refrigerator Control
16
PLATE, SCROLL INLET
17
CABINET (NOT A SERVICEABLE PART)
18
WPW10123444K Whirlpool Refrigerator Wheel
19
BRACKET, MOTOR
20
WP67002780 Whirlpool Refrigerator Grommet
21
W11334745 Whirlpool Refrigerator Evaporator Fan Motor
22
GRILLE, REF AIR
23
W10679370 Whirlpool Refrigerator Module
24
W10237349 Whirlpool Refrigerator Light Lens
29
GASKET, ICEBOX (SHORT)
30
W11396033 Whirlpool Refrigerator Rocker Switch
100
ICEBOX ASSEMBLY, COMPLETE
←
