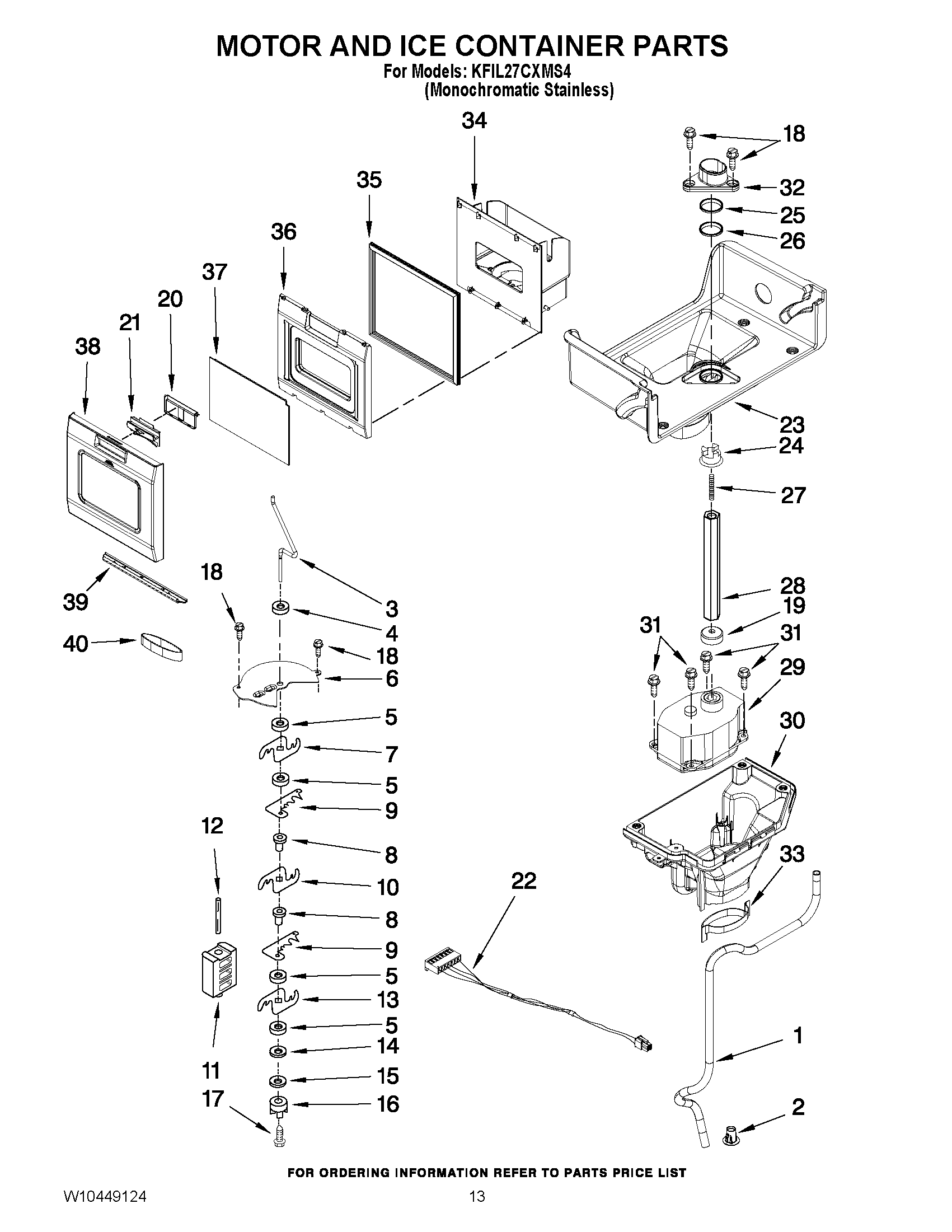

KFIL27CXMS4 07 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	TUBE, DRAIN
2	W10562834 Whirlpool Refrigerator Clip
3	AUGER
4	Washer
5	SPACER, FLAT
6	COVER, CRUSHER
7	BLADE, ROTARY C
8	SPACER, STEP
9	Blade, Fixed
10	W10341943 Whirlpool Blade
11	W10178238 Whirlpool Blade Block
12	W10166878 Whirlpool Roll Pin
13	BLADE, ROTARY A
14	WP489235 Whirlpool Refrigerator Washer
15	WP2198661 Whirlpool Refrigerator Washer
16	WP2220457 Whirlpool Refrigerator Ice Bin Coupling
17	WP8281164 Whirlpool Refrigerator Screw
18	WP3400065 Whirlpool Refrigerator Screw
19	2323357 Whirlpool Refrigerator Washer
20	COVER, LATCH
21	SPRING, LATCH
22	W10291014 Whirlpool Refrigerator Wire Harness
23	COVER, MOUNTING PLATE
24	WP2220458 Whirlpool Drive Cam
25	WP2198628 Whirlpool Door Seal
26	WP2212370 Whirlpool Washer
27	W10852956 Whirlpool Refrigerator Spring
28	SHAFT, MOTOR
29	WP2323603 Whirlpool Refrigerator Motor
30	HOUSING, AUGER MOTOR
31	WP8281163 Whirlpool Refrigerator Screw
32	CLIP, SHAFT
33	GASKET, MOTOR BOX
34	CONTAINER, ICE
35	GASKET, ICE CONTAINER
36	EPS, ICE CONTAINER
37	WINDOW, ICE CONTAINER
38	FRONT, ICE CONTAINER
39	HINGE, ICE BUCKET
40	GASKET, CHUTE
100	CONTAINER, ICE (COMPLETE)
