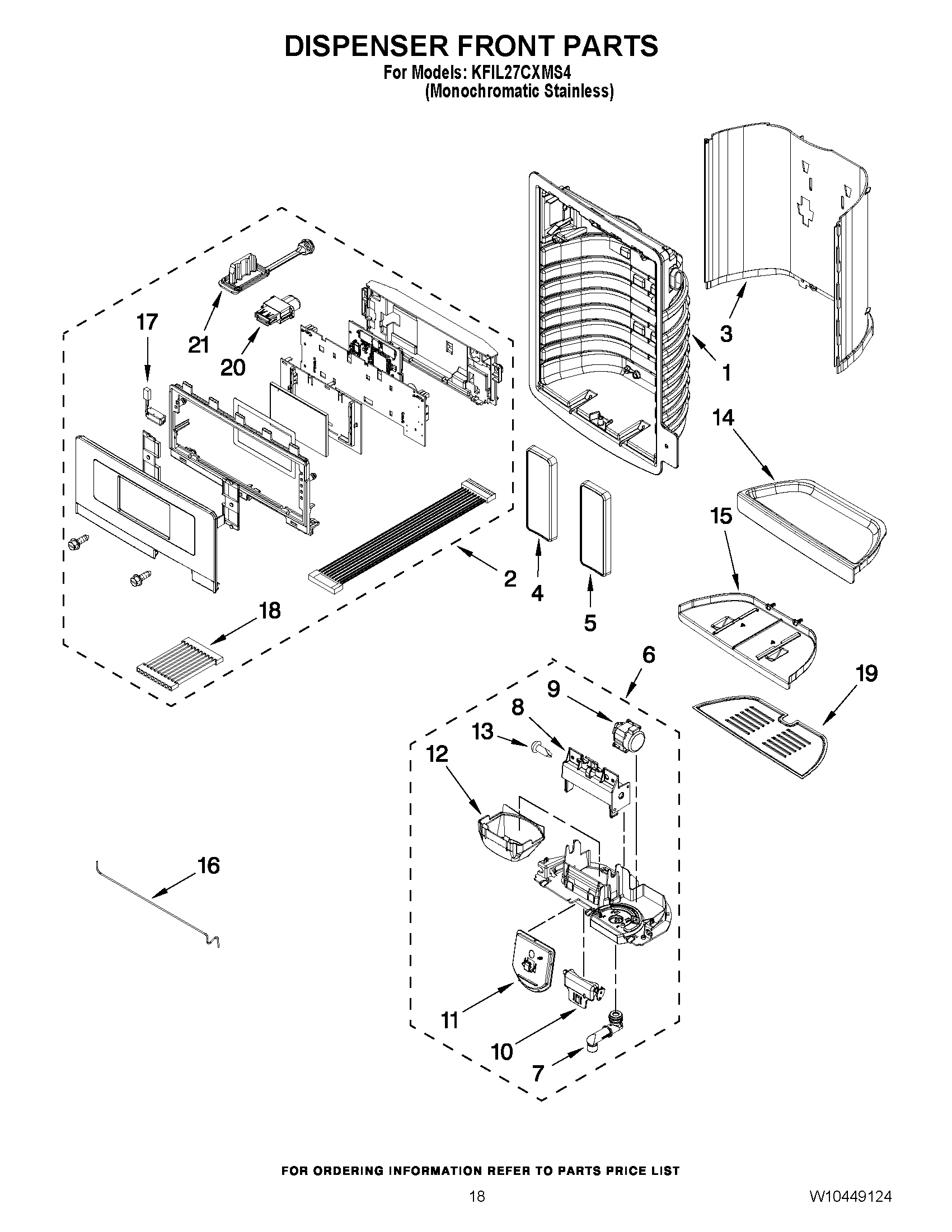

KFIL27CXMS4 10 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	UI ASSEMBLY (STAINLESS)
3	W10305890 Whirlpool Refrigerator Shield
4	WPW10368730 Whirlpool Refrigerator Pad
5	PAD, WATER DISPENSER (APOLLO GRAY)
6	WPW10353552 Whirlpool Refrigerator Separator
7	W11227371 Whirlpool Refrigerator Spigot
8	W10174827 Whirlpool Refrigerator Bracket
9	WPW10205979 Whirlpool Refrigerator Ice Door Motor
10	WPW10346124 Whirlpool Refrigerator Support
11	WPW10317279 Whirlpool Refrigerator Door Chute
12	WPW10435760 Whirlpool Refrigerator Ice Guide
13	W10174818 Whirlpool Refrigerator Clip
14	WPW10305897 Whirlpool Refrigerator Drip Tray
15	WPW10267863 Whirlpool Refrigerator Drip Tray
16	TUBE, WATER (DISPENSER)
17	W11290115 Whirlpool Refrigerator Light
18	HARNESS, JUMPER
19	GRATE, DRIP
20	HARNESS, USB
21	COVER- USB
