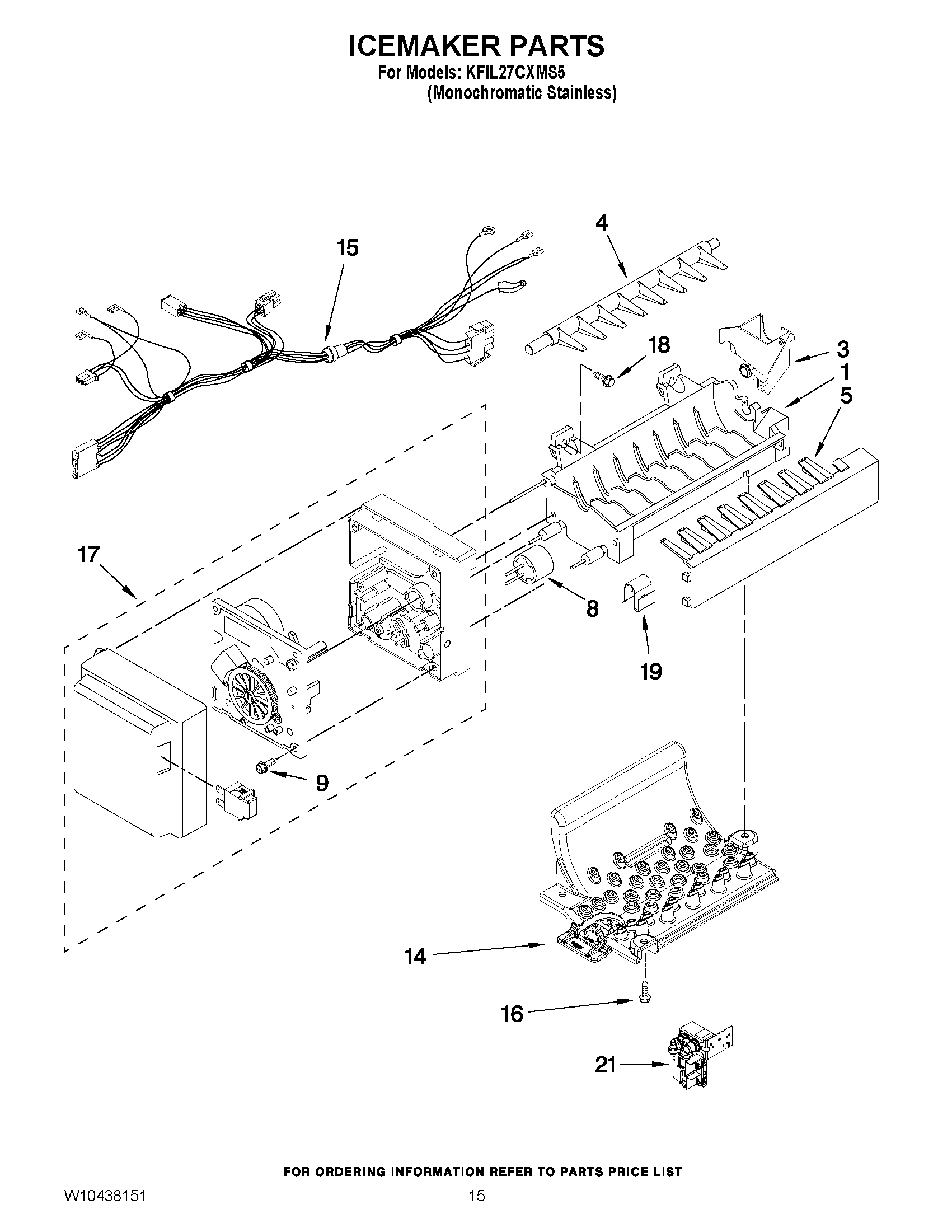

KFIL27CXMS5 08 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	W10161596 Whirlpool Refrigerator Ice Mold
3	W10160726 Whirlpool Refrigerator Cup Fill
4	W10318644 Whirlpool Refrigerator Ejector Arm
5	ICE STRIPPER
8	WP627985 Whirlpool Icemaker Cycling Thermostat
11	8533917 Whirlpool Refrigerator Screw
14	DUCT, IMPINGER TOP
15	W10384189 Whirlpool Refrigerator Wire Harness
16	67006425 Whirlpool Refrigerator Screw
17	MODULE ASSEMBLY
18	W10001240 Whirlpool Refrigerator Screw
19	WP628379 Whirlpool Refrigerator Clip
21	WPW10270395 Whirlpool Refrigerator Valve
100	ICEMAKER ASSEMBLY
