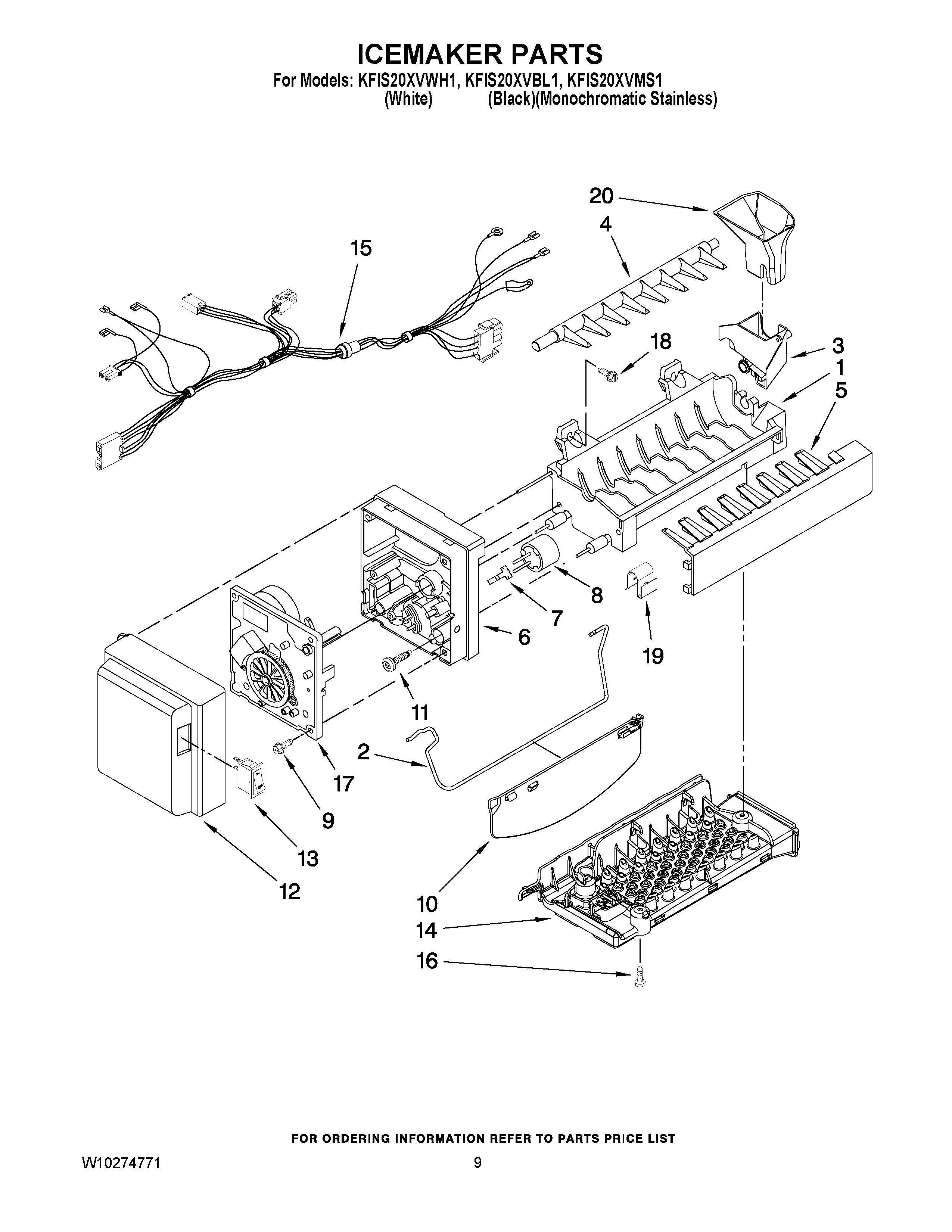

KFIS20XVBL1 05 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
2	WPW10175514 Whirlpool Refrigerator Shut-Off Arm
3	W10122561 Whirlpool Refrigerator Cup Fill
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	WP627985 Whirlpool Icemaker Cycling Thermostat
10	WPW10121440 Whirlpool Refrigerator Extension
11	8533917 Whirlpool Refrigerator Screw
12	WPW10121444 Whirlpool Refrigerator Front Cover
13	WP2313326 Whirlpool Refrigerator Switch
14	WPW10121269 Whirlpool Refrigerator Air Baffle
15	HARNESS, ICEMAKER
16	67006425 Whirlpool Refrigerator Screw
17	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
18	WP681249 Whirlpool Screw Assembly
19	WP628379 Whirlpool Refrigerator Clip
20	WPW10121434 Whirlpool Refrigerator Insert
100	WPW10190981 Whirlpool Refrigerator Icemaker
