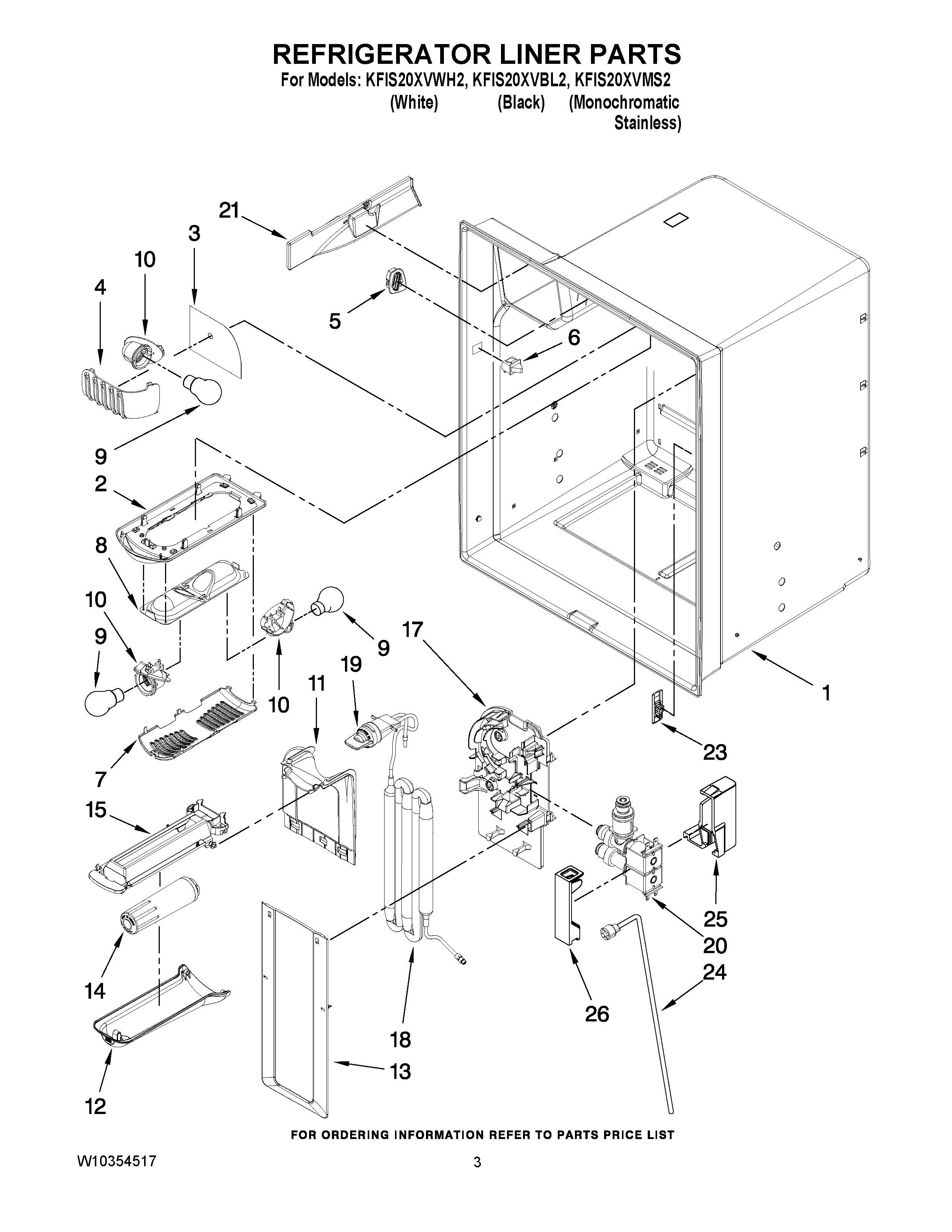

KFIS20XVBL2 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2MODULE, LIGHT
3FOIL, LIGHT
412921801 Whirlpool Refrigerator Light Cover
5W10555984 Whirlpool Refrigerator Grille
6W11396033 Whirlpool Refrigerator Rocker Switch
7COVER, LIGHT
812806601 Whirlpool Refrigerator Light Housing
9RANGE ONLY 40W 120V APPL BULB
10W11447232 Whirlpool Refrigerator Socket
1112960101 Whirlpool Refrigerator Cover
12WP67006331 Whirlpool Refrigerator Water Filter Cover
1367006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
1567006325 Whirlpool Filter Base Bracket
1767006324 Whirlpool Refrigerator Bracket
18W10502642 Whirlpool Refrigerator Reservoir
19W11395888 Whirlpool Refrigerator Bypass Filter Cap
20WPW10312696 Whirlpool Water Inlet Valve
2113033601 Whirlpool Refrigerator Wire Cover
2312987301 Whirlpool Refrigerator Cover
24WATERLINE, CABINET (W/NUT)
25W10118193 Whirlpool Refrigerator Cover
26W10118194 Whirlpool Refrigerator Cover
