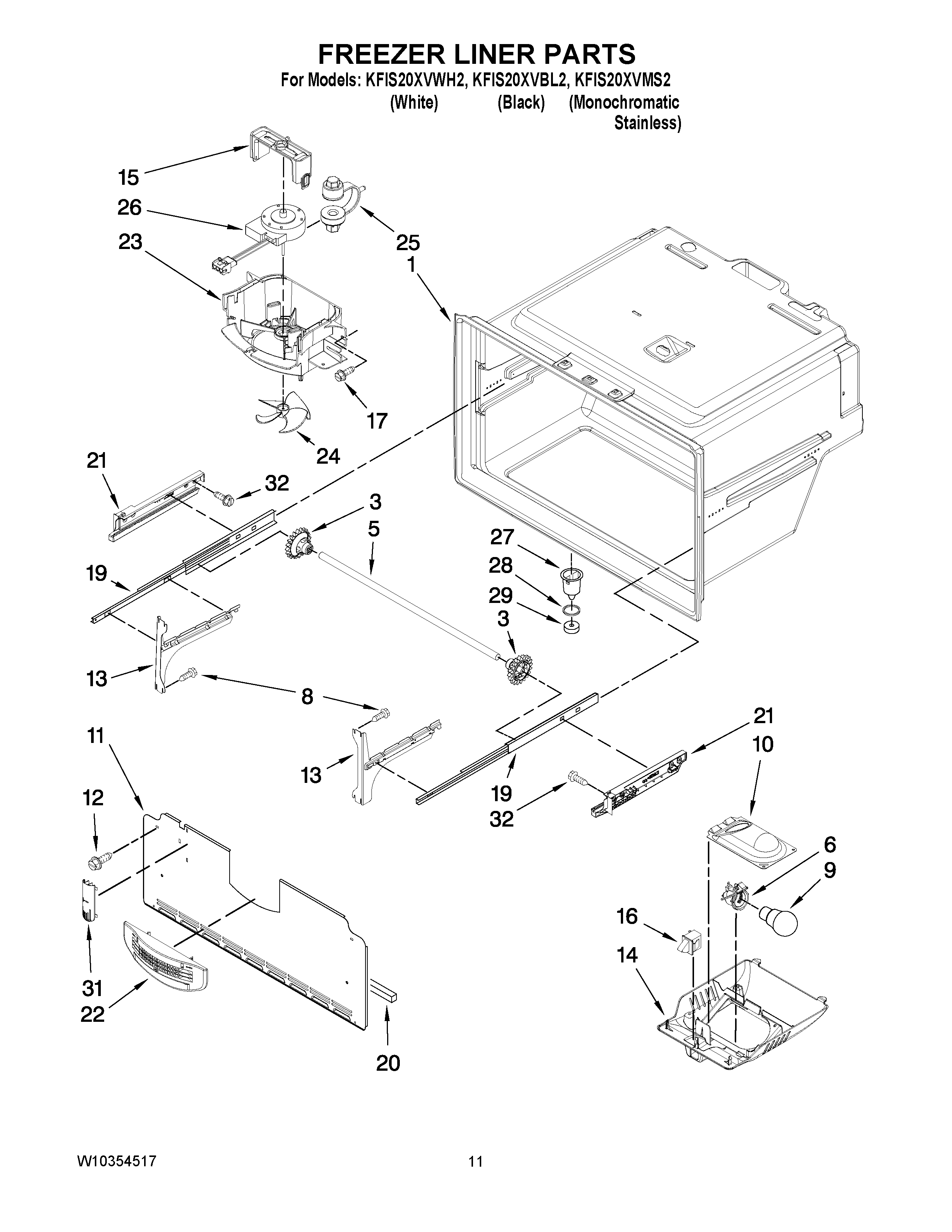

KFIS20XVBL2 06 – FREEZER LINER PARTS

KFIS20XVBL2 06 – FREEZER LINER PARTS

Written by

in

KFIS20XVBL2 06 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
312002497 Whirlpool Refrigerator Drawer Gear Kit
5W11028221 Whirlpool Refrigerator Shaft
6W11447232 Whirlpool Refrigerator Socket
9RANGE ONLY 40W 120V APPL BULB
10W11702858 Whirlpool Housing
11W10308421 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13WPW10330994 Whirlpool Refrigerator Bracket
13WPW10330991 Whirlpool Refrigerator Bracket
14MODULE, FREEZER LIGHT
15W11712696 Whirlpool Clip
16W11445850 Whirlpool Door Switch
17WP98165 Whirlpool Screw
19W11658403 Whirlpool Slide
20W11451451 Whirlpool Refrigerator Gasket
21W10858097 Whirlpool Refrigerator Bracket
21W10857648 Whirlpool Refrigerator Bracket
22W11176847 Whirlpool Refrigerator Grille
23W11700329 Whirlpool Evaporator Shroud
24WP67006337 Whirlpool Refrigerator Fan Blade
25W11676465 Whirlpool Grommet
26W10850438 Whirlpool Refrigerator Evaporator Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
31WP67003924 Whirlpool Refrigerator Cover
32WP489474 Whirlpool Refrigerator Screw
