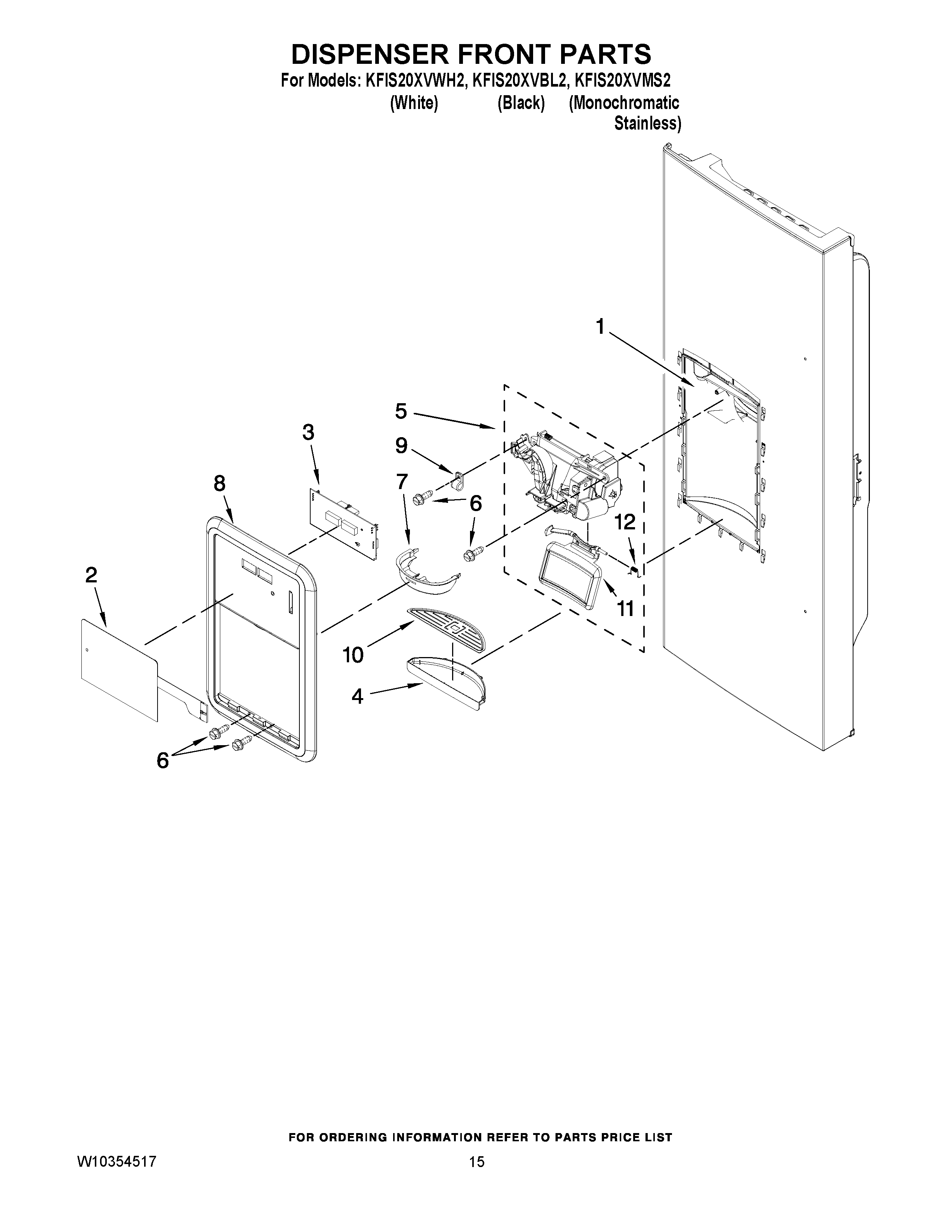

KFIS20XVBL2 08 – DISPENSER FRONT PARTS

KFIS20XVBL2 08 – DISPENSER FRONT PARTS

Written by

in

KFIS20XVBL2 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Dispenser Keyboard
3Board, L.V.
4Sump, Dispenser (Stainless)
4Sump, Dispenser (White)
4Sump, Dispenser (Black)
5WP13005705 Whirlpool Refrigerator Chute
5WP13005703W Whirlpool Refrigerator Chute
5WP13005703B Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8FACADE, DISPENSER (APOLLO GREY)
8Facade, Dispenser (White)
8Facade, Dispenser (Black)
9M0108106 Whirlpool Refrigerator Clamp
10Grille, Sump
11W10170832 Whirlpool Refrigerator Pad
11WPW10185233 Whirlpool Refrigerator Pad
11W10170831 Whirlpool Refrigerator Pad
12WP12565502 Whirlpool Refrigerator Spring
