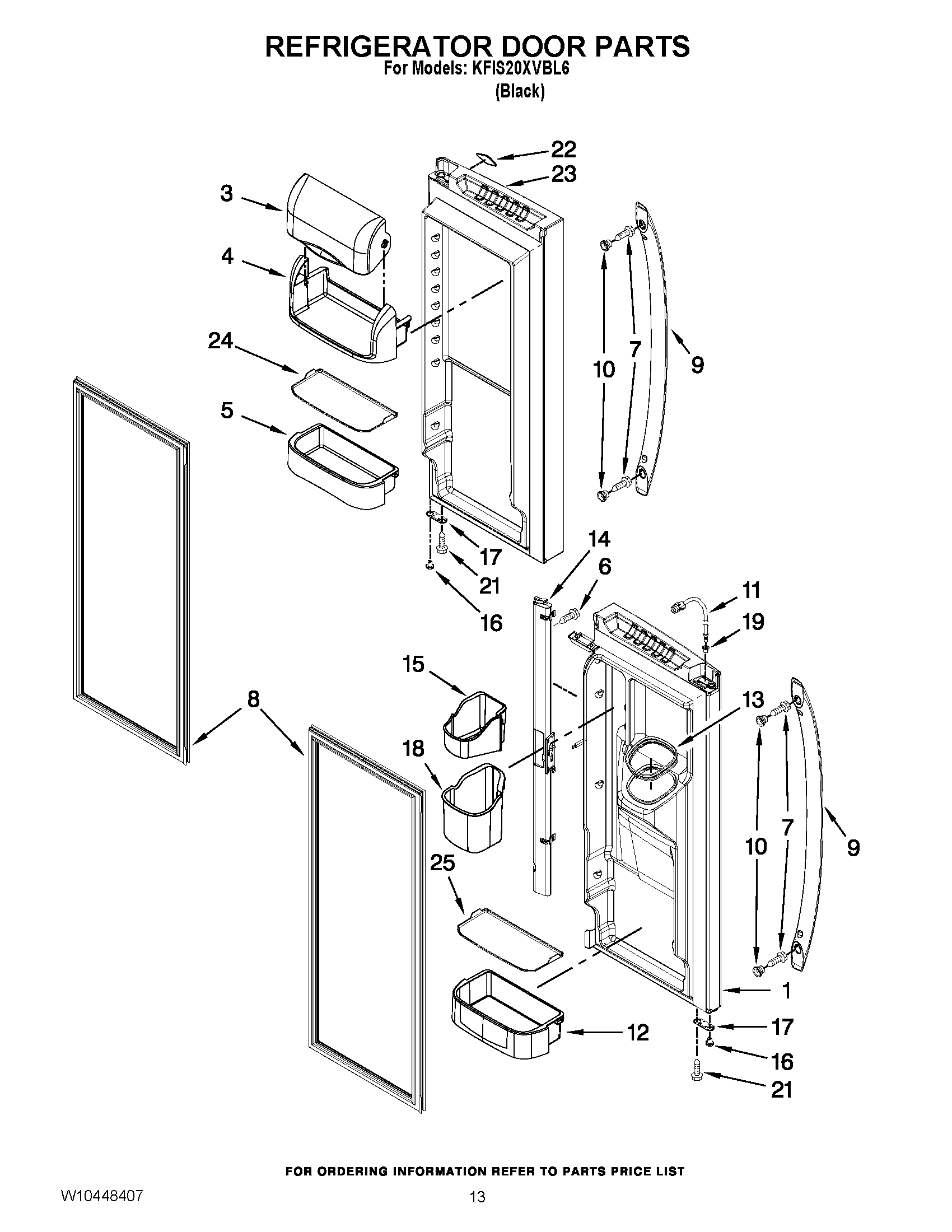

KFIS20XVBL6 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (BLACK)
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10119841 Whirlpool Cantilever Bin
6	W11311945 Whirlpool Refrigerator Screw
7	SCREW
8	W11378944 Whirlpool Door Gasket
9	HANDLE, DOOR (BLACK)
10	WP67006113 Whirlpool Stud Bolt
11	W10275942 Whirlpool Refrigerator Water Tube
12	WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
13	WPW10287601 Whirlpool Seal
14	WPW10151713 Whirlpool Refrigerator Mullion Rail
15	W10187453 Whirlpool Refrigerator Bin
16	WP67003639 Whirlpool Refrigerator Closer
17	W11708403 Whirlpool Door Stop
18	BUCKET, LOWER
19	12996601 Whirlpool Refrigerator Bushing Clip
21	WP98165 Whirlpool Screw
22	WPW10243392 Whirlpool Dishwasher Nameplate
23	DOOR, RIGHT (BLACK)
24	W11510593 Whirlpool Refrigerator Mat
25	W11510594 Whirlpool Refrigerator Mat
